PRODUCT FEATURES
1 . Improve production efficiency , achieve rapid positioning , marking multipleproducts at a time , can also carry out automatic assembly line feeding , visualpositioning and marking after positioning2 . High precision positioning and marking , the combination of marking maline and CCD vision can achieve high-precision positioning and marking inthe case of any angle , any number and any position3 . To improve the production efficiency , by cooperating with the vibrationplate , assembly line , XY platform and other parts , the unmanned and automatic production can be realized , and the product quality can be greatly im -proved
APPLICABLE MATERIALS

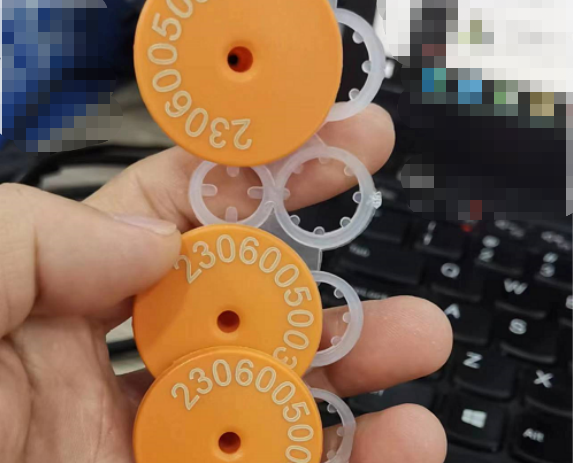

It is mainly applicable to the marking of small or extremely small items withheavy workload , difficult feeding and positioning , diversity and complexity ofworkpieces , such as IC , small screw , resistance , etc .

+86 17340532339

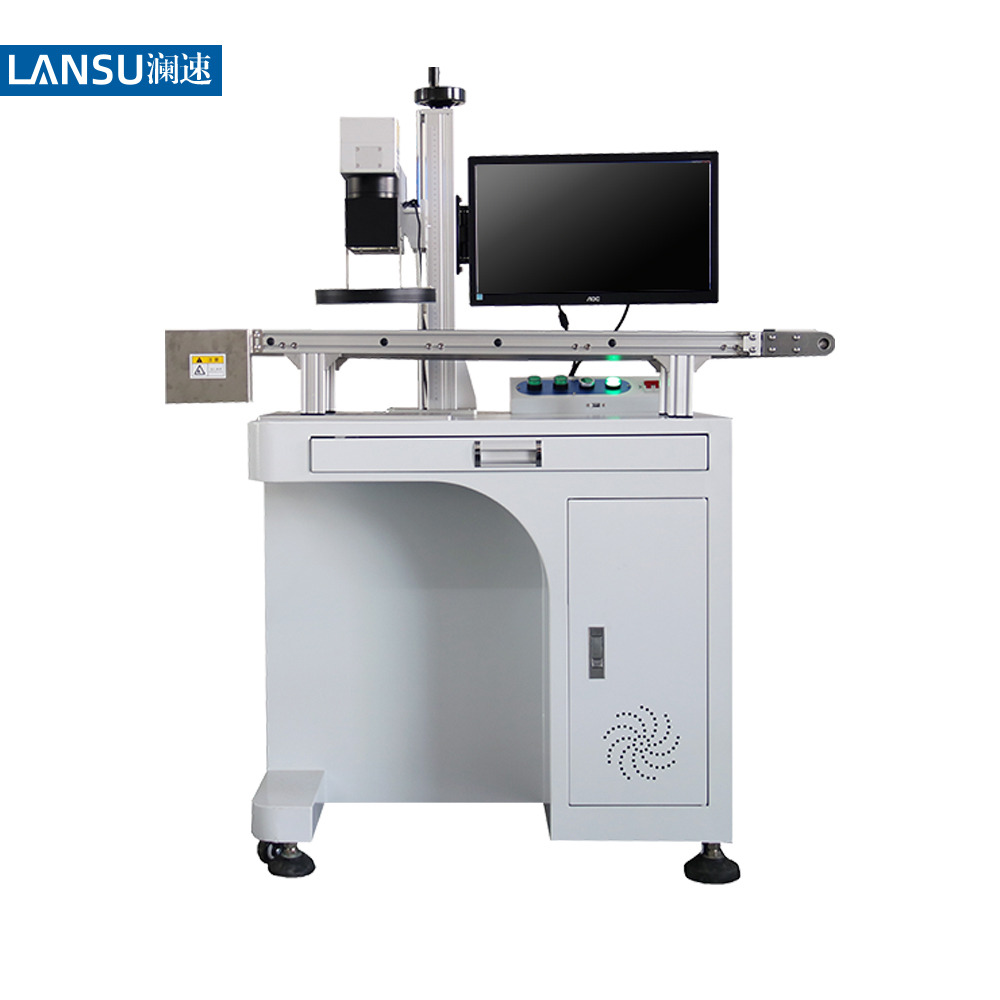

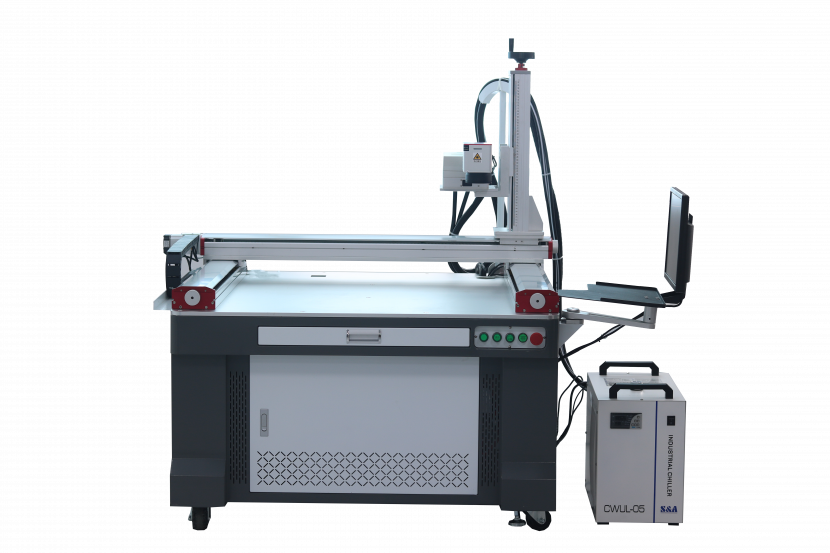

PRODUCT DETAILS

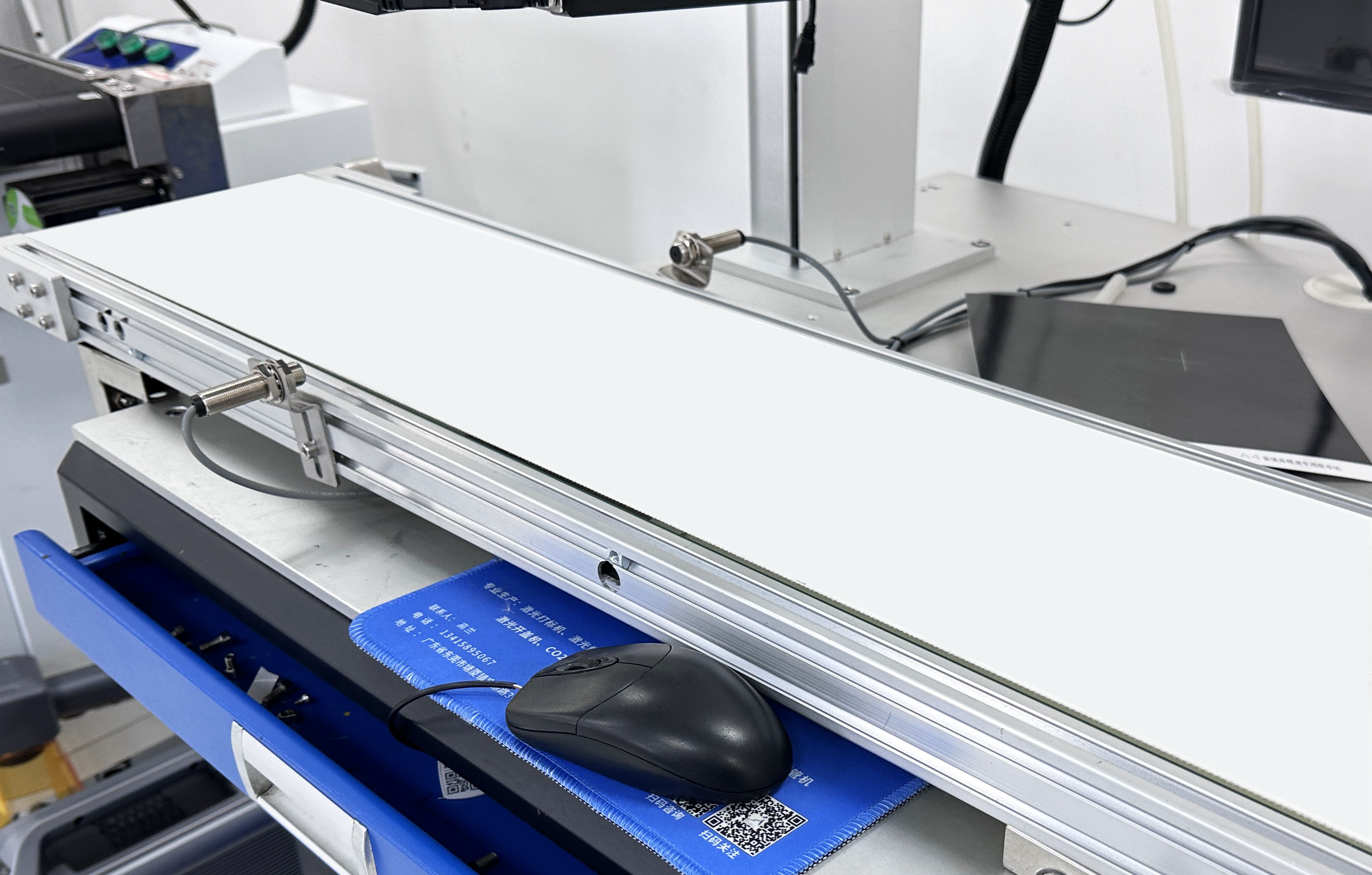

assembly line

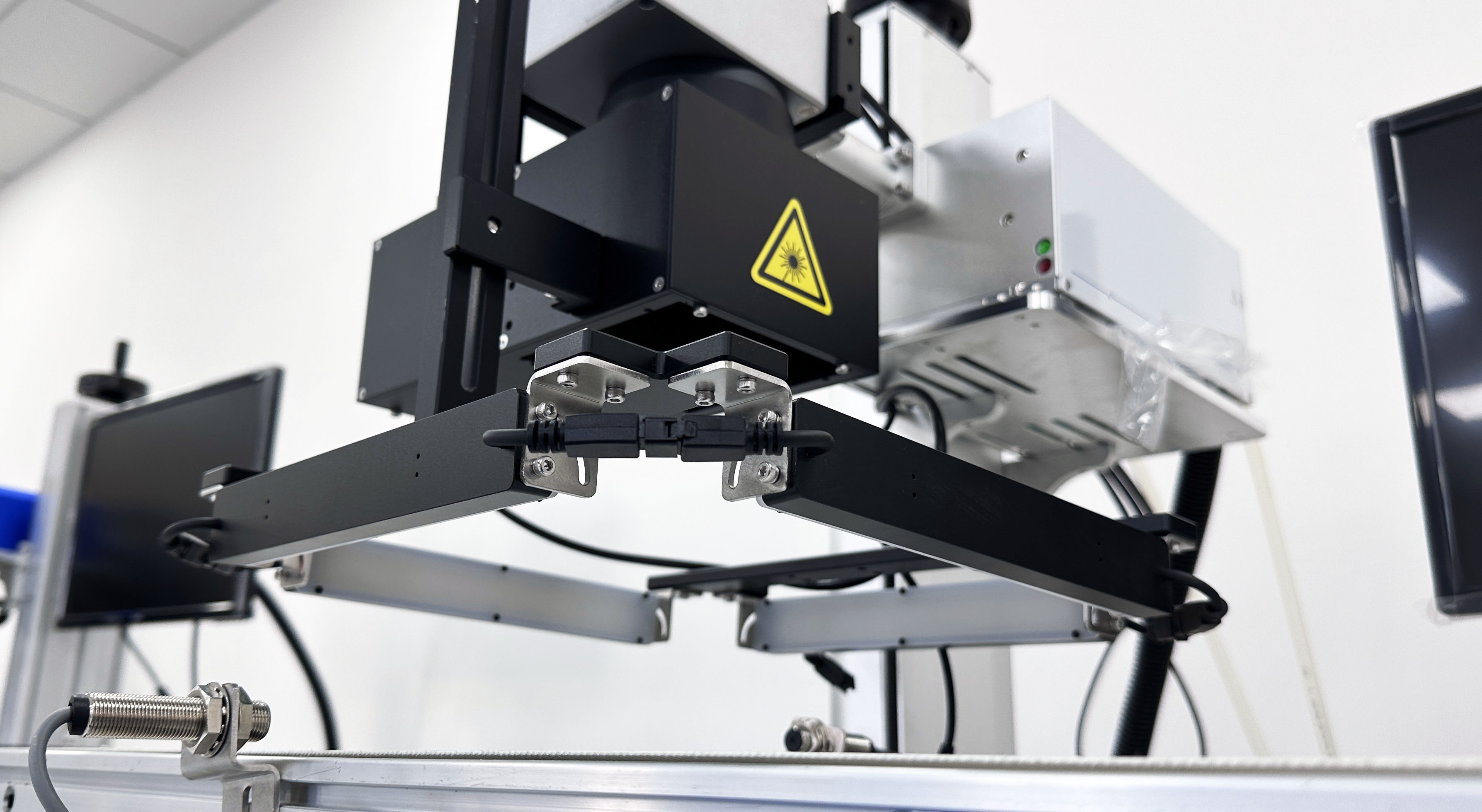

Visual lens

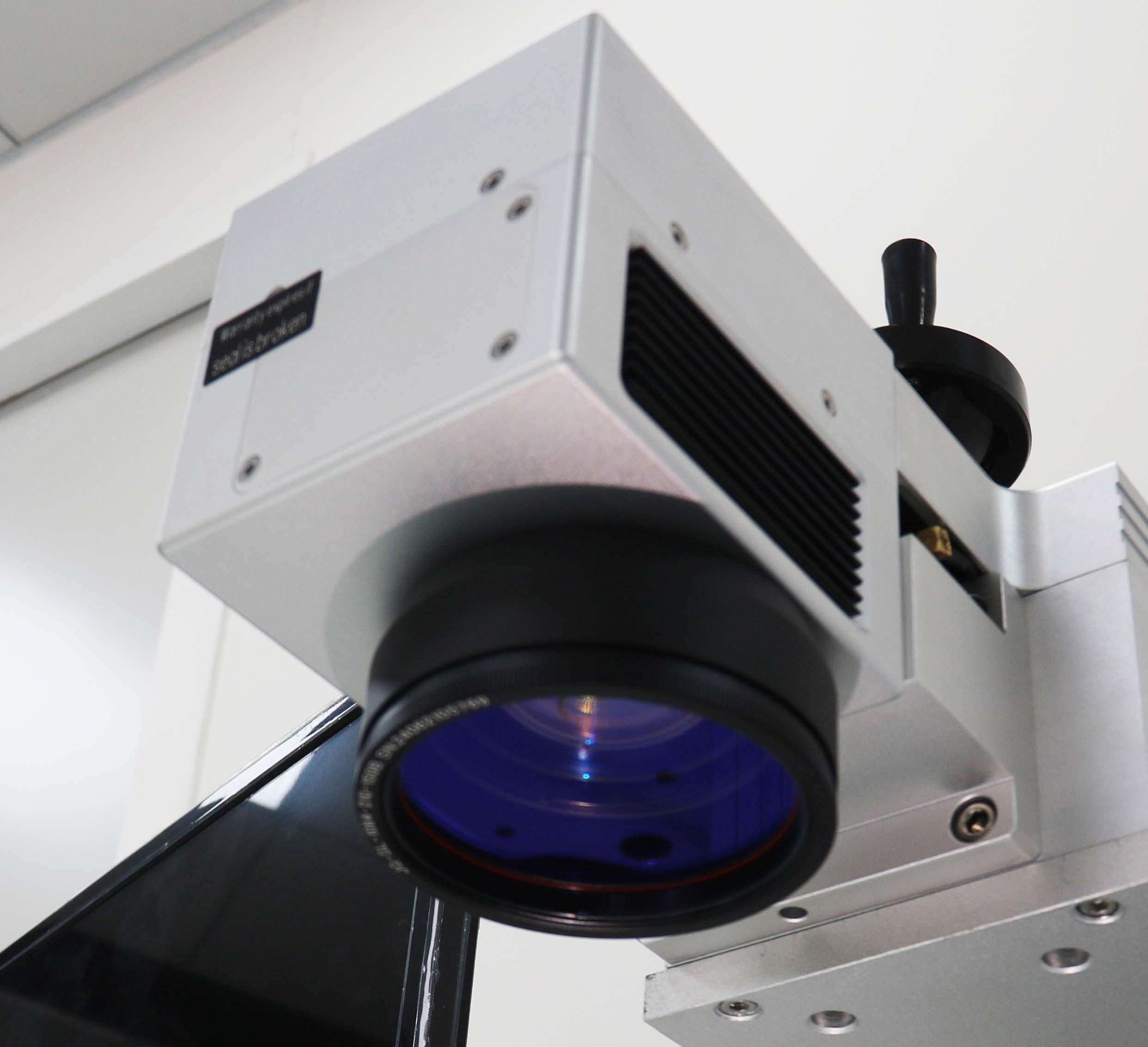

Field lens

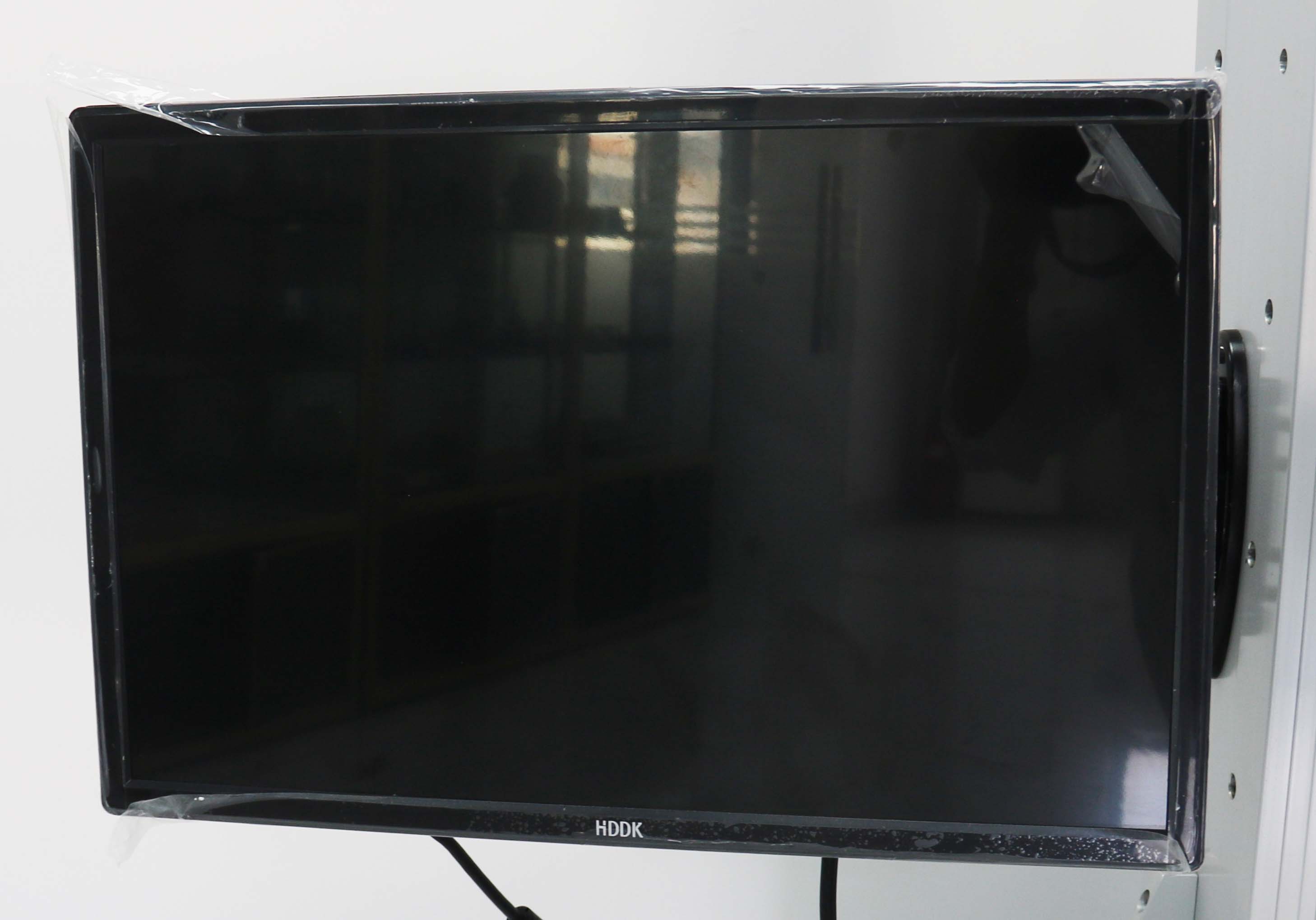

Industrial Computer

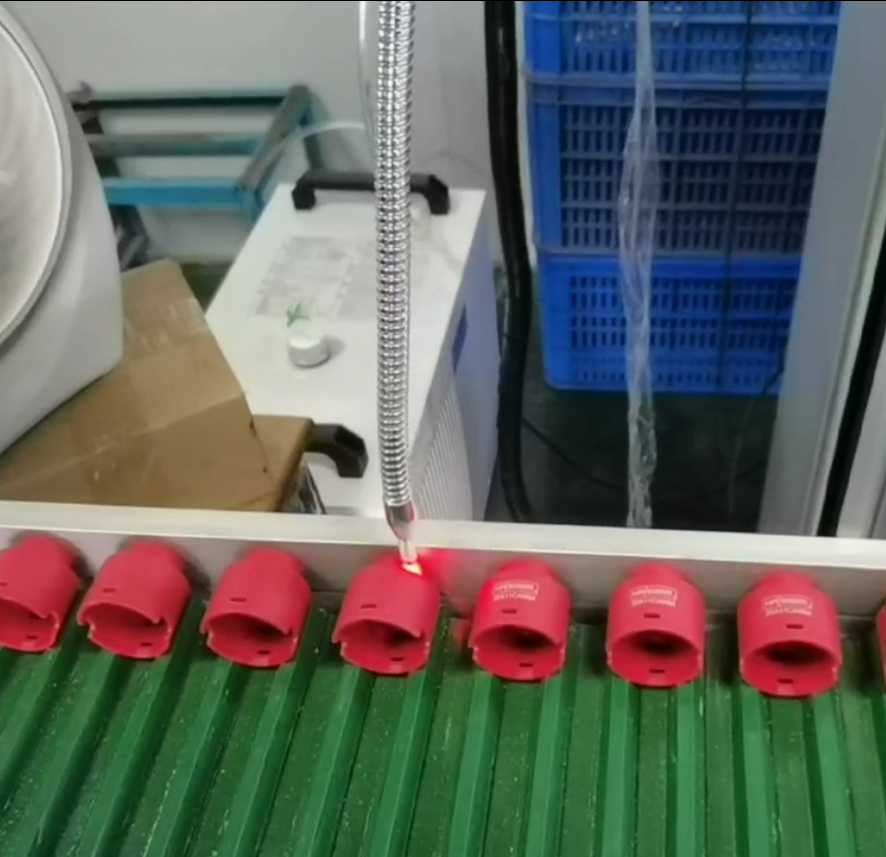

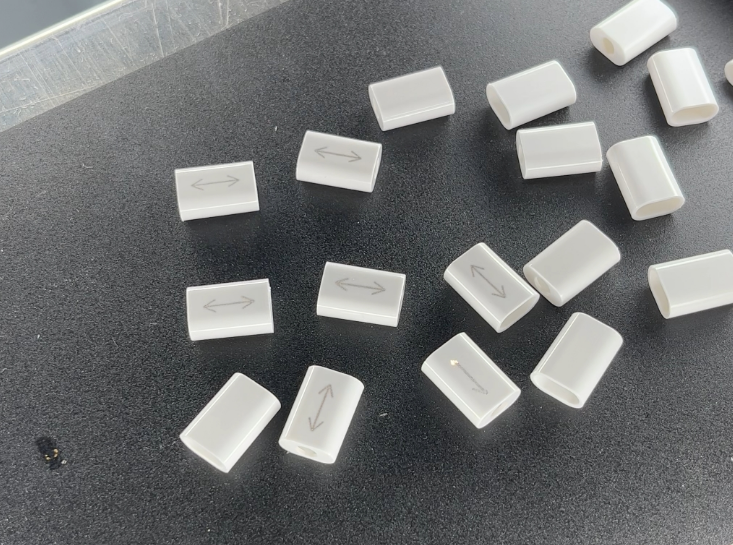

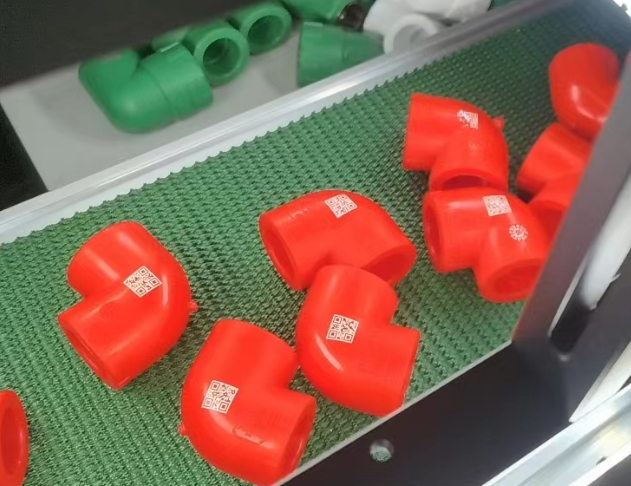

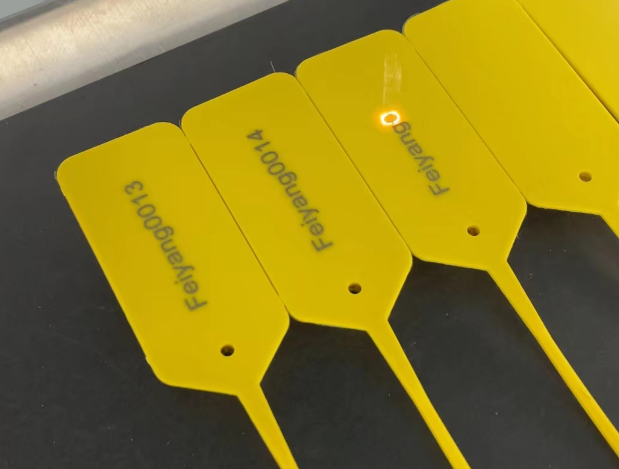

PRODUCT APPLICATION

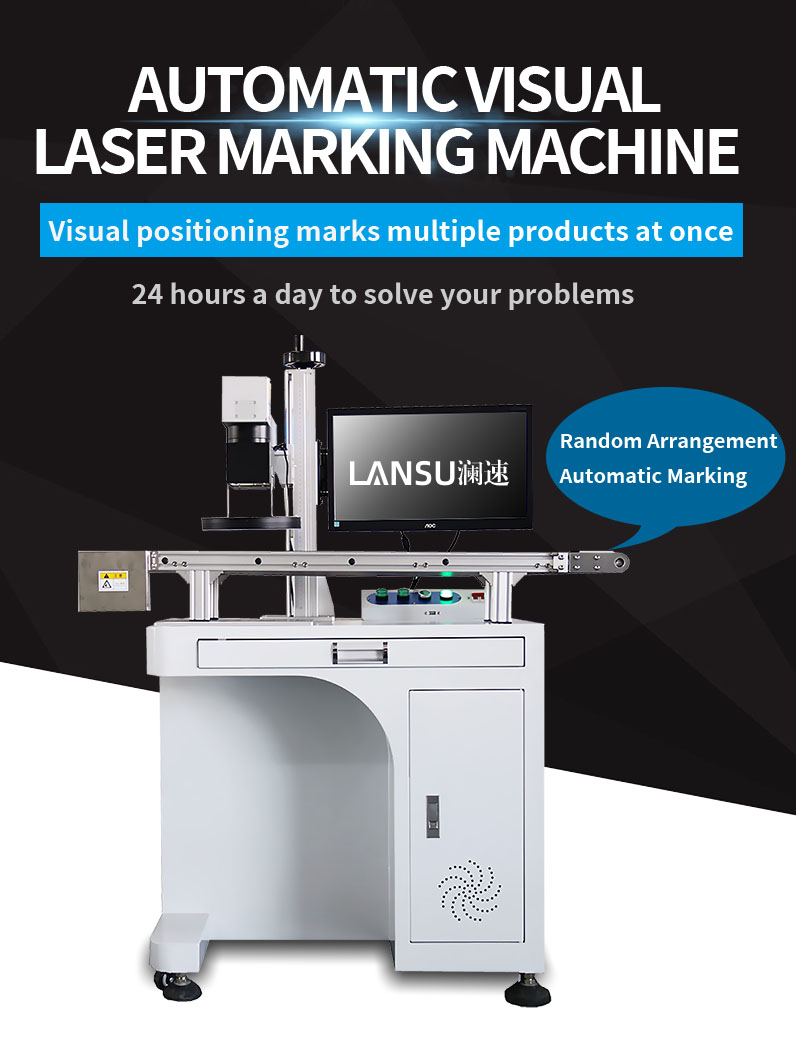

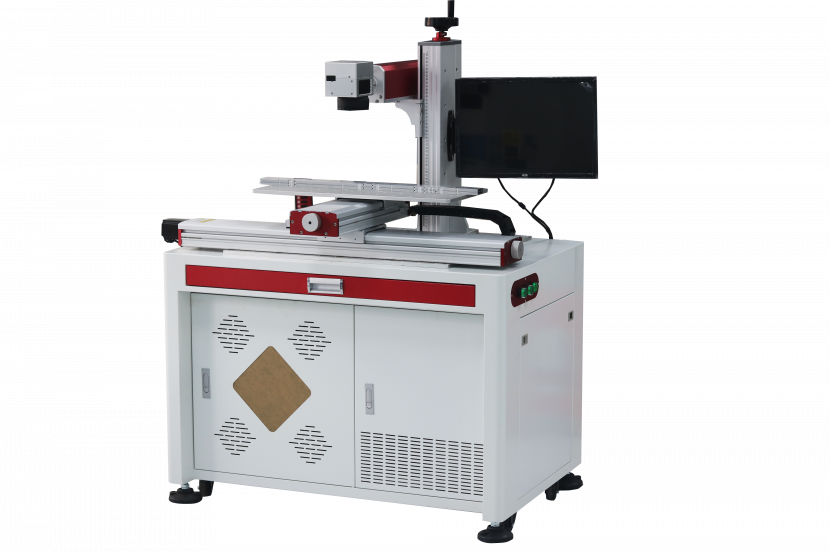

The visual laser marking machine is an upgraded version of the laser marking machine. The visual system can be compatible with any type of laser marking machine and can be engraved on any material. It can greatly improve production efficiency and reduce the labor cost of the enterprise.
PRODUCT CUSTOMIZATION OPTIONS/GIVEAWAYS
Giveaways

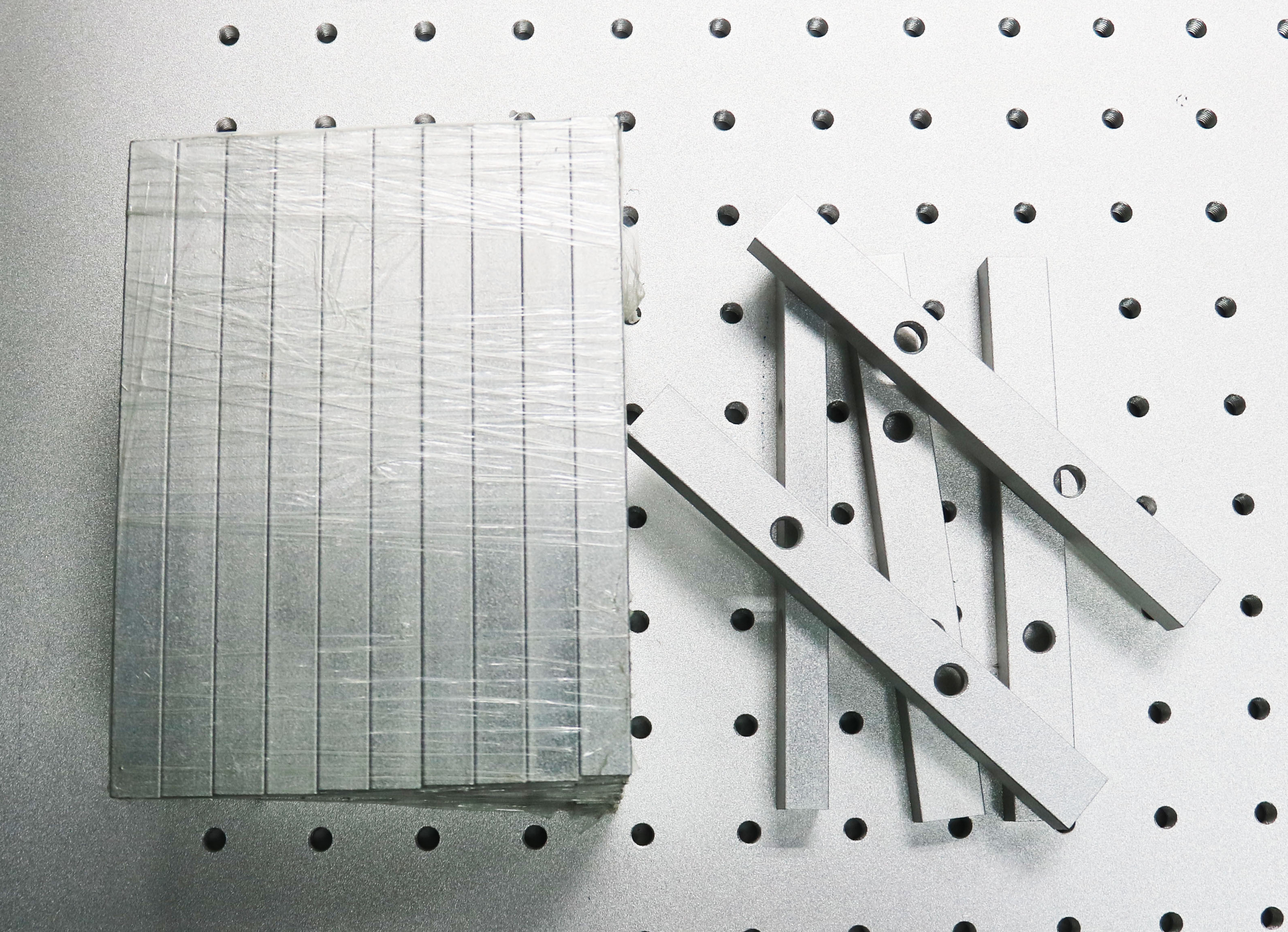

Fixing fixture
Fixing fixture

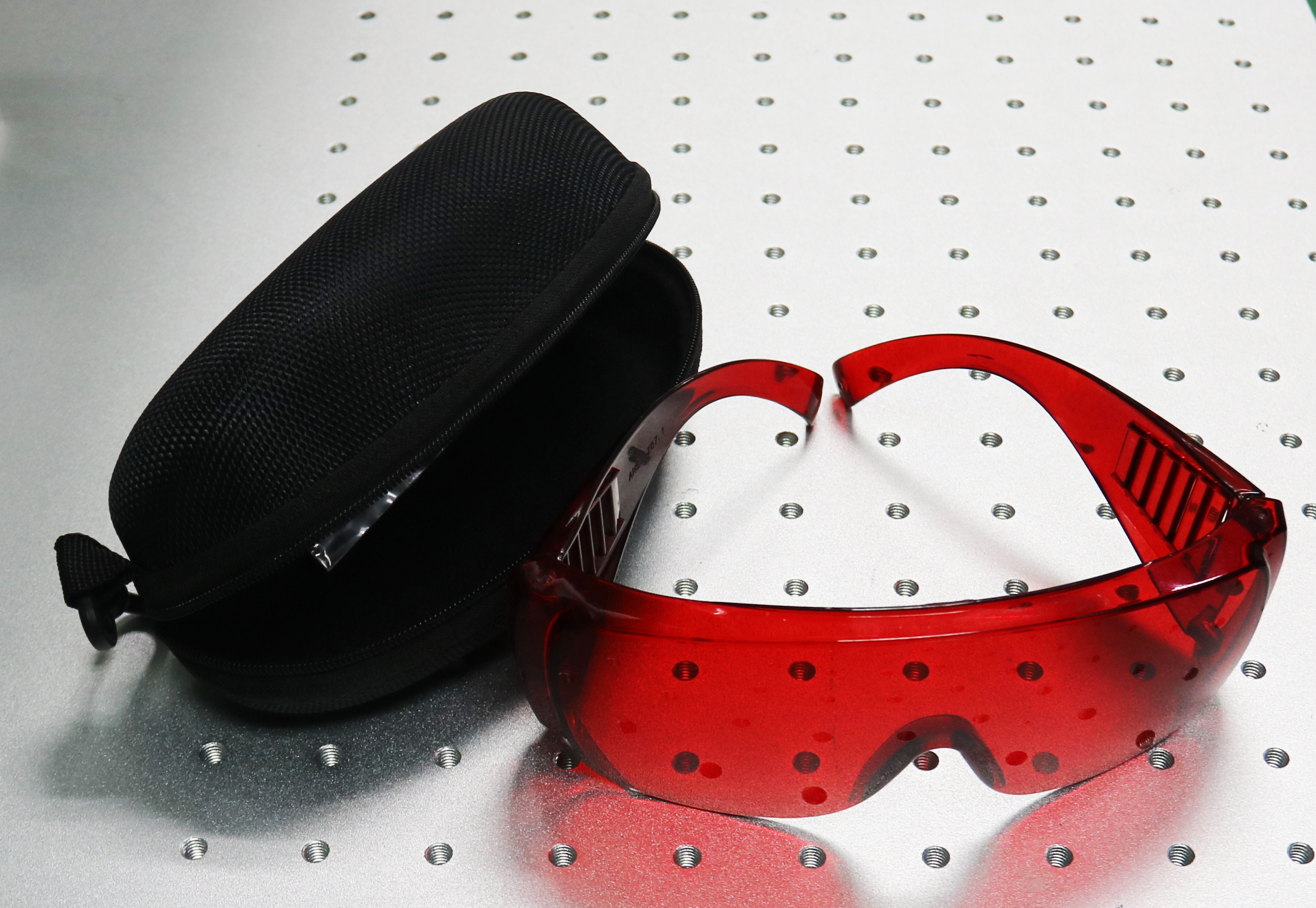

Goggles
Goggles

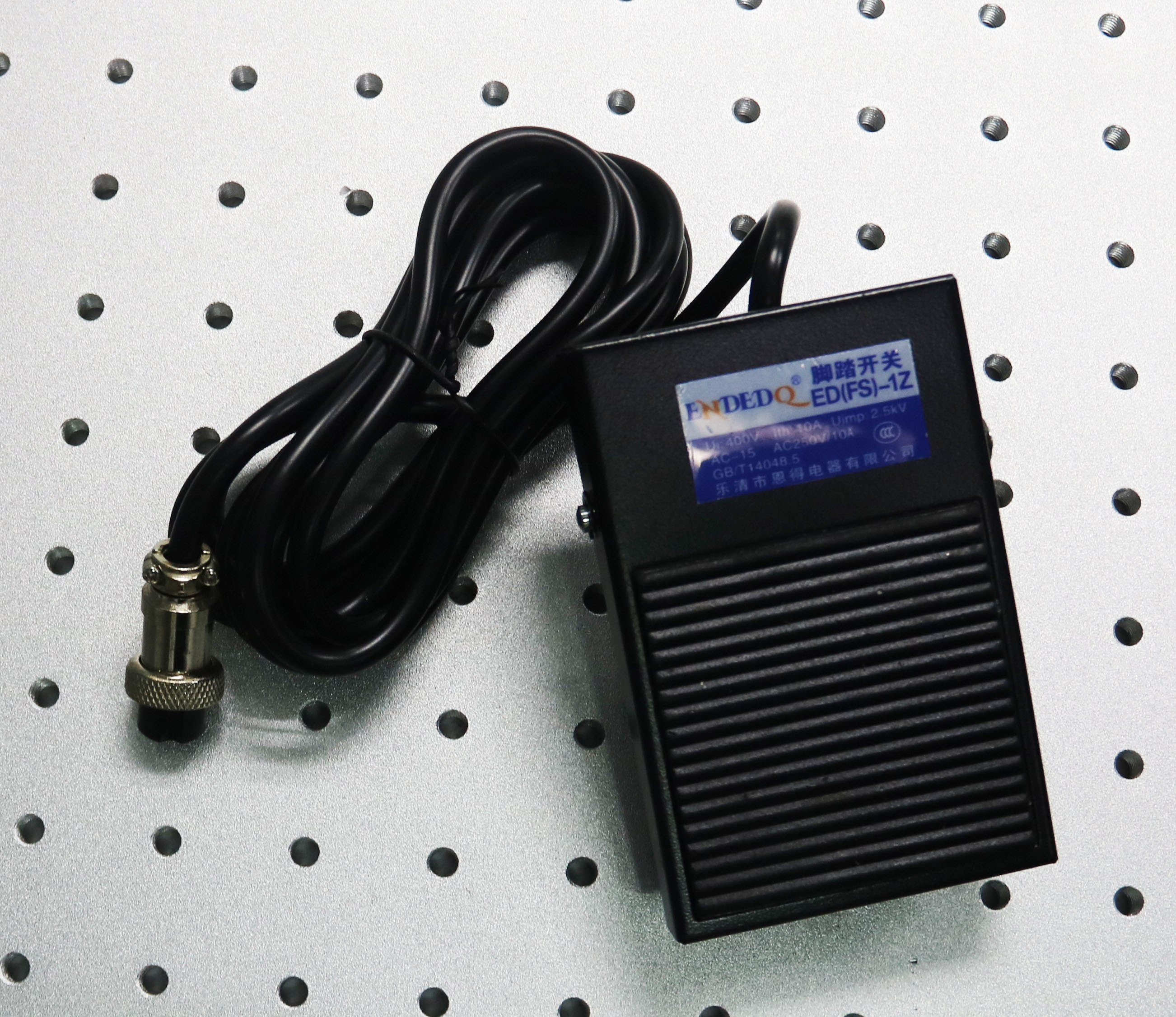

Pedals
Pedals

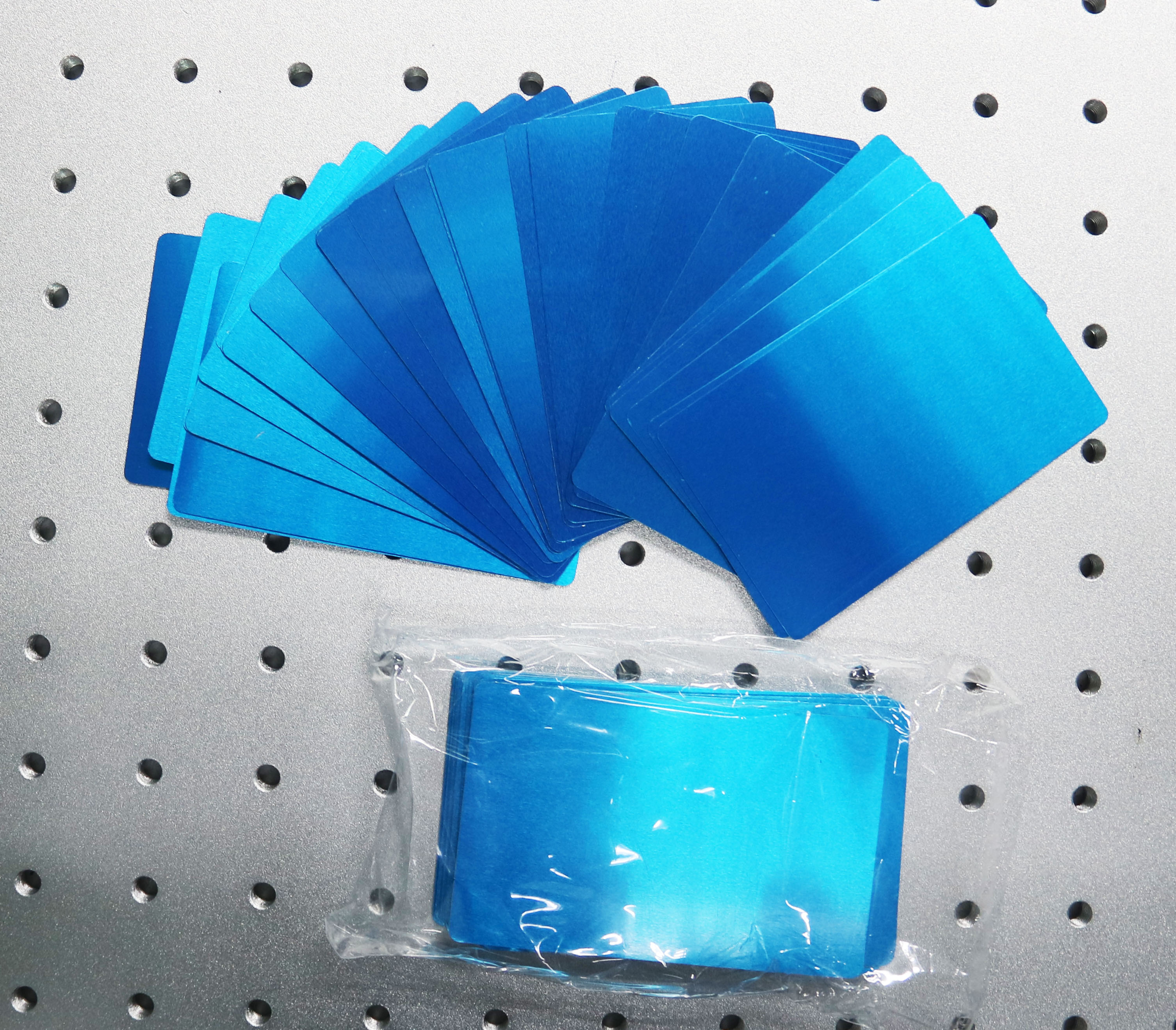

Test Card
Test Card
TECHNICAL PARAMETER
modelLS-SJ-3/-5/10/20 / 30 / 50 / 60 / 80 / 100 / 120 / 150 /200 / 300W
laser power3/5/10/20 / 30 / 50 / 60 / 80 / 100 / 120 / 150 /200 / 300W
laser wavelength1064nm
frequency range10-100KHZ
Pulse width range200ns
Marking speed< 7000mm / s
Minimum line width0 . 02mm
Minimum character0 . 05mm
Repeatability±0.1μm
Marking rangeI150mmx150mm ( optional )
Cooling modeAir coolingI
Working power supplyAC220V / 50HZ
Visual capture time≤0.2s
accuracy±0.02mm
yield4000-10000 piece / h
COMPANY STRENGTH
工厂图

Lansu laser is a enterprise works on produce andsell for laser marking machine.


Lansu laser own independent R&D departmentwhich offer varous technical support for our customer via our technical manuals, product  videosand livestream


Lansu laser's advantages: high quality equip-ments, professional technical support, quickly shipping and good after sales service. We offer trainingvia our technical manuals and livestream.


Lansu laser welcome all of our customers tobecome one of us or our distributor.

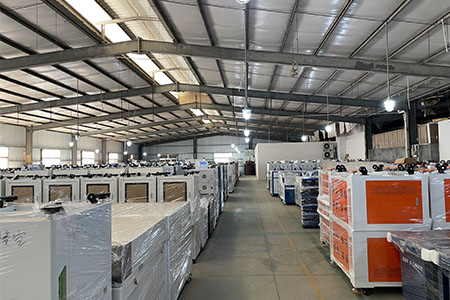

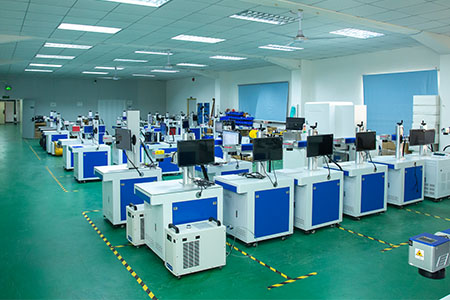

FACTORY DISPLAY
