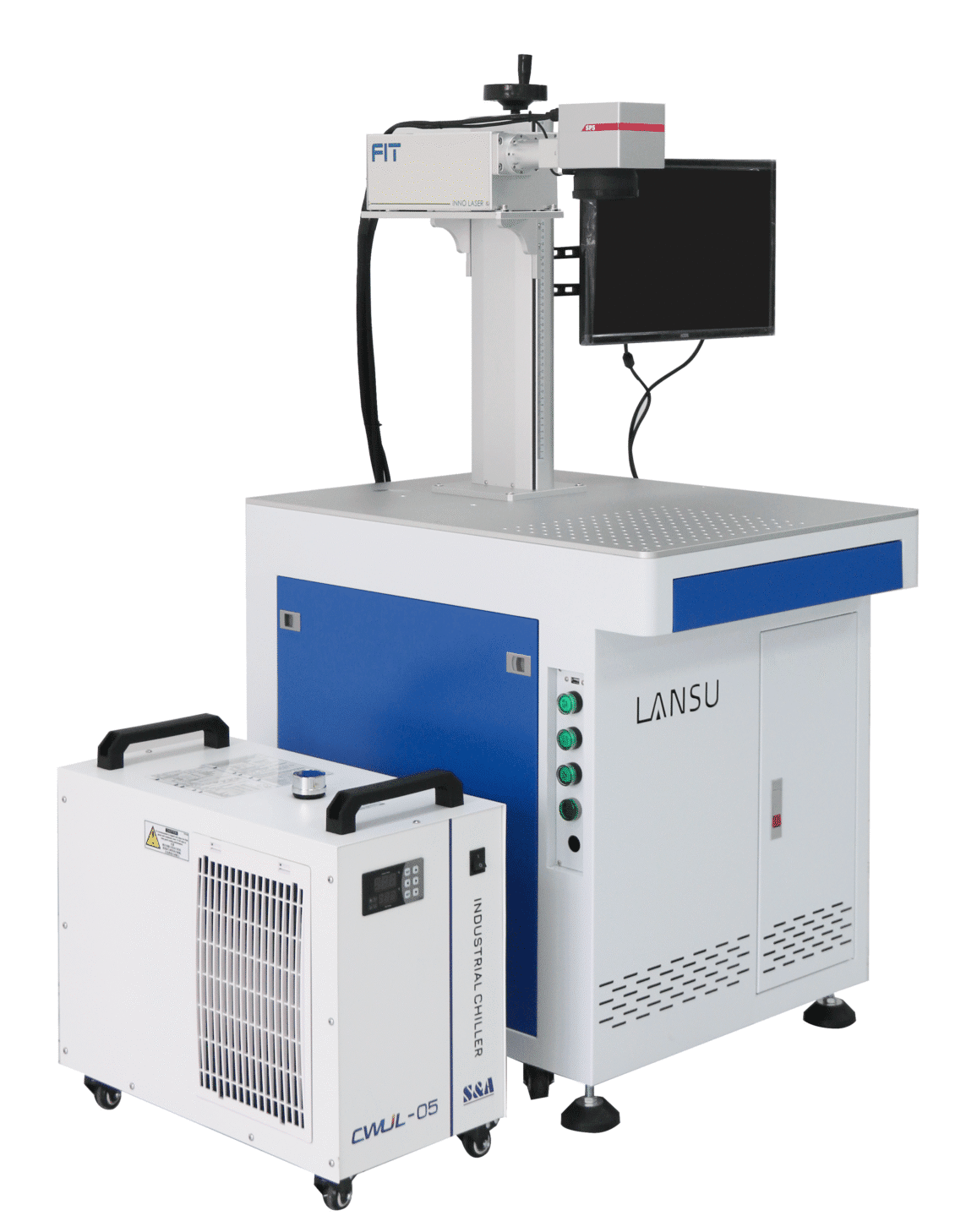

UV laser marking machine
355 nm “cold-light” processing | 3 W – 15 W power grades | 0.02 mm micro-line capability
UV laser marking machine
355 nm “cold-light” processing | 3 W – 15 W power grades | 0.02 mm micro-line capability
其他信息
| Power | 5w, 10w, 15w, 20w |
|---|
1 Product Snapshot
Designed for materials that deform or yellow under heat, this UV laser marker delivers sub-surface “cold” ablation. The 355 nm beam cleaves molecular bonds instead of melting the surface, so medical plastics, glass vials, FPC circuits and anodised metals emerge clean, burr-free and crack-free. A sealed water-cooled optical path plus optional fume extraction keeps the work zone contamination-free, making the machine production-ready for Class II medical and electronics environments.
2. Stand-Out Benefits
| Function | What it means for you |
|---|---|
| Ultra-fine detail | 0.02 mm line width / 0.2 mm characters—ideal for dense QR & UDI codes |
| Precision repeatability | Working accuracy ±0.001 mm, repeatability ±0.1 µm—batch data stays razor-sharp |
| Flexible power choices | Factory-configured 3 W, 5 W, 10 W, or 15 W heads match thin films, polymers, or coated metals |
| Fast process speed | Marking velocity ≤ 7 000 mm s⁻¹ keeps pace with high-volume packaging lines |
| Large or small fields | Standard 110 × 110 mm; optional dynamic focusing to 300 × 300 mm without losing clarity |
| EZCAD ecosystem | Imports AI, DXF, BMP, DWG and manages variable text, shift codes & serialisation in one click |
3. Technical Data
| Parameter | Value |
|---|---|
| Laser wavelength | 355 nm UV |
| Output power | 3 / 5 / 10 / 15 W (select on order) |
| Frequency range | 10 – 100 kHz |
| Pulse width | 13 – 80 ns |
| Beam diameter | 0.8 mm |
| Min. line / char | 0.02 mm / 0.2 mm |
| Max. marking speed | ≤ 7 000 mm s⁻¹ |
| Accuracy / repeatability | ±0.001 mm / ±0.1 µm |
| Standard work area | 110 × 110 mm (up to 300 × 300 mm optional) |
| Cooling | Closed-loop water chiller |
| Machine size / weight | 780 × 950 × 1 180 mm / ≈ 156 kg |
| Power supply | AC 220 V ± 10 % 50 Hz < 1.2 kW |
4. Target Applications
-

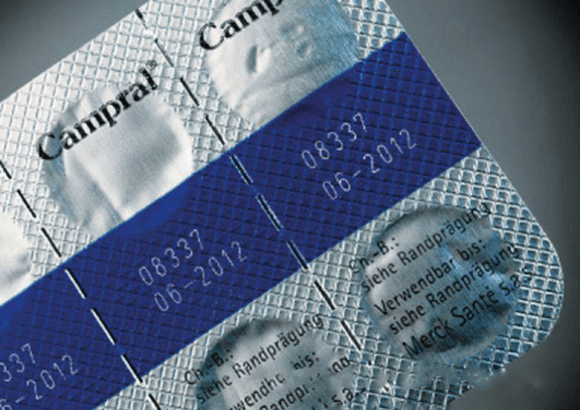

Medical & pharmaceutical packaging – syringes, IV sets, blister foils
-
Glassware – vials, perfume flasks, tempered phone glass, LED light guides
-
Electronics – FPC/PCB trace codes, IC and connector housings
-

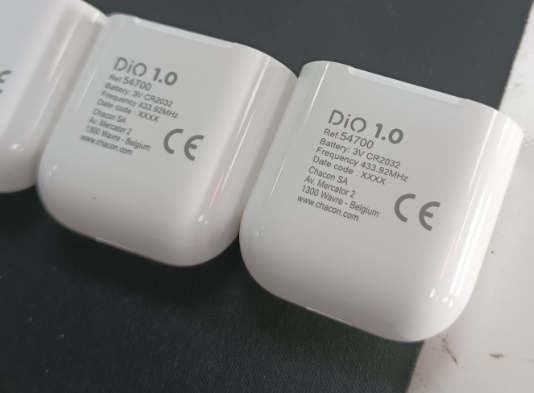

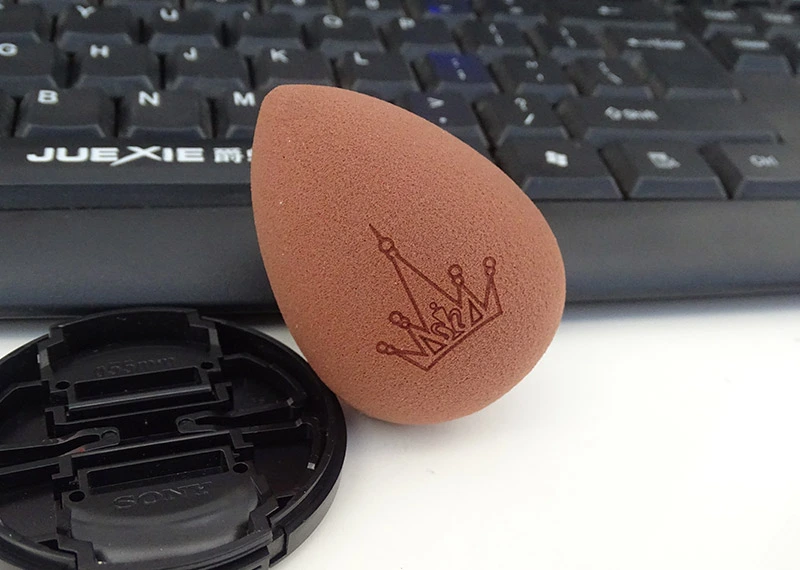

Consumer goods – cosmetic caps, charger cases, ear-bud shells
-
Precision metals – surgical tools, titanium implants, anodised tags
5. Optional Add-Ons
-
3-axis dynamic focus head for deep or curved surfaces
-
Rotary module for syringes, pens, and other cylindrical parts
-
CCD vision alignment with code verification & automatic reject chute
-
Class-1 safety enclosure + HEPA fume filter for clean-room integration
-
MES/ERP gateway—real-time lot, operator, and UDI data upload
6. Why This UV Marker?
-
True cold engraving—zero carbonisation on plastics, no micro-cracks in glass
-
Medical-grade fidelity—±0.001 mm accuracy supports micro-logos & expiry dates
-
Rapid implementation—EZCAD templates, multilingual HMI, one-button autofocus
-
Reliable throughput—water-cooled optics, sealed beam path, and 24 h duty design backed by online diagnostics and one-year warranty
