Spare parts costs for a CCD laser marking machine can quietly drain profit. I’ve seen buyers ignore them until a failed lens stopped production. Our Dongguan factory calculates them upfront.

To calculate spare parts costs for a CCD laser marking machine, list every wearable part with its unit price, divide each replacement cost by its expected life in hours, sum these hourly reserves, then add logistics, customs clearance, and a standby fund for emergency after-sales spares.

That is the short answer. The full method has five steps we use with every export customer: record all wearable part prices, convert them to annual wear cost by usage hours, price spares in batches, include freight and clearance fees ¹, and hold a reserve fund. This article walks through each step, so you can [build your own total cost of ownership model](https://lansulaser.com/what-total-cost-ownership-ccd-laser-marking-machine/) in a simple spreadsheet.

Which spare parts do I need to budget for when maintaining a CCD laser marking machine?

During a service call last year, our engineers found a customer running with a cracked protective window for weeks. That visit shaped how we build every consumable parts list today.

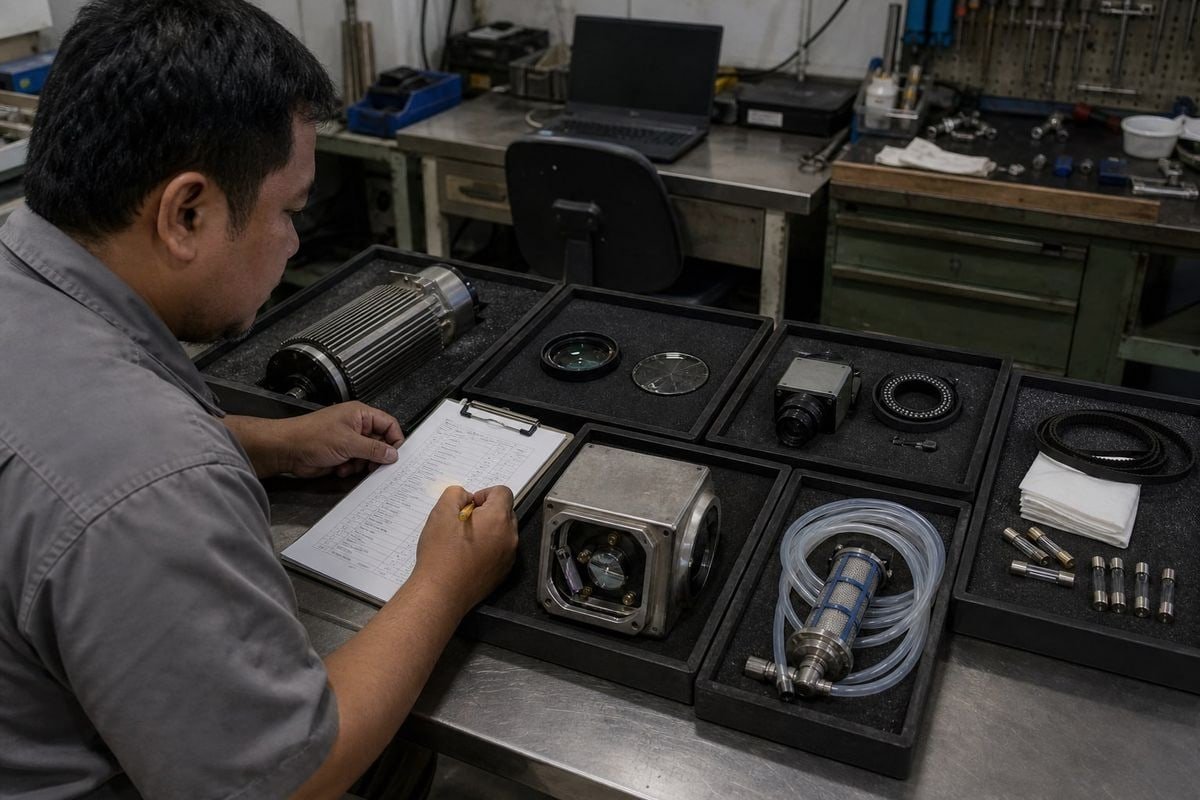

Budget for six spare part groups: laser source wear items, optics such as the f-theta field lens and protective windows, the CCD camera and lighting, galvo scanner head components, cooling and filtration parts, plus small consumables like belts, fans, and cleaning supplies.

The first step in our five-step method is simple: write down every wearable part and its unit price. Nothing gets amortized correctly if the list is incomplete. Most buyers remember the laser source. Far fewer remember the visual positioning system ², which is exactly what makes a CCD machine different from a standard marker.

Use a three-tier inventory system

We recommend sorting your consumable parts list into three tiers. This mirrors how our own warehouse in Dongguan stocks after-sales parts for customers in the UK, Italy, the USA, and Southeast Asia.

Do not forget the CCD subsystem

The visual positioning system adds its own line items. The industrial camera ³, its lens, the lighting module, and calibration targets all wear or drift over time. LED ring lights lose lumen intensity gradually. Once brightness drops below the recognition threshold, the CCD fails to locate parts, and the lighting module needs replacement, typically every two to three years.

Support parts matter too

The industrial water chiller is a classic blind spot. Deionized water, particulate filters, and pump seals are cheap individually, but skipping them can burn out a laser module worth thousands. Some cost tools group these consumables at 3–8% of total operating cost, which matches what we see in our own service records. Add a small buffer line for grease, fans, and minor hardware, and your list is complete.

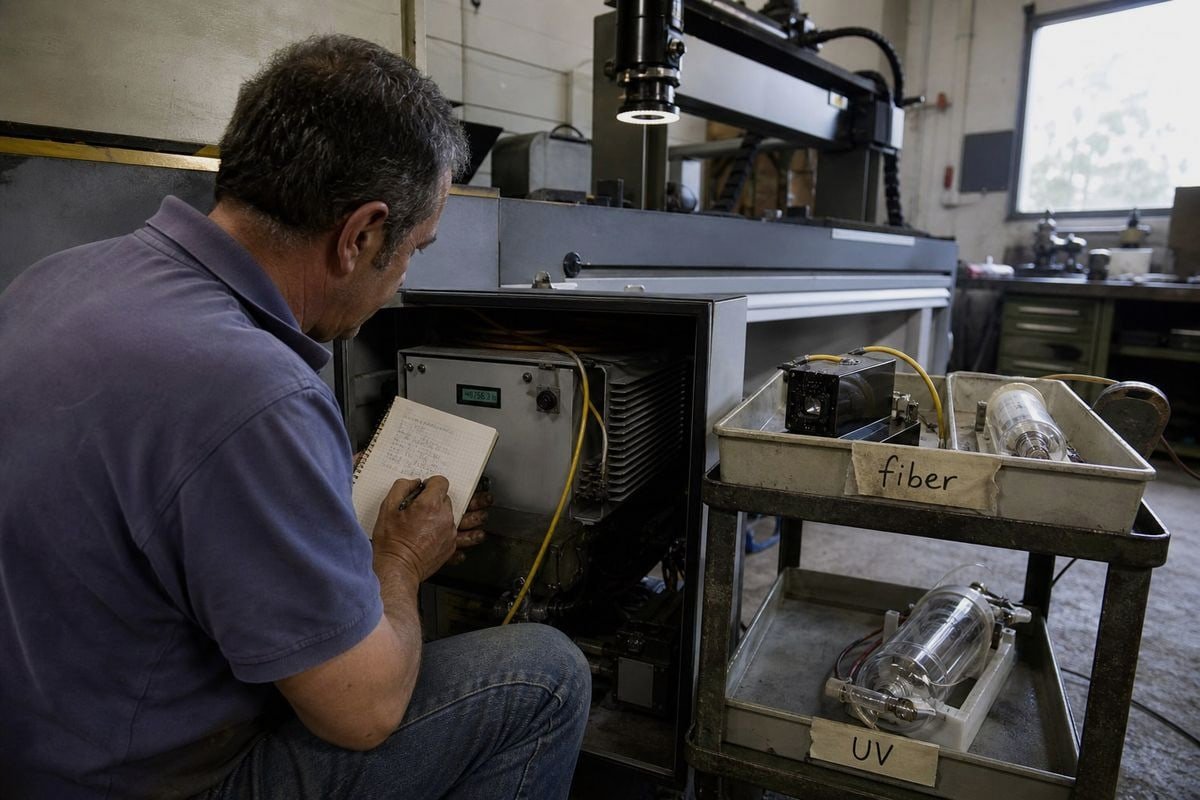

How do I estimate the replacement lifespan of key components like the laser source and CCD camera?

Every quote we prepare involves a trade-off. A UV source marks plastics beautifully, yet it wears out years before a fiber source. Lifespan estimates decide the real budget.

Estimate lifespan by dividing each part's rated hours by your actual duty cycle. Fiber laser sources last around 100,000 hours, UV sources 12,000–15,000 hours, LED ring lights two to three years, and deionized water needs changing every three to six months.

This is step two of our method: convert every part into an annual wear cost based on real usage hours. The math is friendly. Take the replacement price, divide by expected life, and you get an hourly reserve. For example, a $10,000 fiber source rated at 100,000 hours costs $0.10 per operating hour. Run the machine 2,000 hours
