Verifying CCD laser marking machine packaging before shipment 1 saves buyers real money. I have seen crates from our Dongguan factory travel to Italy, the USA, and the UAE, and packaging quality decides everything.
To verify CCD laser marking machine packaging meets shipping standards, request ISPM 15 wood-treatment proof, an ISTA or ASTM D3951 packaging reference, drop and vibration test records, moisture-protection evidence, and 360-degree pre-shipment photos showing the machine bolted down with all moving parts locked.
That is the short answer. Below, I break each step into simple checks you can run yourself, even if you never visit the factory.
What Certifications Should I Ask My Supplier to Prove Their Packaging Meets International Shipping Standards?
A buyer from Turkey once asked me for our "packaging certificate," and I realized most suppliers only send a vague promise. In our export team, we prepare a full document pack instead.
Ask your supplier for ISPM 15 heat-treatment proof with the IPPC stamp, a declared packaging standard such as ISTA or ASTM D3951, internal drop and vibration test records, a detailed packing list, and crate dimensions with gross weight documented before shipment.
There is no single universal "shipping standard." Real compliance combines three layers: packaging performance, export wood rules, and carrier handling requirements. When we prepare a shipment from our production line, we always confirm which standard the crate design references. My own rule, learned over years of exporting to seventeen countries, is simple: ask the supplier directly whether they follow ISTA-style transport packaging test standards. If they cannot name any standard, that is a warning sign.
The Documents That Actually Matter
Vague wording like "safe package" or "standard export package" proves nothing. You need named references and physical evidence. Here is how I explain the document hierarchy to our buyers:
| Document | What It Proves | Red Flag If Missing |
|---|---|---|
| ISPM 15 / IPPC mark evidence | Wood is heat-treated for international shipping regulations | Customs can reject or fumigate the crate |
| ISTA or ASTM D3951 reference | Packaging performance was designed, not guessed | Supplier is improvising the crate |
| Drop, vibration, temperature-humidity test records | The design survived shock and vibration testing | No proof the crate protects precision optics |
| Packing list matching the crate | Contents and weights are traceable | Insurance claims become harder |
| Pre-shipment photos | The real crate matches the declared spec | You are buying blind |
ISPM 15 deserves special attention. It is the key international phytosanitary standard 2 for wood packaging crossing borders. Compliant crates and pallets must carry the approved mark. I always tell buyers to request test reports covering drop, vibration, and temperature-humidity conditions, because a certificate for the wood alone says nothing about how the machine survives inside it. Freight insurance requirements also become easier to satisfy when this paperwork exists, since insurers respond faster to documented packaging than to verbal claims.

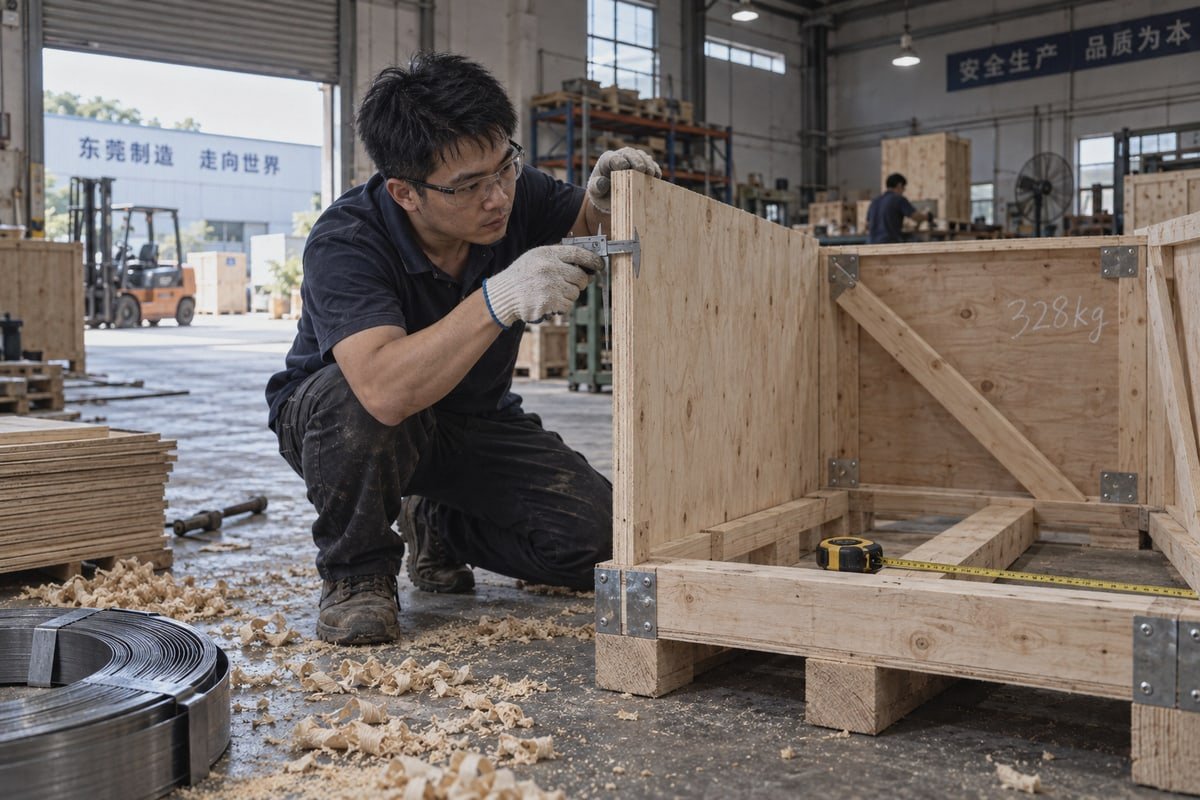

How Can I Check If the Crate Materials Are Strong Enough to Protect My CCD Laser Marking Machine During Transit?
Cost versus strength is a trade-off we weigh on every crate we build. Thicker export-grade plywood adds freight weight, but a cracked crate can destroy a laser source worth far more.
Check that the crate uses export-grade plywood of adequate thickness, a reinforced skid base rated above the machine's gross weight, internal blocking and bracing, steel strapping or bolts securing the machine, and forklift clearance matching the planned loading method.
Crate strength is not one number. It is a system. The base skid 3 carries the load. The walls resist stacking pressure. The internal bracing stops the machine from moving. When our engineers design a crate for a vision-guided laser system, they start from the shipment profile: machine weight, dimensions, center of gravity, transport mode, and route length. A short truck run to a nearby port needs less than a six-week ocean crossing to Sweden or Canada.
A Simple Strength Verification Process
You can verify most of this remotely. Follow these steps in order:
- Ask for the crate drawing or specification sheet. Confirm plywood thickness and skid dimensions in writing.
- Compare the skid rating to the gross weight. The base must carry the machine plus handling stress, not just its static weight.
- Confirm the machine is bolted or steel-strapped to the base. Foam alone cannot immobilize a heavy machine.
- Check forklift clearance. The skid must accept forks from the sides your freight handler will actually use.
- Ask how stacking is handled. Ocean containers stack cargo, so the crate lid and walls need reinforcement or clear "do not stack" markings.
One opposing view deserves an honest answer here. Some suppliers argue that basic export packaging is enough if the shipment is insured. I disagree, and so do most experienced buyers. Insurance pays money, but it does not restore your production schedule. A misaligned CCD camera or a damaged control board can idle your line for weeks while a replacement ships. The risk-focused argument wins: the cost of damage almost always exceeds the cost of a stronger crate. At the same time, I do not push over-engineered crates on every order. Matching crate strength to the real shipment risk is the professional answer, not maximum wood on every job.

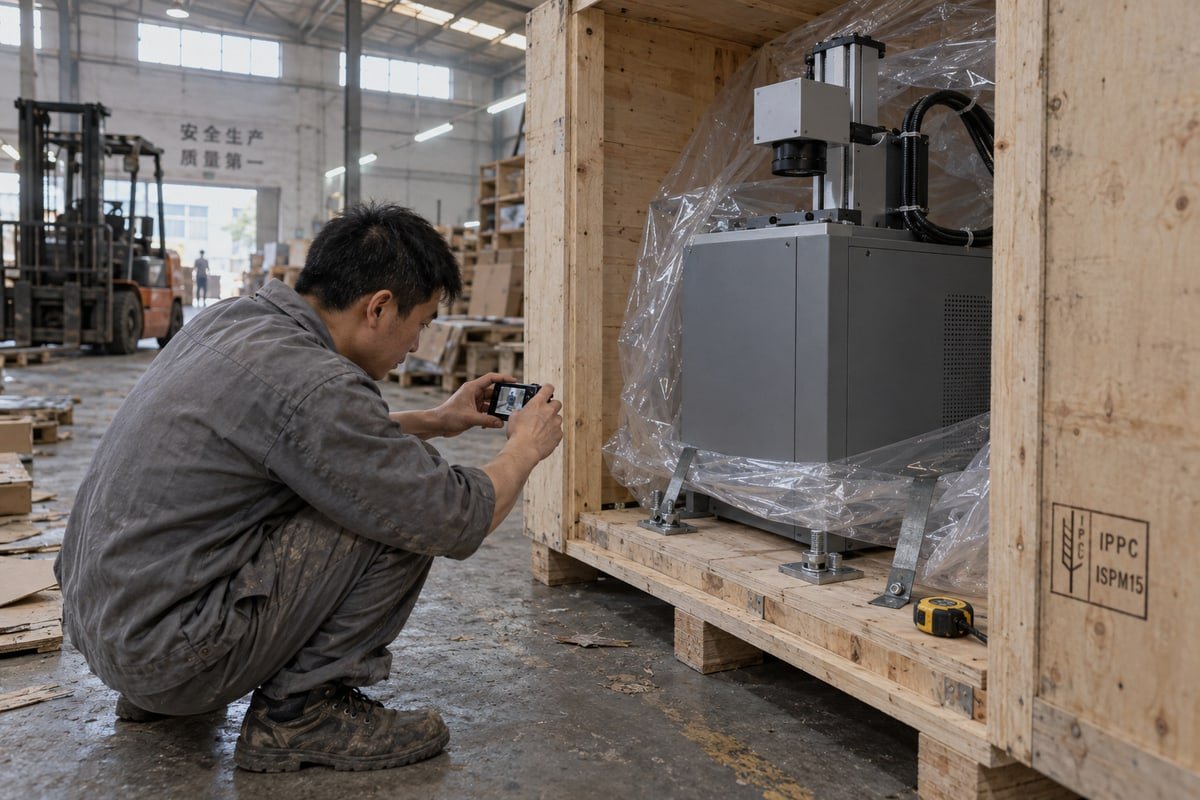

What Packaging Details Should I Request Photos or Videos of Before My Machine Ships From China?
Before every container leaves our factory floor, our QC team photographs each packing layer. One buyer in the Philippines told me those photos settled a carrier dispute in two days.
Request 360-degree photos of every internal packing layer, a video showing the machine bolted down and moving parts locked, close-ups of the ISPM 15 stamp and shipping labels, desiccant and moisture barrier placement, and a tilt-test video before the crate is sealed.
Photo and video evidence has become standard practice for a reason. Once cargo leaves the origin point, damage claims become very hard to resolve. Buyers now treat pre-shipment records as part of supplier acceptance, alongside serial numbers and condition photos. My personal habit, built from years of shipping CCD systems abroad, is to photograph or physically inspect the packaging before dispatch and confirm the machine is fixed firmly with no visible looseness. I recommend every buyer demand the same.
Your Pre-Shipment Photo and Video Checklist
Use this as your pre-shipment inspection checklist. Send it to your supplier before you pay the balance:
| Evidence Item | Format | What It Must Show |
|---|---|---|
| Machine on skid, unwrapped | Photos, 4 angles | Bolts or steel straps securing the base |
| Moving parts locked | Video | Z-axis column and CCD camera arm braced or pinned |
| Moisture protection layer | Photos | Moisture-proof barrier bags, desiccant packets, sealed film |
| Foam and internal bracing | Photos per layer | Custom-fit padding, not loose fill |
| Sealed crate exterior | Photos, all 6 faces | Labels, IPPC stamp, impact indicator labels |
| Tilt test | Video | No internal movement when the crate is tilted |
| Serial number | Close-up photo | Matches the packing list and invoice |
Two details separate serious suppliers from careless ones. First, the tilt-test video: a short clip showing the sealed crate tilted slightly, with no sound or shift from inside. Second, single-use impact indicator labels such as ShockWatch sensors on the crate exterior. These give you verifiable proof if the cargo suffers excessive G-force during transit. If a supplier refuses to provide either, ask why. Honest factories have nothing to hide, and the photos cost them ten minutes.
How Do I Know If My Supplier's Packaging Will Prevent Damage to Sensitive CCD Vision Components During Long-Distance Shipping?
Early in our export history, we learned a hard lesson: a compact machine is not a tough machine. CCD optics and camera 4 alignment demand protection far beyond what the machine's size suggests.
Confirm the packaging includes anti-static vacuum-sealed bags for optics and electronics, high-density PE foam with custom bracing, mechanical locking of the Z-axis and camera arm, VCI film on metal surfaces, desiccants inside a vapor barrier, and documented vibration testing.
A CCD laser marking machine carries three sensitivity zones: the optics and camera, the laser source, and the control electronics. Each faces a different transit threat. Vibration drifts camera calibration. Moisture corrodes boards and fogs lenses. Static discharge can kill sensitive circuits silently. Generic foam fill, designed for consumer products, addresses none of these properly. Precision machinery needs precision packaging.
Matching Protection to Each Risk
Here is how I map risks to protections when our team packs a machine for a long ocean route:
| Transit Risk | Sensitive Component | Required Protection |
|---|---|---|
| Vibration and shock | CCD camera arm, Z-axis, optics | Mechanical locking, rigid bracing, high-density PE foam |
| Humidity and salt spray | Electronics, lenses, laser source | Vacuum sealing for sea freight, desiccants, sealed vapor barrier |
| Corrosion | Metal chassis, rails | VCI film for molecular-level rust protection |
| Static discharge | Control boards, sensors | Anti-static aluminum foil bags |
| Rough handling | Entire machine | Skid bolting, impact indicators, orientation labels |
Moisture control deserves the most scrutiny for sea shipments. Humid routes through Southeast Asia or long transits to Europe treat vapor barriers and desiccant use as minimum good practice, not extras. I always verify three things myself: the moisture-proof bag is fully sealed, the desiccant quantity matches the crate volume, and the sealing film shows no punctures. This checks directly against my own dispatch routine — moisture bags, drying agents, and sealed film must all be complete before any machine leaves our floor.
Some buyers ask whether honeycomb structural inserts can replace foam. They can, and they offer a sustainable, high-strength option for separating internal components. But the principle stays the same: the protection must be engineered for the machine, not chosen for convenience. Cushioning and vibration control must suit a precision optical and electronic system. If the internal packing looks like it could ship a refrigerator just as easily, your vision-guided laser system is not properly protected.
Conclusion
Packaging verification means proving the crate matches shipment risk, export rules, and machine sensitivity. Demand named standards, test reports, moisture protection, locked components, and photo evidence before your CCD laser marking machine ships.
