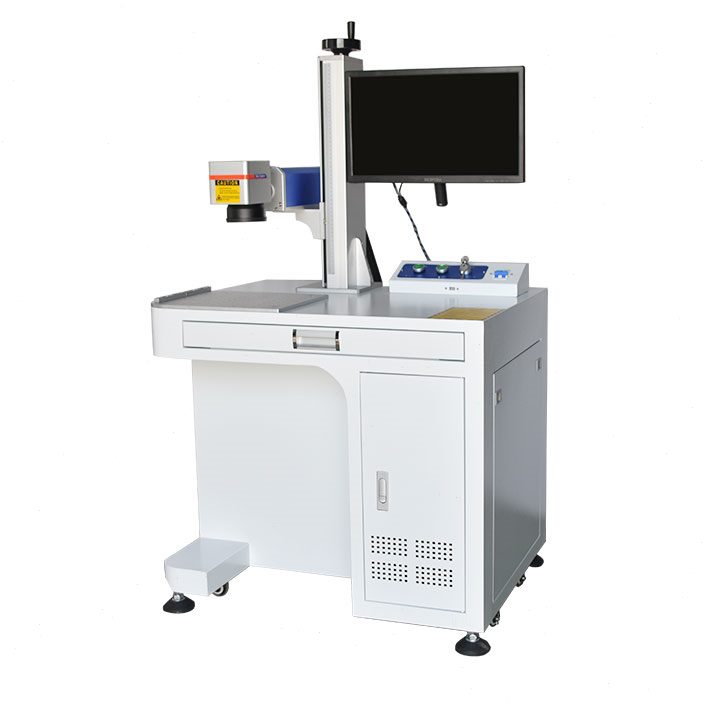

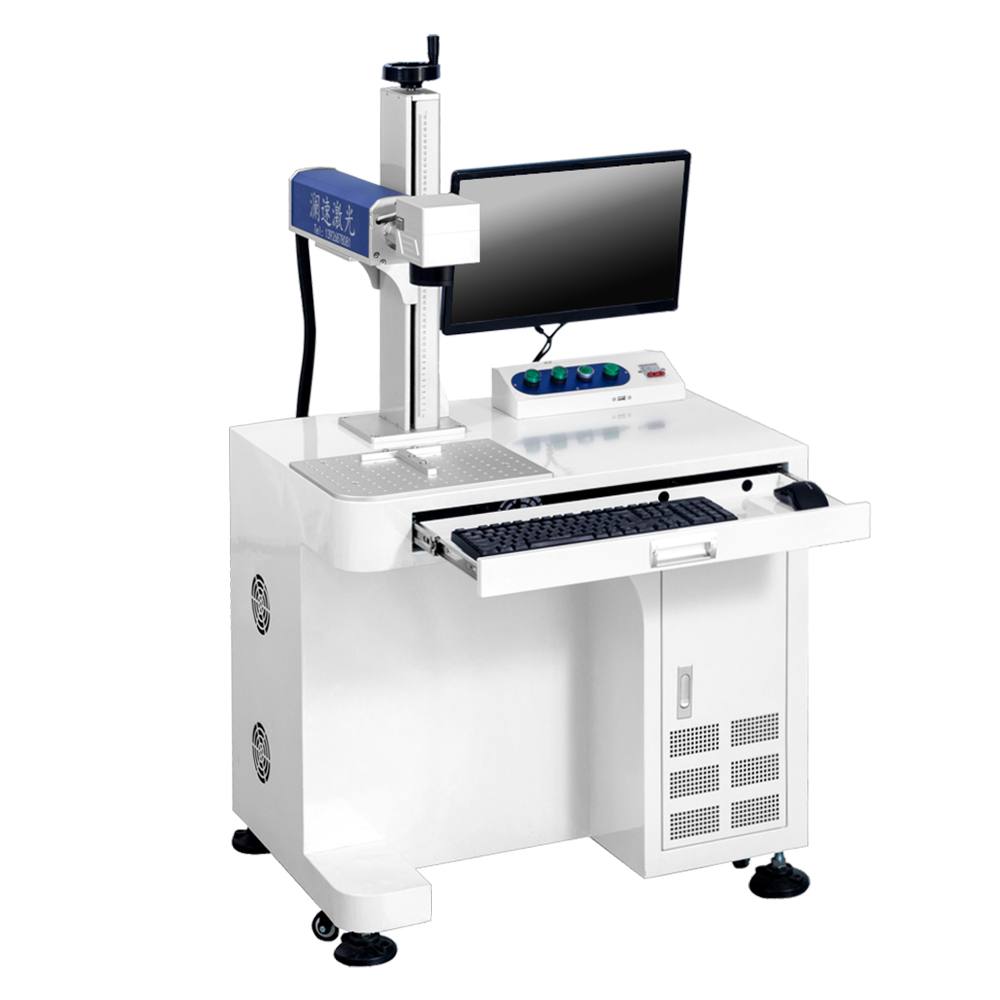

PRODUCT FEATURES
FA series fiber laser marking machine includes all applications of FLseries,and adds wide and narrow pulse on the basis of FLseries.Using dif-ferent pulse width to realize multi-color function in material processing.The wide and narrow pulses of FA series lasers are controlled inde-pendently.All of them have perfect laser characteristics and good pulseshape control ability.
APPLICABLE MATERIALS
It can be used to black alumina.Plastic lettering,metal lettering,stainlesssteel color printing,mirror peeling paint and other products with higherrequirements.

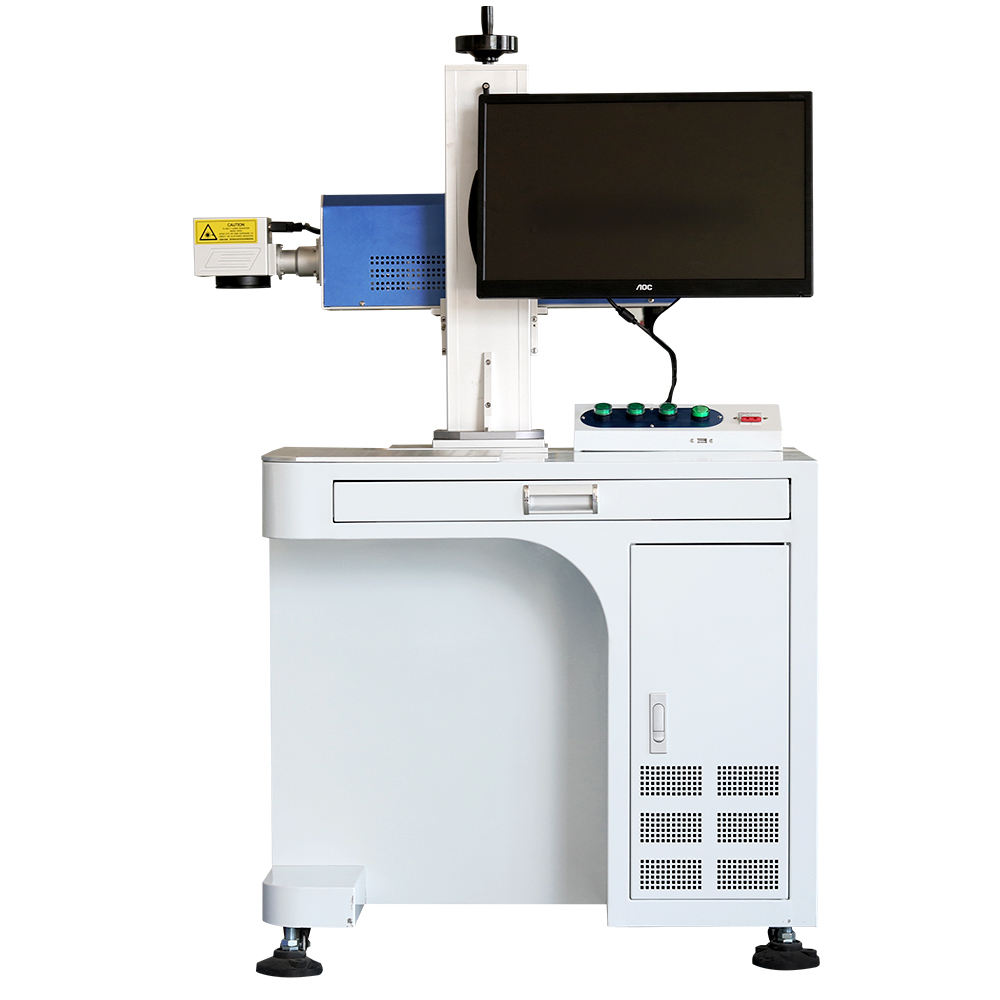

PRODUCT DETAILS

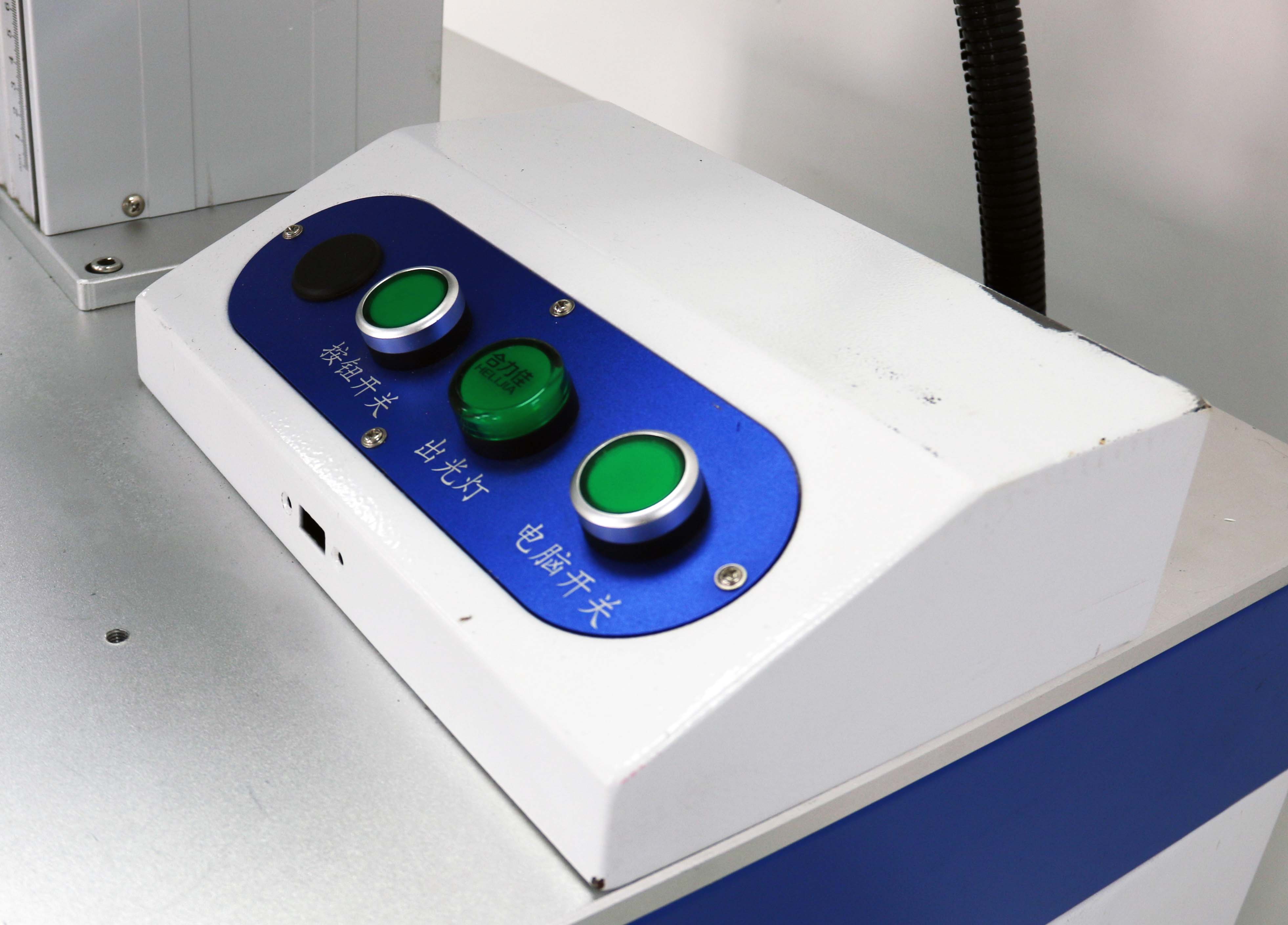

Power switch

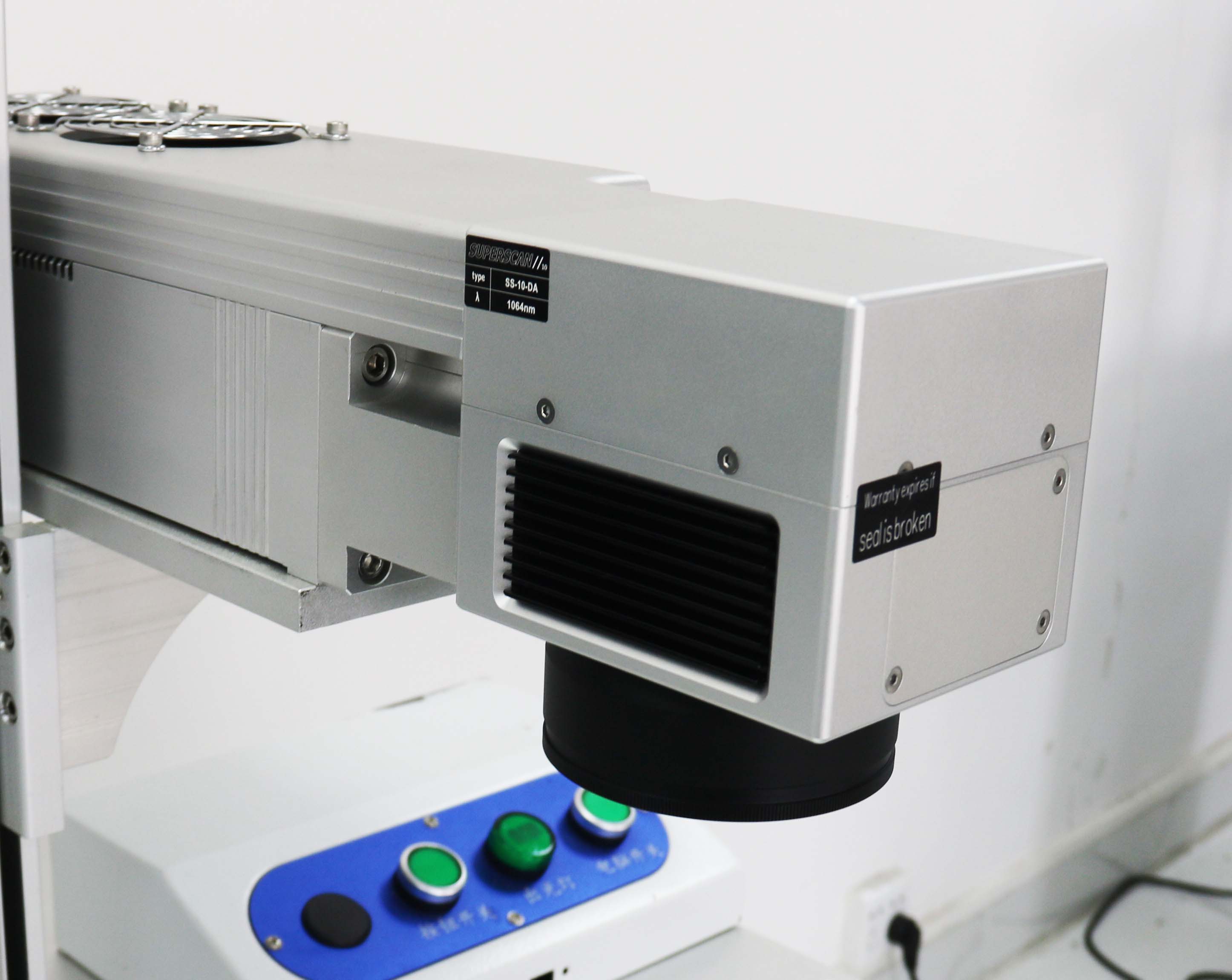

Laser

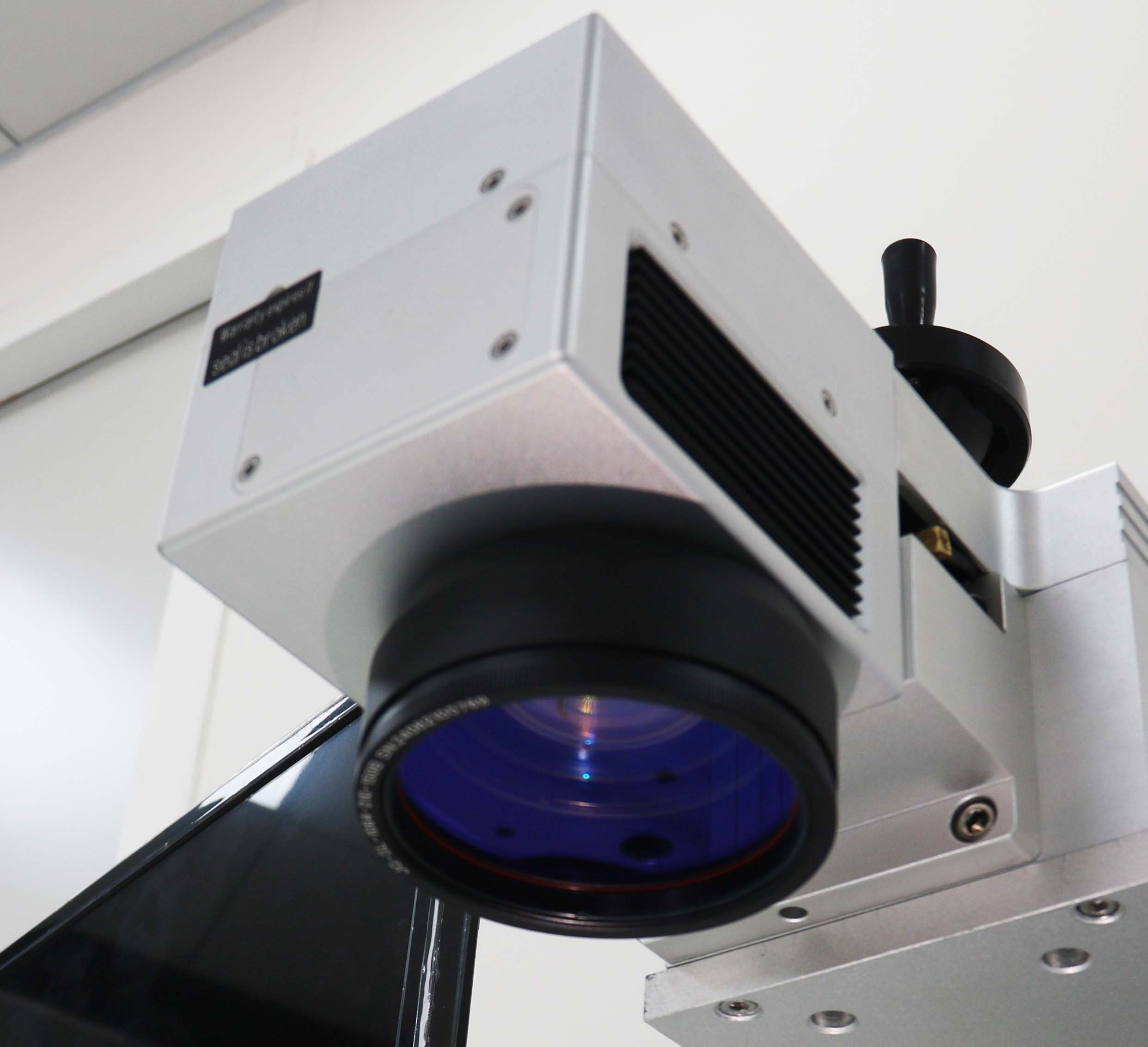

Field lens

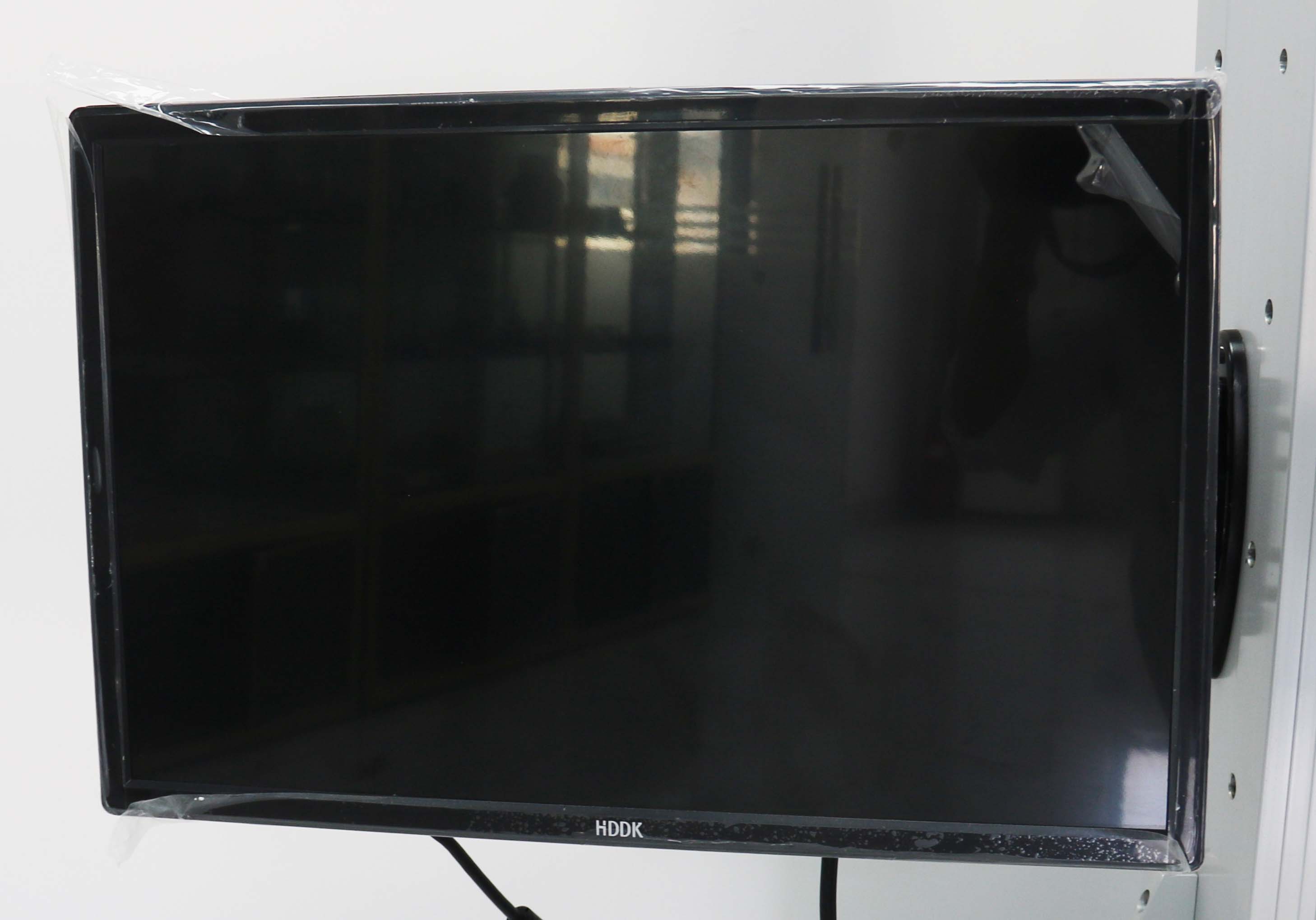

Industrial Computer

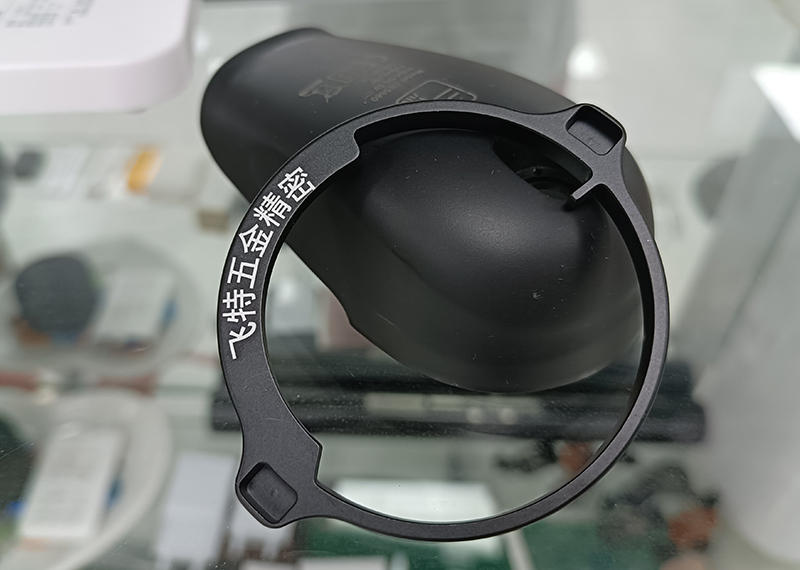

PRODUCT APPLICATION

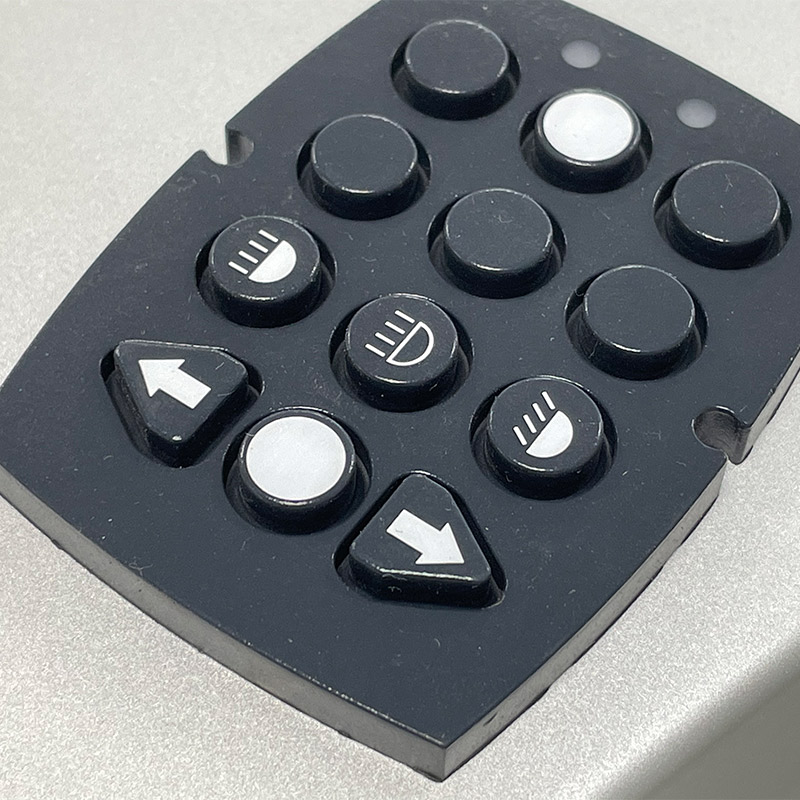

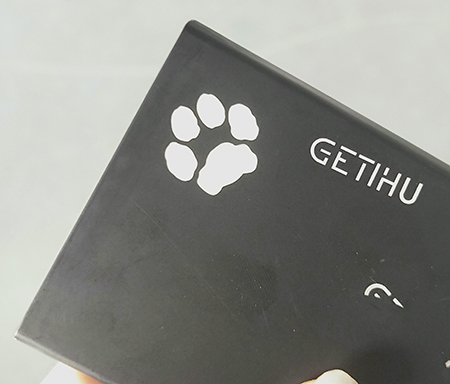

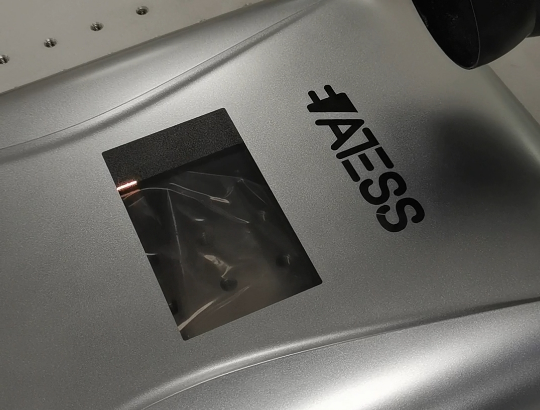

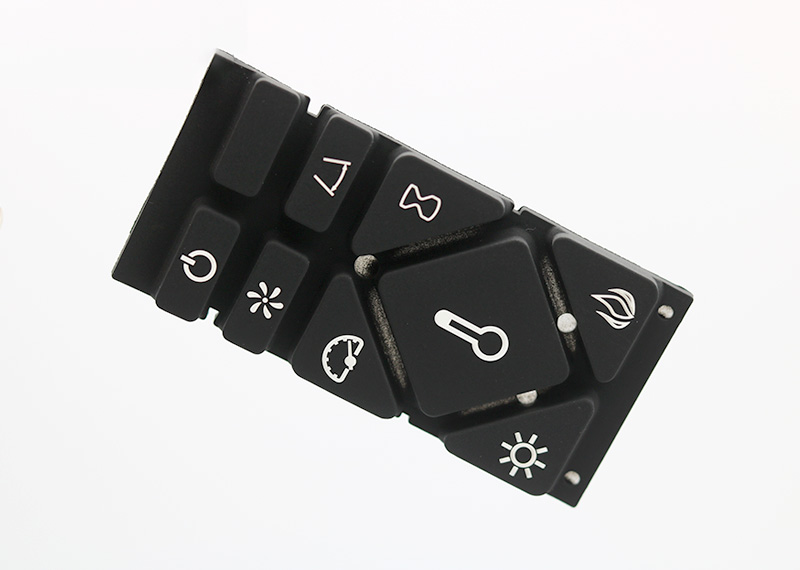

MOPA laser marking machine is a type of fiber laser marking machine. It can be engraved on any metal because it can achieve black, gray, and white engraving. In addition, it can also be engraved on spray-coated plastics and metals, and the light transmission effect is very good.






PRODUCT CUSTOMIZATION OPTIONS/GIVEAWAYS
Customization Options

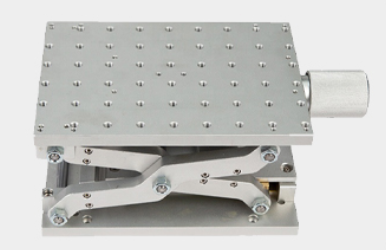

2D platform

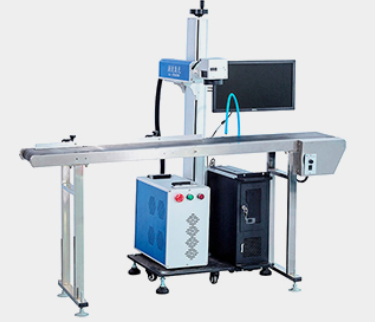

Assembly line

Fixture

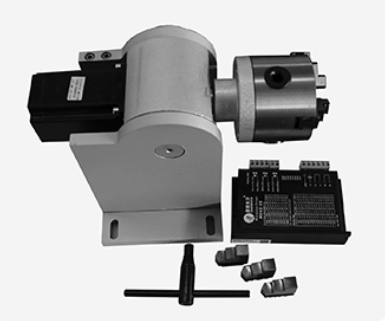

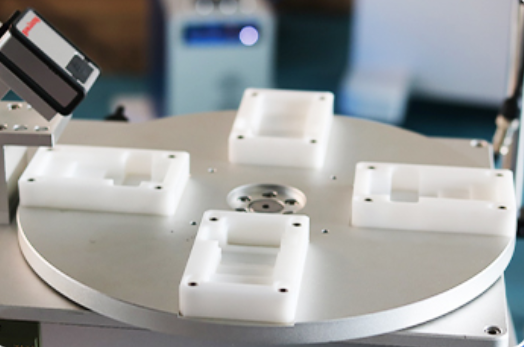

Rotating device 1

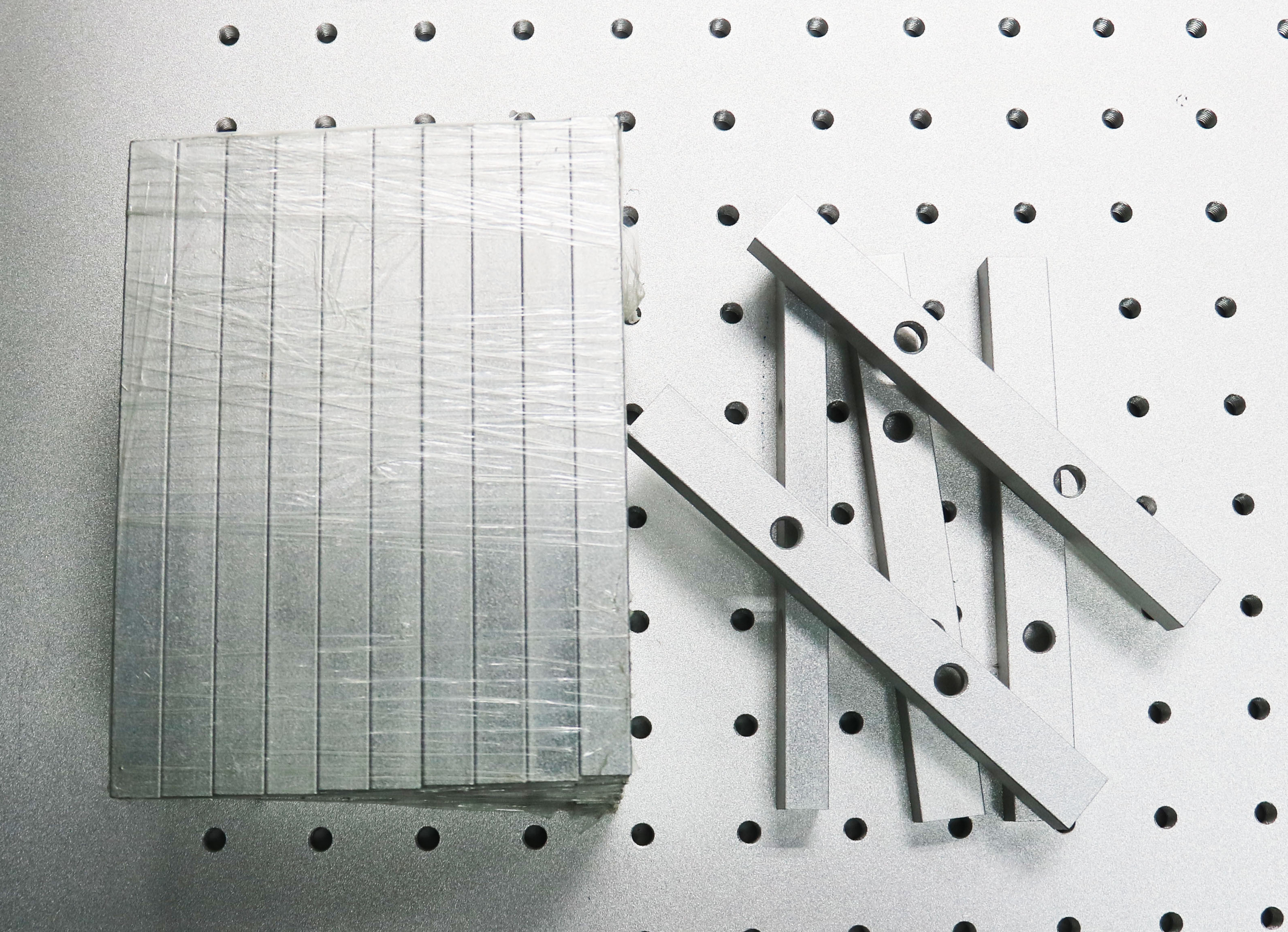

Giveaways

Fixing fixture

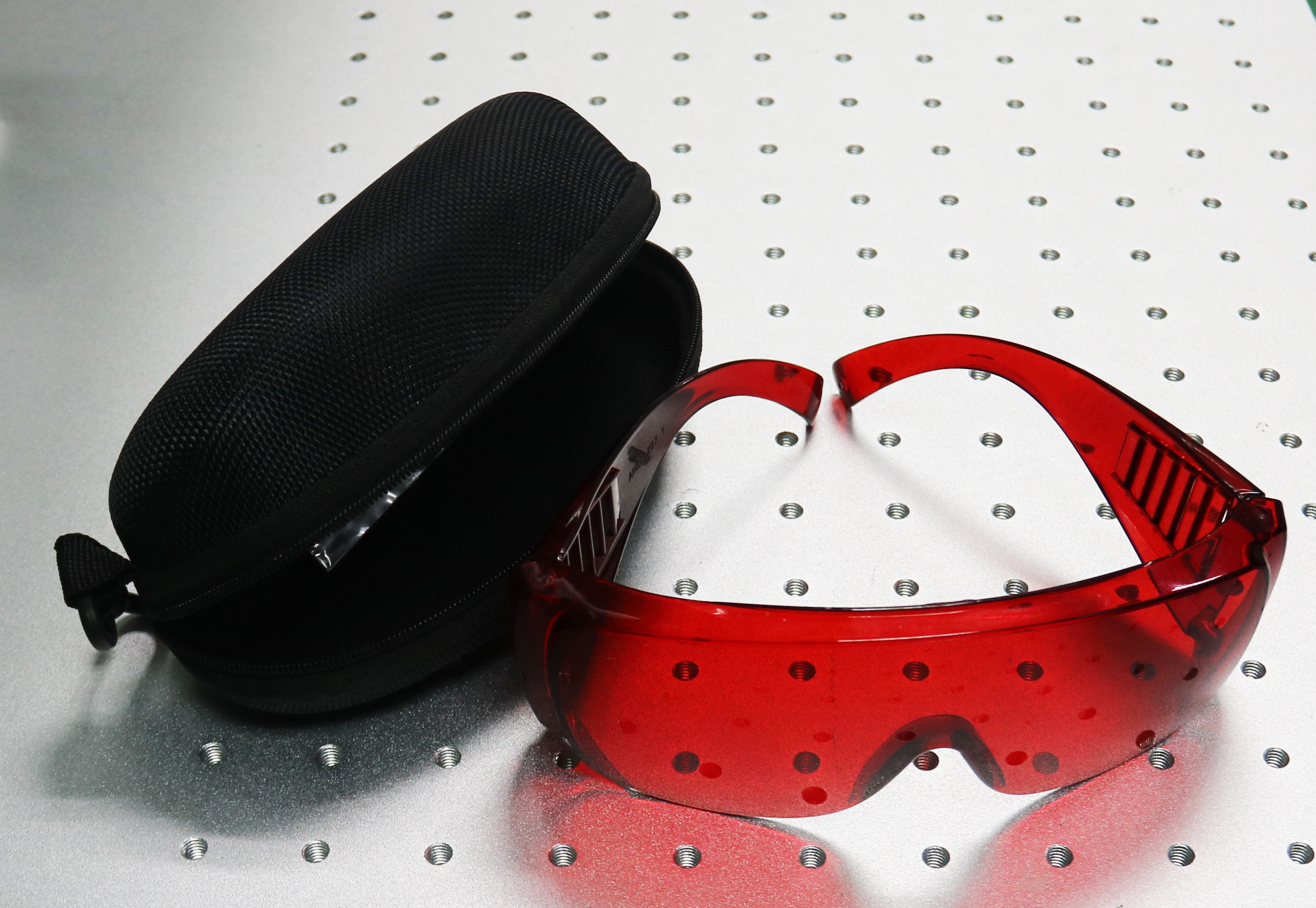

Goggles

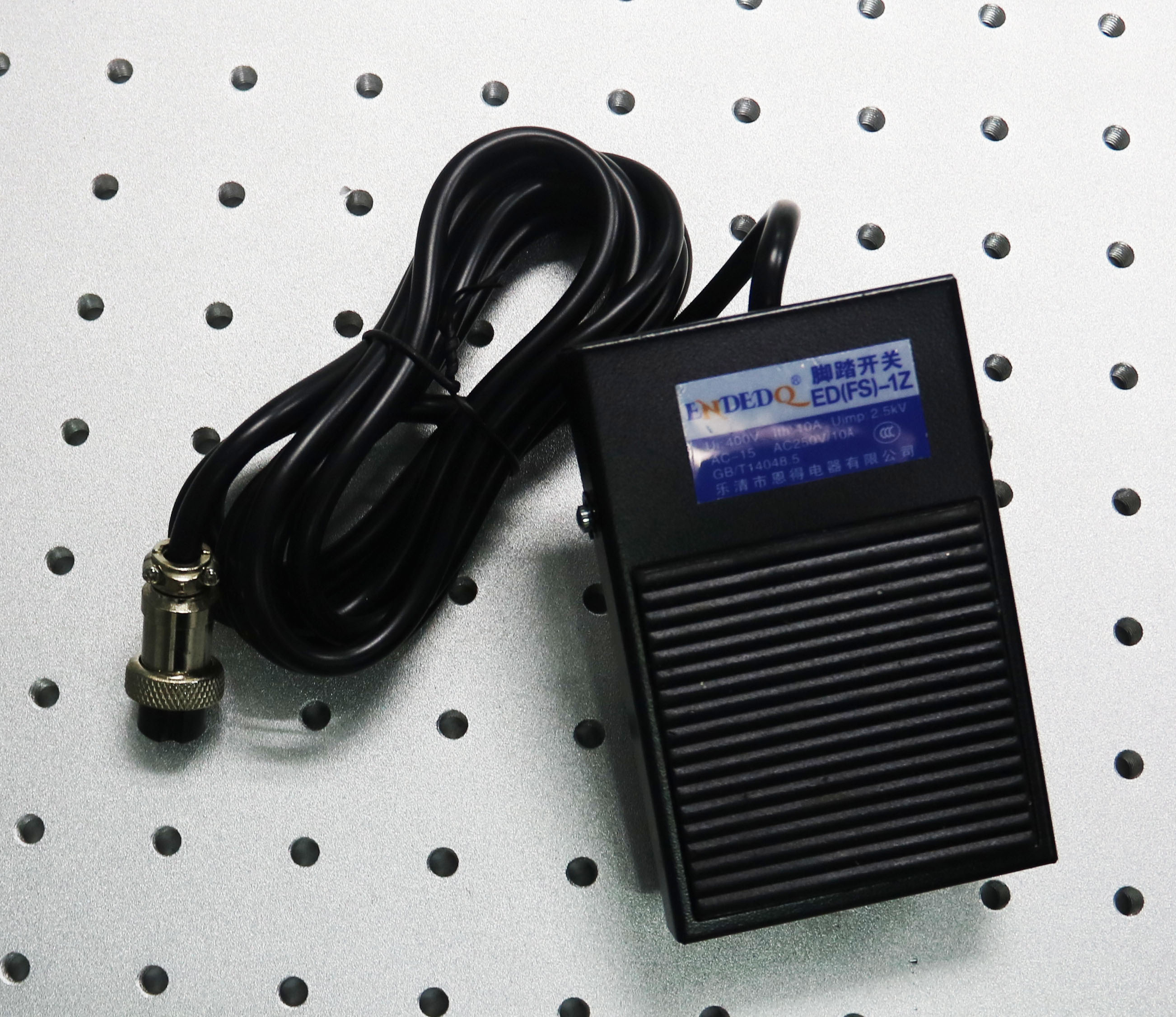

Pedals

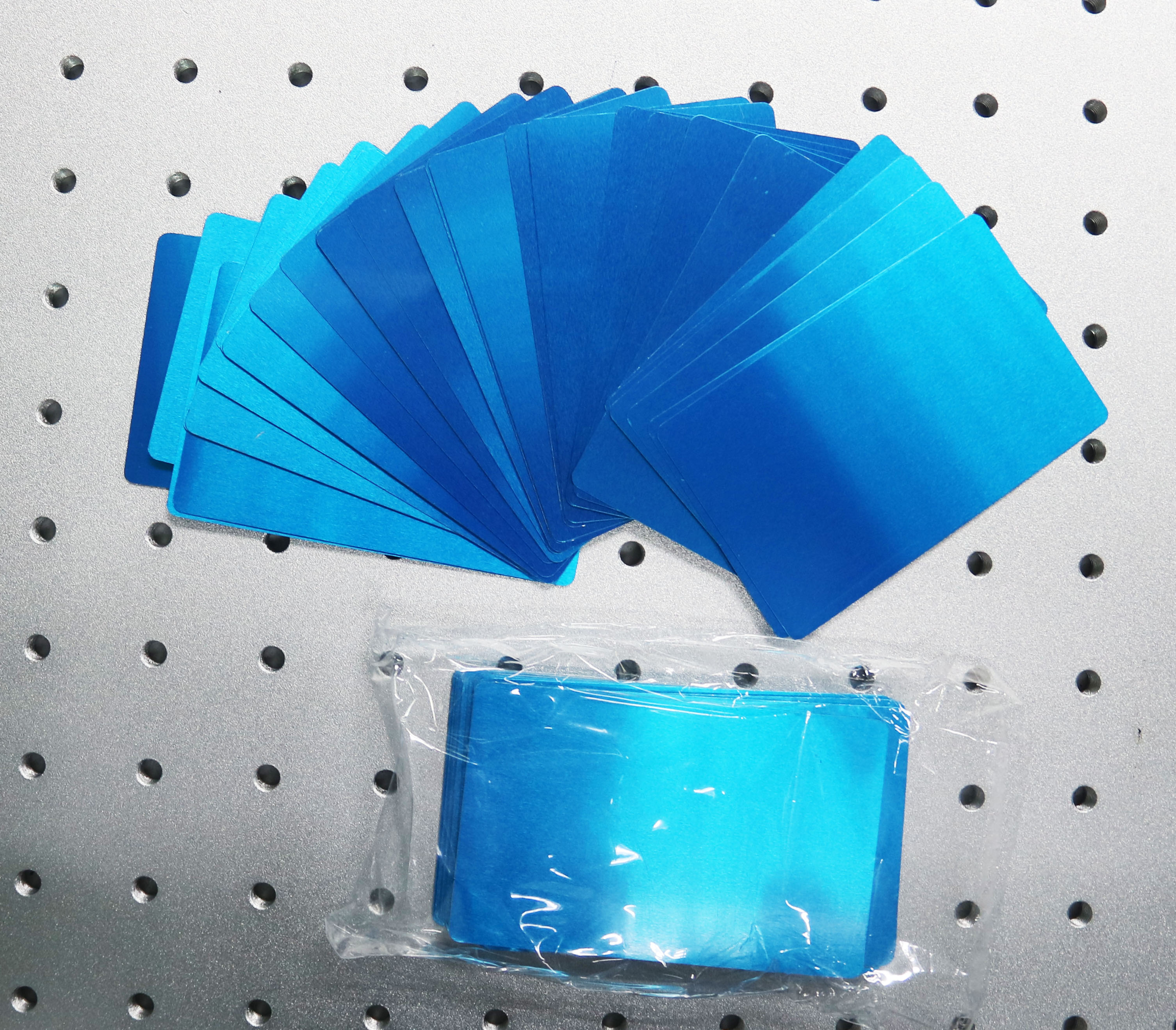

Test Card
TECHNICAL PARAMETER
Model | LS-FA-20/30/60/80/100W |
Laser wavelength | 1064nm |
laser power | 20/30/60/80/100W |
frequency range | 1-1000KHz |
Pulse width range | 2-250ns |
Marking speed | ≤7000mm/s |
Minimum line width | 0.02mm |
Minimum character | 0.05mm |
Repeatability | ±0.1μm |
Marking range | 150mmx150mm(optional) |
Cooling mode | Air cooling |
Working power supply | AC220V/50Hz |
COMPANY STRENGTH

Lansu laser is a enterprise works on produce andsell for laser marking machine.
Lansu laser own independent R&D departmentwhich offer varous technical support for our customer via our technical manuals, product videosand livestream
Lansu laser's advantages: high quality equip-ments, professional technical support, quickly shipping and good after sales service. We offer trainingvia our technical manuals and livestream.
Lansu laser welcome all of our customers tobecome one of us or our distributor.

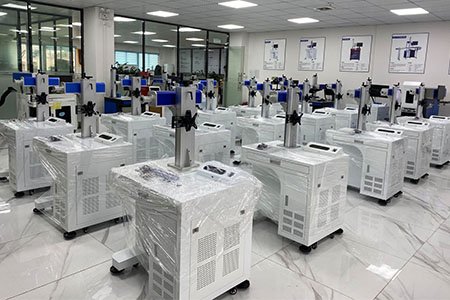

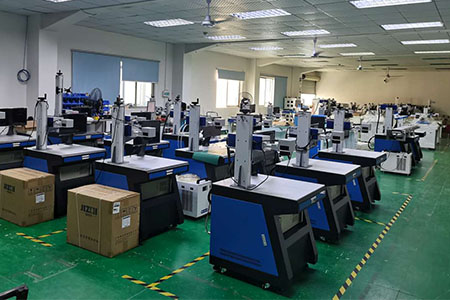

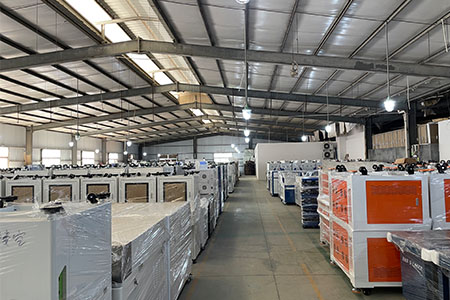

FACTORY DISPLAY

厂1

厂3

厂4
CUSTOMER GROUP PHOTO

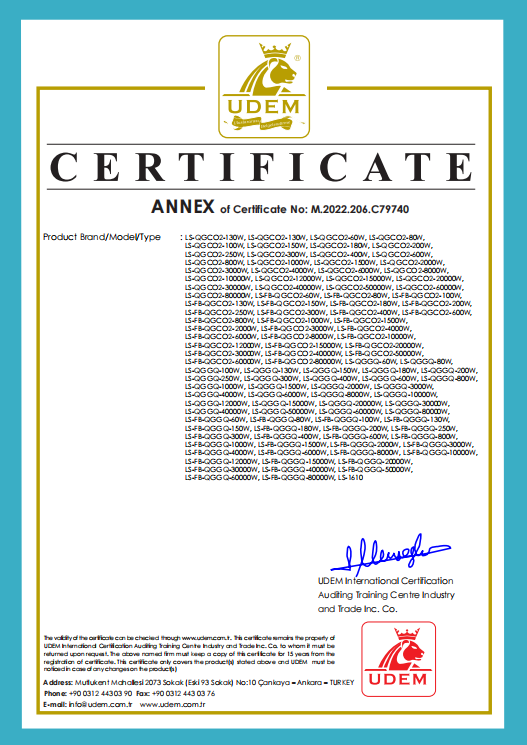

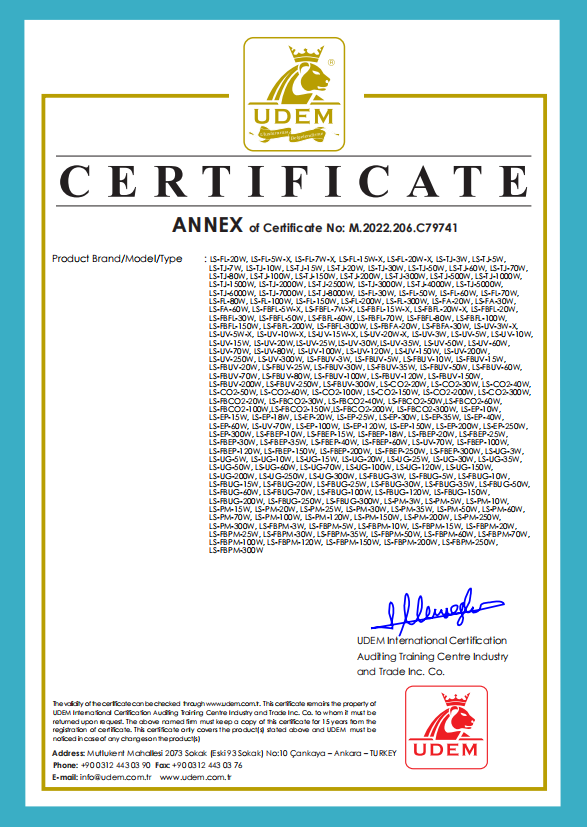

CERTIFICATE AND QUALIFICATION
PACKING AND TRANSPORTATION
01

Testing
02

Package
03

Wooden box packing
04

deliver goods
05

Port loading
06

air transport
