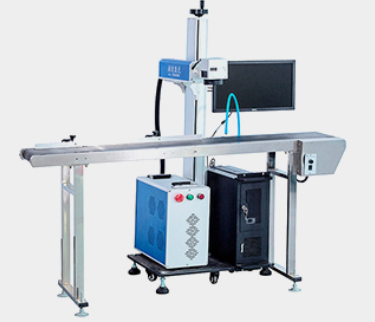

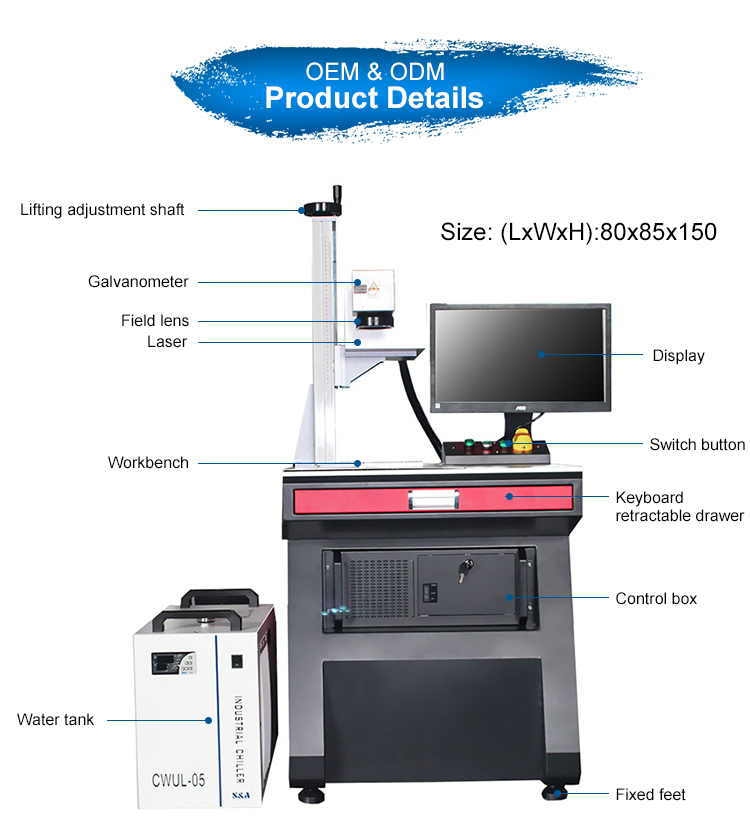

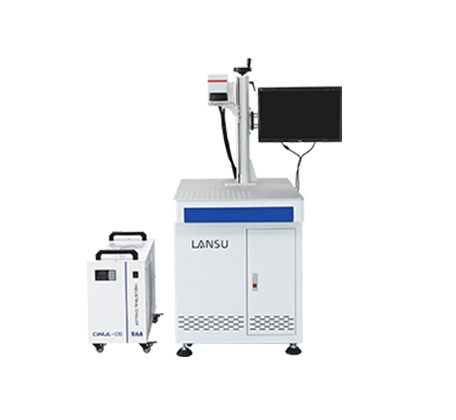

The ultraviolet laser marking machine is developed by 355nm ultravioletlaser . Compared with the infrared laser , the third-order intracavity frequendoubling technology
adopted in the machine can directly break the molecular chain of the material by short wavelength laser , greatly reducing the mechanical deformation of the material .
Although it is heated , it is cold light .

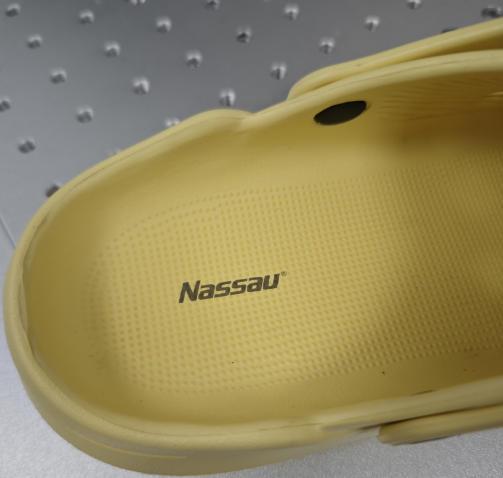

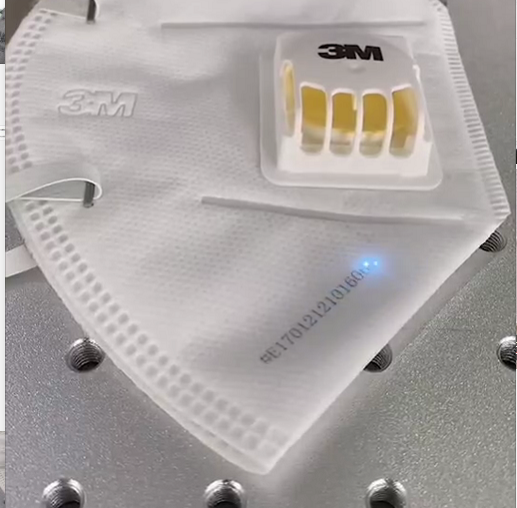

It is mainly used for superfine marking and engraving , especially suitable formarking and microporous of food and medicine packaging materials ( suchas plastics ) , high-speed division of glass and porcelain materials , and com -plex pattern cutting of silicon wafer
Applicable materials: Stripping of aluminum coating and anode layer, Surface peeling paint.
Ceramic Scribing.

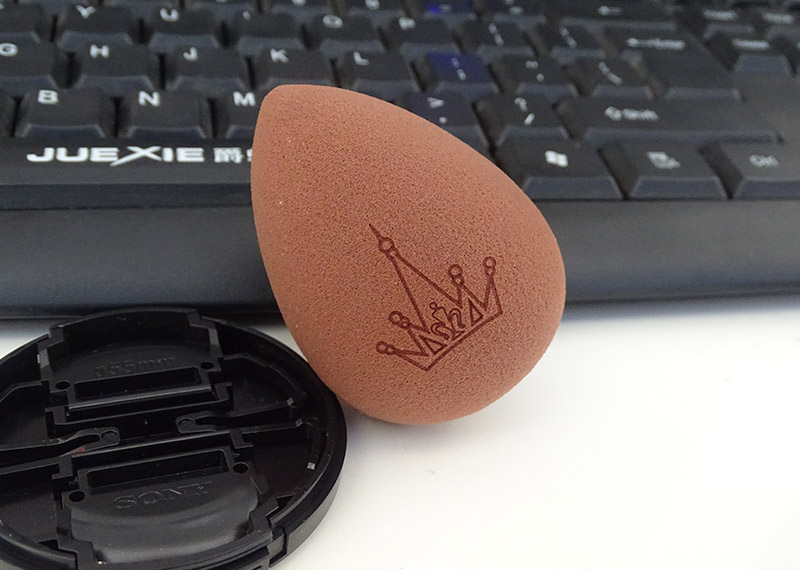

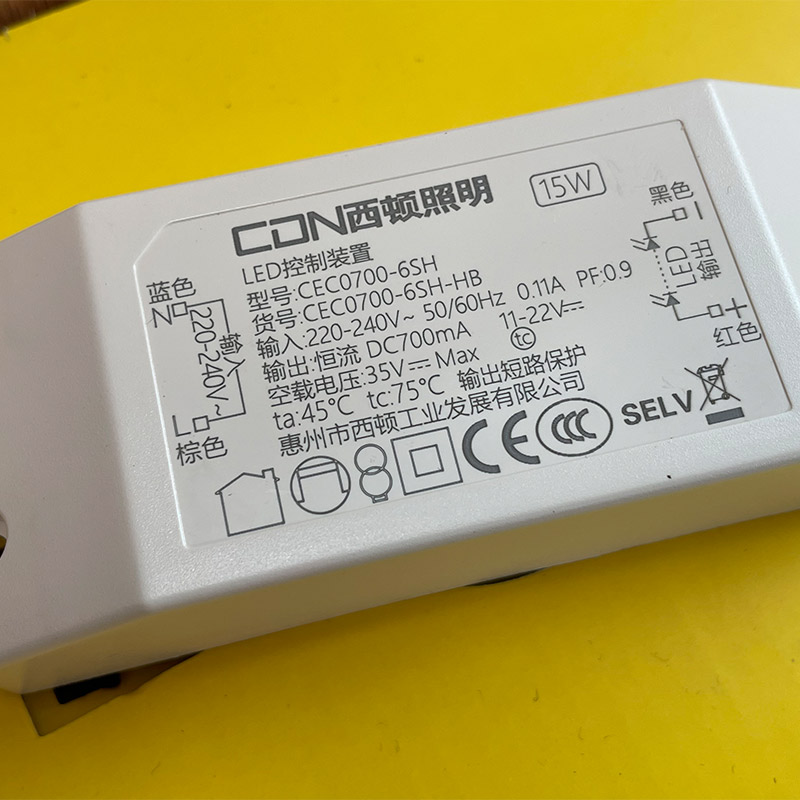

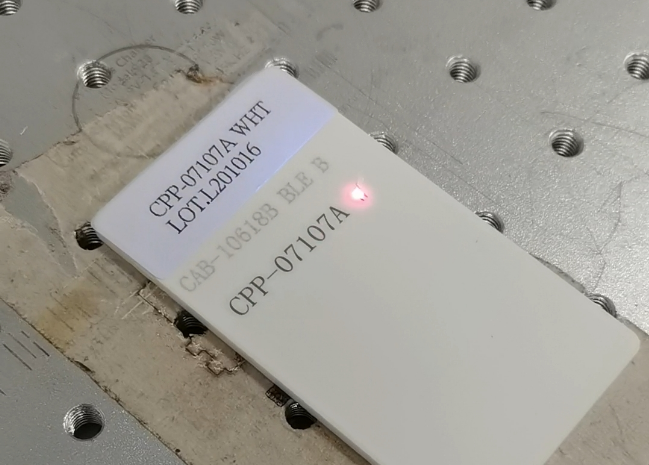

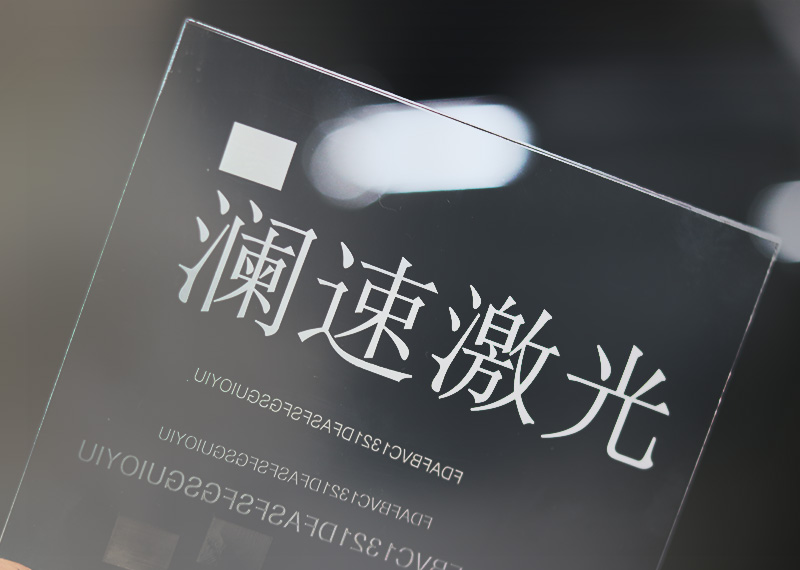

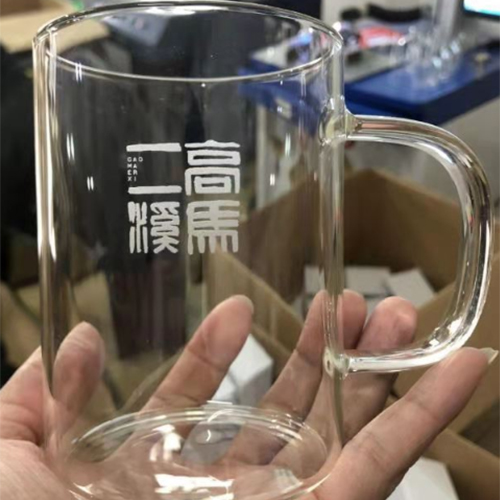

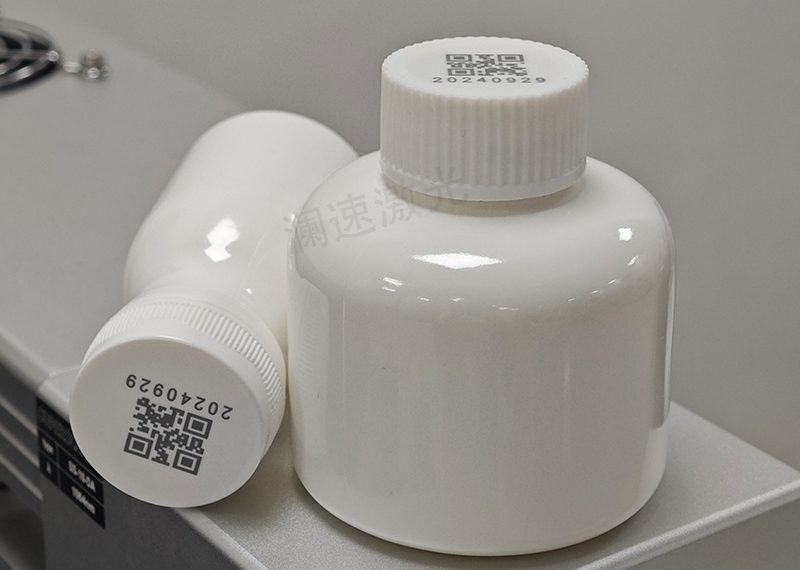

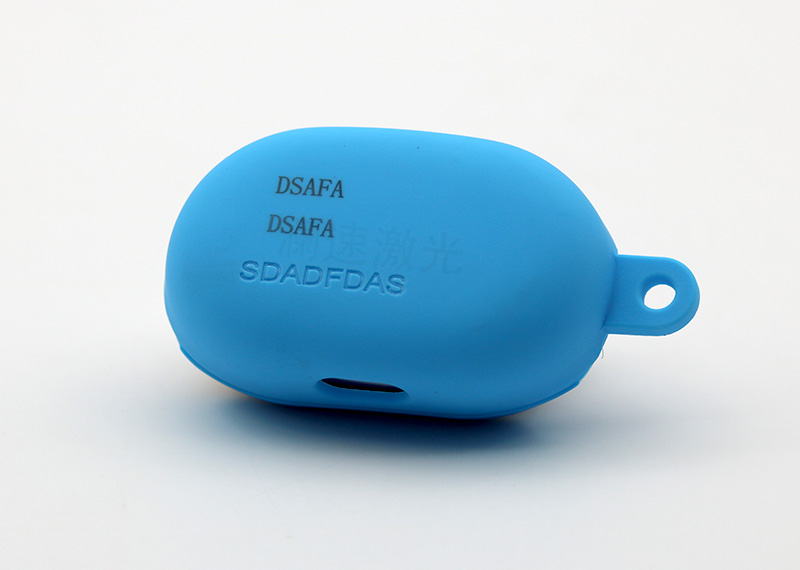

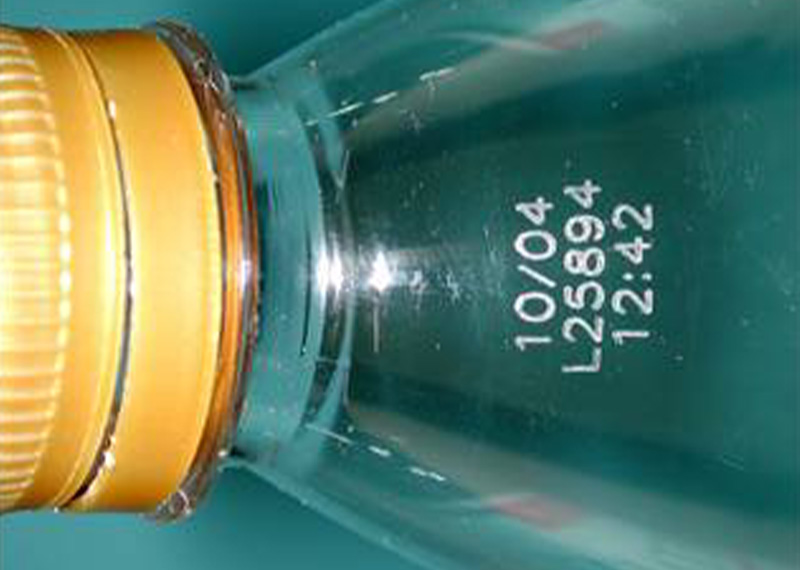

Application: High-end market of ultra-fine processing.Cosmetics, drugs, food and other macro-molecule material packaging surface marking. Widely used inmarking and slicing of flexible PCB, silicon wafer micro-hole, LCD glass, QR code, glassware surfacemetal surface coating, plastic keys, electronic components, communication equipments, etc
| Model | LS-UV-3 / 5 / 10 / 15W |
| maximum power | 3 / 5 / 10 / 15W |
| frequency range | 10-100KHZ |
| Pulse width range | 13-80ns |
| Laser waveleng | 355nm |
| Carving range | 150mmx150mm ( optional ) |
| Engraving speed | < 7000mm/ s |
| Repeatability | ±0.1μm |
| Beam diameter | 0.08mm |
| Cooling mode | water cooling |

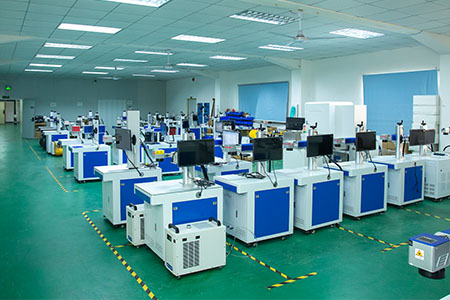

Lansu laser is a enterprise works on produce andsell for laser marking machine.
