Buyers often ask me about the [CCD laser marking machine price](https://lansulaser.com/ccd-laser-marking-machine-suitable-small-batch-production-is/) first. Sticker price alone misleads. Our Dongguan factory has seen cheap machines cost far more over five years.

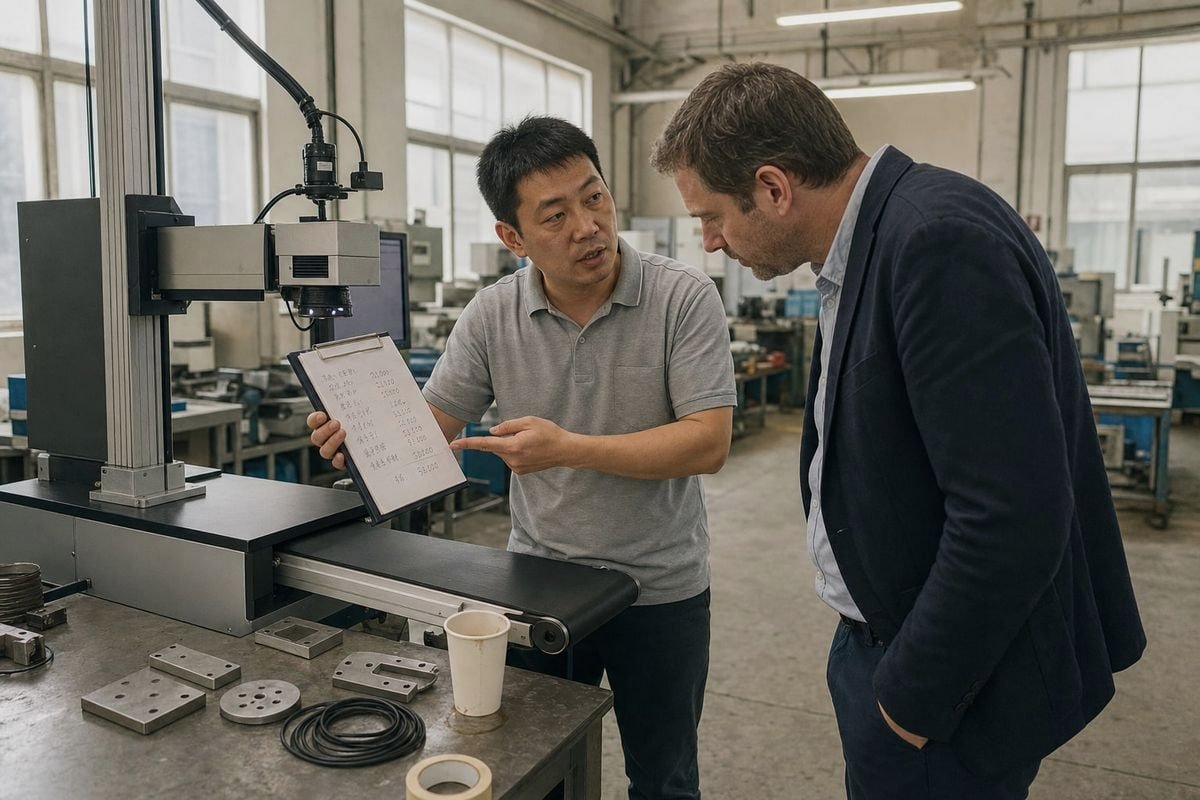

The total cost of ownership for a CCD laser marking machine includes the purchase and installation fee, annual consumables, periodic maintenance and calibration, electricity and labor, plus spare parts and hidden downtime losses — typically evaluated over a 3–5 year lifecycle, minus residual value.
Let me break each of these cost layers down. I will use real numbers where I can. By the end, you will know exactly what to budget for.
What upfront costs should I expect when purchasing a CCD laser marking machine?
Last year, an Italian buyer sent me three competing quotes to compare. Two of them left out installation, training, and the vision positioning system entirely. That gap surprised him.

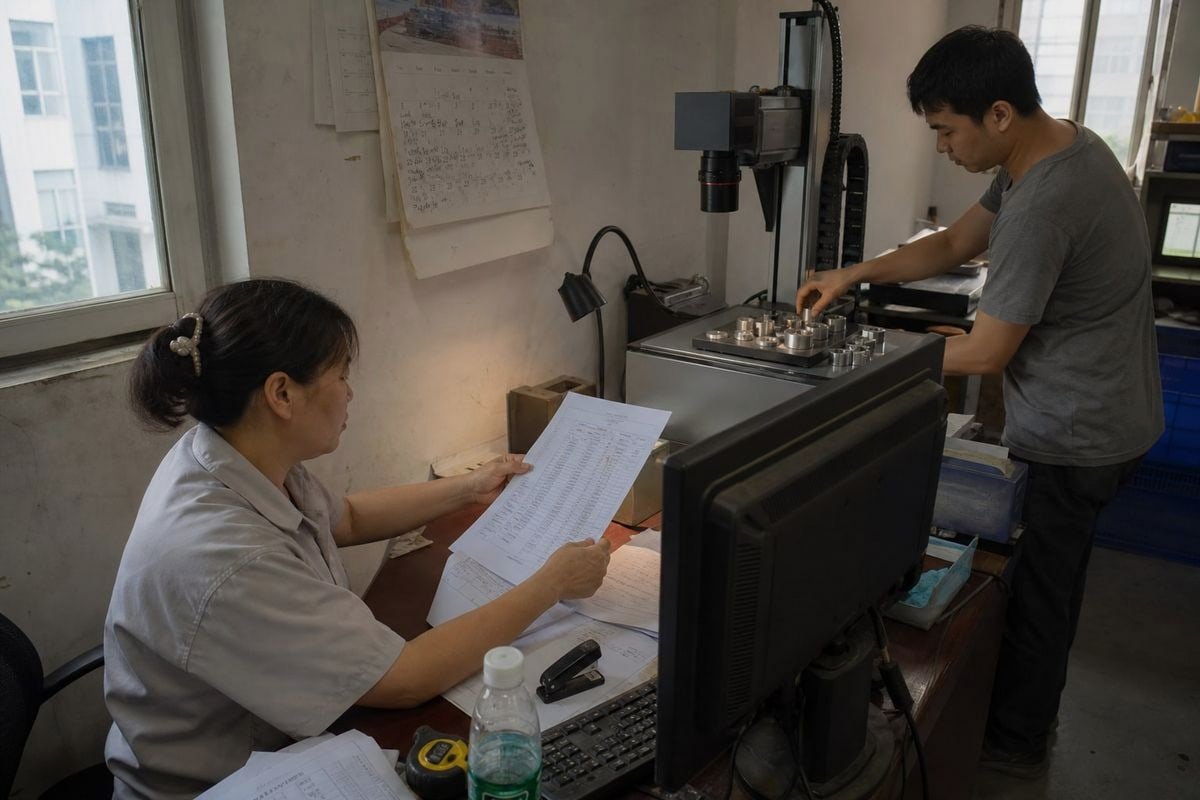

Upfront costs include the machine itself, the CCD vision system premium of roughly $2,000–$5,000, installation and commissioning, site preparation, electrical setup, initial calibration, and operator training. A complete CCD-enabled fiber laser system commonly lands between $6,000 and $30,000 depending on configuration.
The initial investment cost has more parts than most first-time buyers expect. When our engineers prepare a quotation, we always itemize it. That way, nothing surprises the customer after the deposit is paid.
The main upfront line items
Here is how the numbers typically stack up across the market:
| Cost Item | Typical Range | Notes |
|---|---|---|
| Base fiber laser marker | $3,500–$28,500 | Depends on wattage, brand, and source |
| CCD vision system 1 add-on | $2,000–$5,000 | Camera, software, integration |

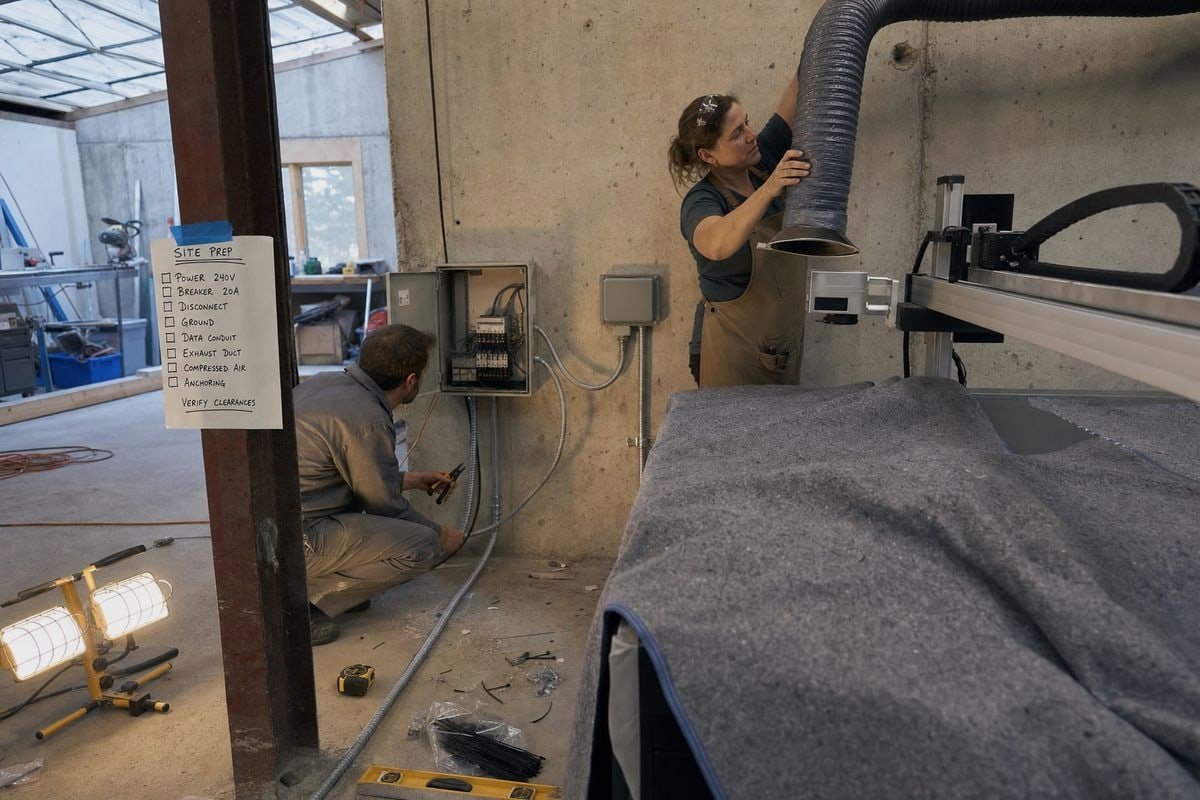

| Site preparation | $500–$5,000 | Bench, space, environment control |
| Electrical upgrades | $1,000–$3,000 | Stable power supply matters |
| Ventilation/fume extraction 2 | $1,000–$5,000 | Often required for plastics |
| Calibration and testing | $500–$2,000 | Includes marking samples |
| Operator training | $1,000–$5,000 per person | Remote training can lower this |
Chinese OEM systems can run as low as $1,800–$4,000. Branded Chinese systems like ours sit around $3,500–$7,000 and up. European and US brands often reach $12,000–$25,000 for a comparable base configuration.
Why the CCD premium exists
The vision positioning system is not just a camera. It includes optics, lighting, positioning software, and integration work. Our team spends real engineering hours matching the camera field of view to your part size and conveyor speed. That is why we ask for product samples before quoting. A quote without samples is a guess.
If your line needs PLC handshaking, MES connectivity, or robotic loading, budget extra for integration. Those costs vary too much to give one universal number.
How much will maintenance and consumables add to my long-term costs?
One trade-off I always explain to purchasing managers is this: fiber laser technology has very low consumables, but low is not zero. Our service records prove that point yearly.

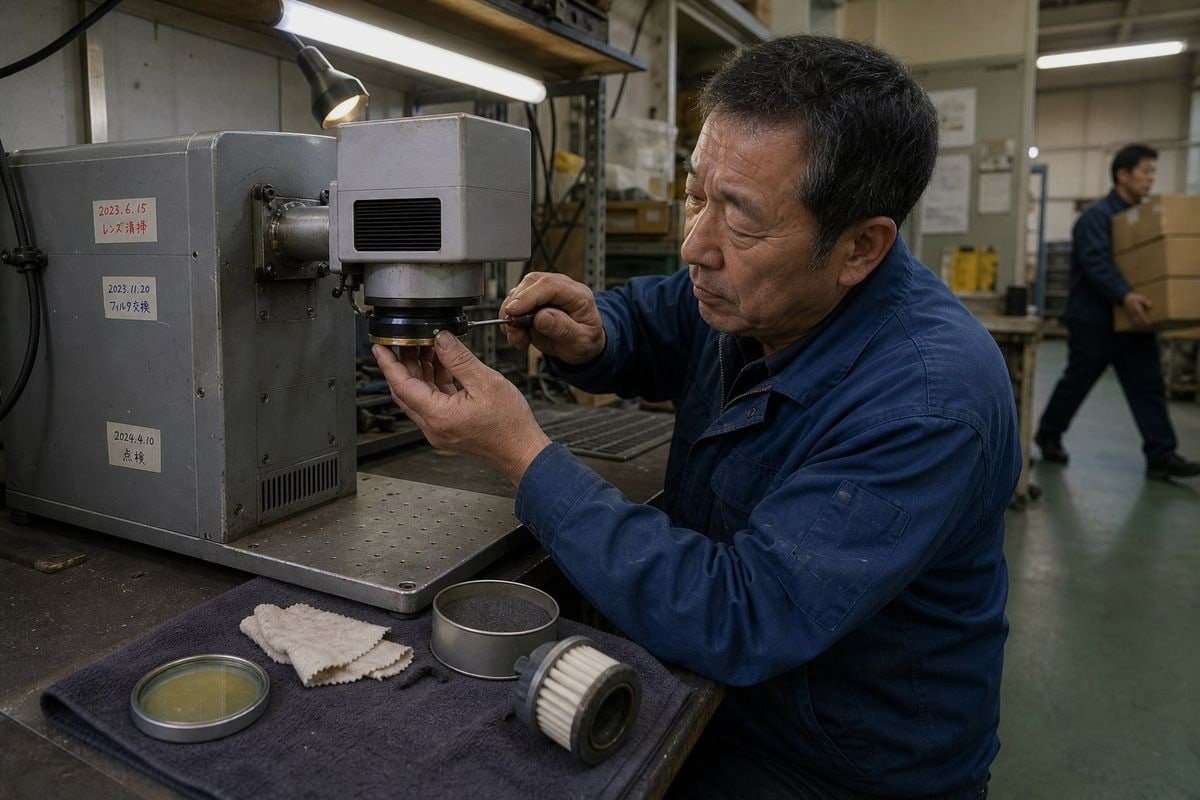

Expect annual maintenance and consumables of roughly 2–5% of the purchase price per year. Typical items include protective windows ($400–$600 over five years), lens cleaning kits, filters, and periodic calibration. Optional service contracts run from $0 to $1,500 per year.
The market loves the phrase "zero consumables." I understand why. Compared with inkjet coding, a fiber laser marker consumes no ink, no solvent, and no ribbons. But operating expenses still exist, and honest suppliers say so.
What you actually replace
Fiber laser sources are rated for tens of thousands of hours. fiber laser system 3 In normal use, you will not replace the laser source for many years. What you will replace or service includes:
| Item | Frequency | Approximate Cost |
|---|---|---|
| Protective lens window | 1–2 years, usage-dependent | $400–$600 over 5 years |
| Fume extraction filters | Every 3–12 months | $50–$300 per set |
| F-theta lens cleaning/replacement | Rare, if damaged | $200–$800 |
| CCD camera calibration | Annually or after moves | Often free remotely, or a service visit |
| Cooling system check | Annually (air-cooled is simpler) | Minimal for fiber; higher for CO2 laser systems 4 |
CO2 laser systems carry higher long-term costs here. Their tubes degrade and need replacement, and their cooling is more demanding. That is one reason fiber dominates metal marking.
Software and support
Do not forget software. Some suppliers charge licensing fees or annual subscription costs for vision software updates. At our factory, we include lifetime remote technical support with the machine, because I learned early that buyers in the UK or Canada cannot wait a week for an answer. Ask every supplier to state their software and support policy in writing before you sign.
Budget maintenance costs as a planned annual line, not an emergency. A $10,000 machine should carry a $200–$500 yearly reserve.
Can a CCD laser marking machine actually save me money on labor and rework?
A buyer from Vietnam once told me his operators spent forty minutes per changeover aligning parts in custom jigs. After we installed a CCD system, that step nearly disappeared from his line.
Yes. The CCD vision system automatically locates parts before marking, which eliminates manual alignment, reduces custom fixture costs, and cuts scrap from misplaced marks. Representative cases show roughly $5,000 per year in labor savings and a payback period of 4–6 months in high-mix production.
This is where the return on investment (ROI) argument for CCD lives or dies. The savings are real, but they depend on your production profile. Let me be honest about both sides.
Where CCD pays back fastest
The savings come from three sources:
- Setup and changeover time. The camera finds the part. Operators stop aligning by hand. In multi-batch production, this saves time every single changeover.
- Jig elimination. Custom fixtures cost money to design, build, and store. Vision positioning replaces many of them, especially for irregularly shaped products and small parts.
- Rework and scrap reduction. A misplaced mark on a machined auto part or a PCB can scrap the whole component. Precision positioning protects that value.
A representative payback scenario
| Factor | Without CCD | With CCD |
|---|---|---|
| Daily setup/alignment time | 30–60 min per changeover | 2–5 min per changeover |
| Custom jigs per year | $1,500–$4,000 | Mostly eliminated |
| Misaligned-mark scrap rate | 1–3% on mixed batches | Near zero |
| Estimated annual labor saving | — | ~$5,000 |
| CCD premium recovery | — | 4–6 months (high-mix) |
Now the objection I hear most: "My parts always arrive in the same position, so why pay extra?" Fair point. If your production is a single stable SKU with a fixed fixture, a standard marker may serve you fine, and the CCD premium takes longer to recover. But if you run frequent changeovers, mixed SKUs, automated feeding, or parts that arrive inconsistently oriented, the math flips fast. Our solution design engineers model this for customers using their actual labor rates and batch sizes, because payback in Germany looks very different from payback in Indonesia.
Production efficiency gains also compound. Faster setup means more marking hours per shift, which raises throughput without adding headcount.
The hardest lesson from my years exporting to seventeen countries is this: buyers remember downtime longer than they remember price. One stopped marking station can block an entire traceability line.

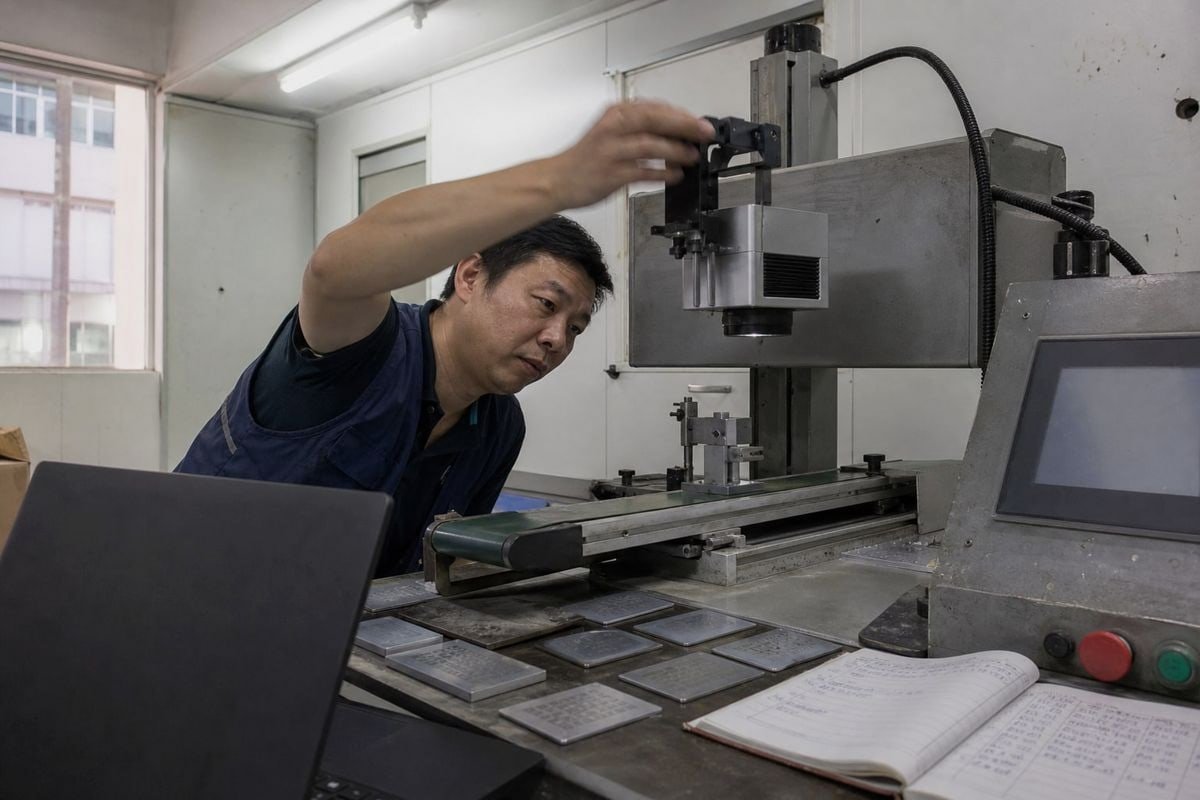

Hidden costs include unplanned downtime, slow service response, spare parts availability, electricity, integration rework, safety compliance, and depreciation. Five-year comparisons show downtime losses ranging from $500 on reliable branded systems to $5,000 on low-cost OEM machines.
Downtime costs rarely appear on any quotation. unplanned downtime 6 Yet they often decide which machine is truly cheaper over five years. Let me walk through the hidden layers one by one.
Downtime and service response
A marking station usually sits upstream of packaging, traceability, or shipment. When it stops, everything behind it stops. The key questions are: How fast does your supplier respond? Are spare parts stocked? Can faults be diagnosed remotely? We keep common spares — protective windows, control boards, galvo components — ready to ship, and we resolve most issues by video call within a day. A bare-metal import with no support channel cannot offer that, and the difference shows up as thousands of dollars in lost production.
Electricity and daily operating expenses
Fiber lasers are efficient. A typical 20–50W marking system draws under 1 kW in operation. Electricity is a small but real line item — usually a few hundred dollars per year in continuous use. CCD adds negligible power draw, so energy is not where vision systems change the equation.
Compliance, spares, and end-of-life
Safety enclosures, interlocks, fume extraction, and operator protection carry costs, especially in regulated industries. Budget them upfront rather than retrofitting later. Also remember residual value: a recognized brand retains resale value at end of life, while a no-name machine often resells for scrap price. That recovered cash offsets part of the higher acquisition cost. Depreciation affects your accounting; resale affects your real cash — both belong in a proper TCO model.
My practical advice: ask every supplier for a written 5-year cost estimate covering spares, service terms, and response times. total cost of ownership 7 If they cannot provide one, that silence is itself a data point.
Conclusion
Sticker price is one chapter, not the whole story. Add installation, consumables, maintenance, labor, and downtime risk, subtract residual value — then compare machines honestly. If your production is high-mix or automated, the CCD premium usually pays for itself within months. Send me your part samples and production details, and our engineers will build a real 5-year TCO model for your line.
