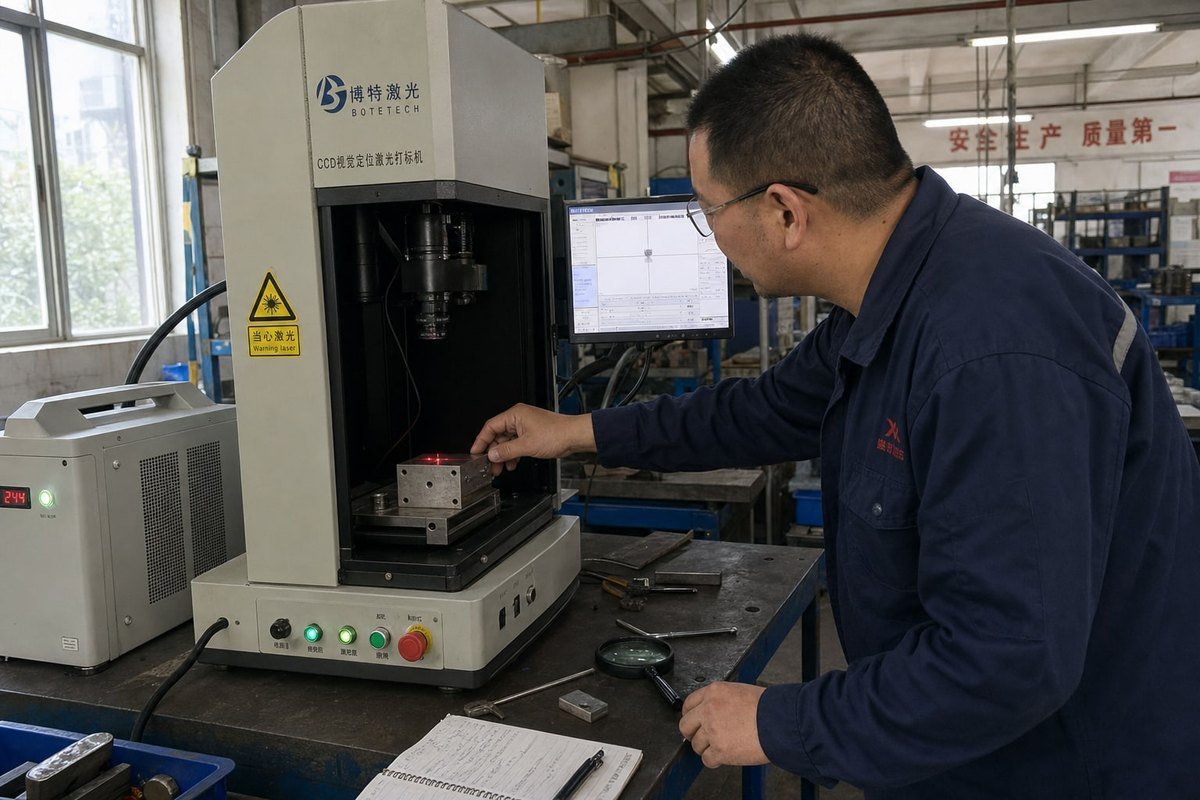

Verify a CCD laser marking machine’s anti-shake by running a repeatability shake test with reference and verification crosses, and verify auto-focus by marking stepped or uneven samples at different heights. Passing means overlapping marks and consistently sharp engraving across all positions.
These two functions are measurable behaviors, not marketing promises. Below, I will walk you through the exact tests we run in our own workshop before any machine ships out.
What Tests Can I Run to Confirm the CCD Camera Stays Stable During Vibration?
A customer from Turkey once video-called our workshop and asked us to shake the worktable while the camera tracked a target. That request became part of our standard demo.

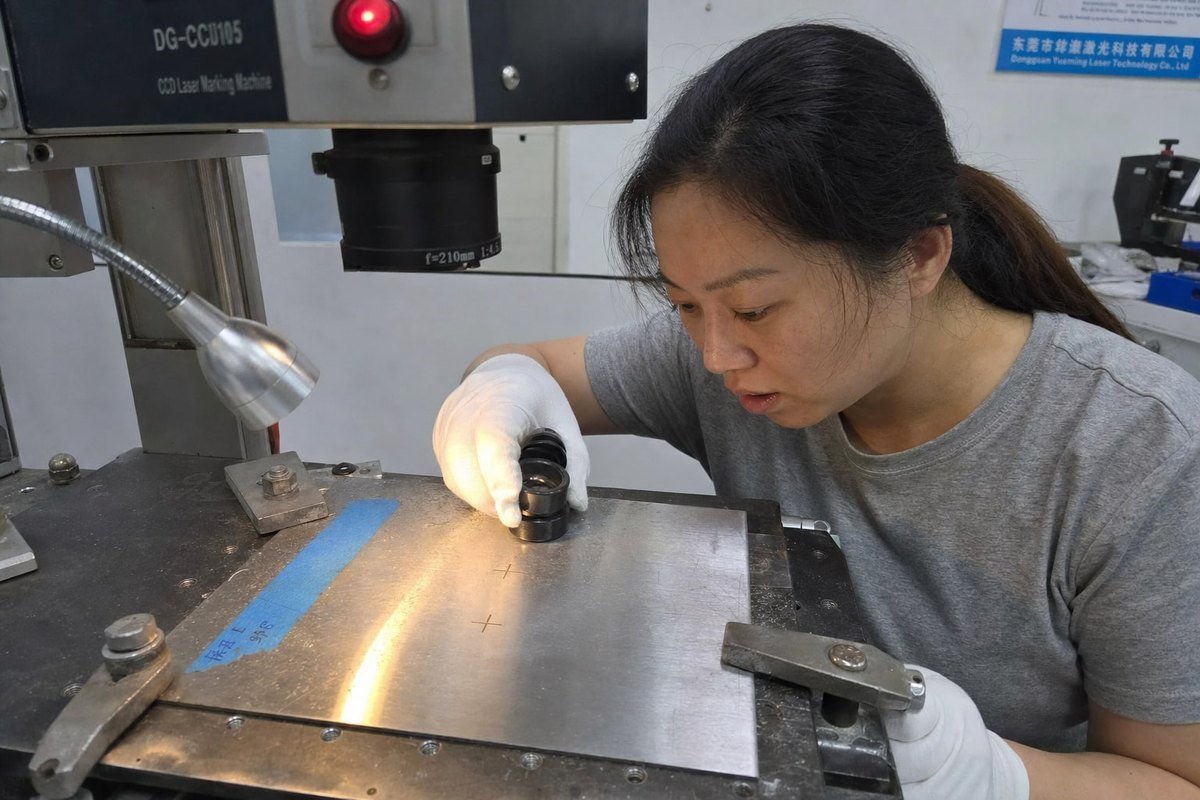

Run a shake test: mark a reference cross at low speed, apply rapid back-and-forth motion on one axis, return to zero, then mark a verification cross. If both crosses overlap within tolerance, the vision positioning system and mechanics pass the stability check.
The core idea is simple. Anti-shake is really motion repeatability plus image stability. So you need to test both the mechanical side and the camera side. In our experience exporting to markets like Germany and the USA, buyers who test both sides catch problems that single tests miss.
The Mechanical Repeatability Test
Follow this sequence:
- Engrave a small reference cross at low speed.
- Command rapid small movements along the X axis, then the Y axis.
- Return the system to the zero position.
- Engrave a second verification cross.
- Measure the offset between the two crosses under magnification.
If the crosses do not superimpose, the machine failed. The cause could be belt tension, loose couplings, or a galvanometer scanner 1 that overshoots under acceleration. A solid vibration damping base also matters here, because floor resonance can transfer straight into the optical path.
The Camera Drift Test
Place a high-contrast calibration target 2 under the CCD camera. Then watch the software's reported center coordinates for about 60 seconds. Fluctuation beyond roughly half a pixel suggests mechanical instability or electrical noise, not a camera fault.
| Test | Tool Needed | Pass Criterion |
|---|---|---|
| Shake test (crosses) | Loupe or microscope | Crosses overlap visibly |
| Coordinate drift | Calibration target | Under ~0.5 pixel drift in 60s |
| Floor vibration | Vibrometer or accelerometer | Below machine's damping threshold |
| Lighting stability | Bandpass filter check | No shutter aliasing in image |
One overlooked culprit is flickering LED lighting. It can create shutter aliasing that mimics mechanical shake. A bandpass filter on the lens isolates the issue quickly.
How Do I Check if the Auto-Focus System Adjusts Accurately on Uneven Surfaces?
Before we ship any unit from Dongguan, our engineers run a stepped-block trial. It takes twenty minutes and exposes weak focal correction faster than any spec sheet.
Check auto-focus by marking a stepped sample with two or more heights, timing how fast the Z-axis stabilizes, and confirming every mark stays equally sharp. Also verify the dual red light pointers converge into one dot after each auto-focus cycle.
First, confirm what type of auto-focus the machine actually has. Some systems use a distance sensor with Z-axis motor control. Others rely on the vision system estimating height. Ask the supplier directly, because the verification method differs. This is a point I always tell buyers to write down before testing.
Step-by-Step Verification Workflow

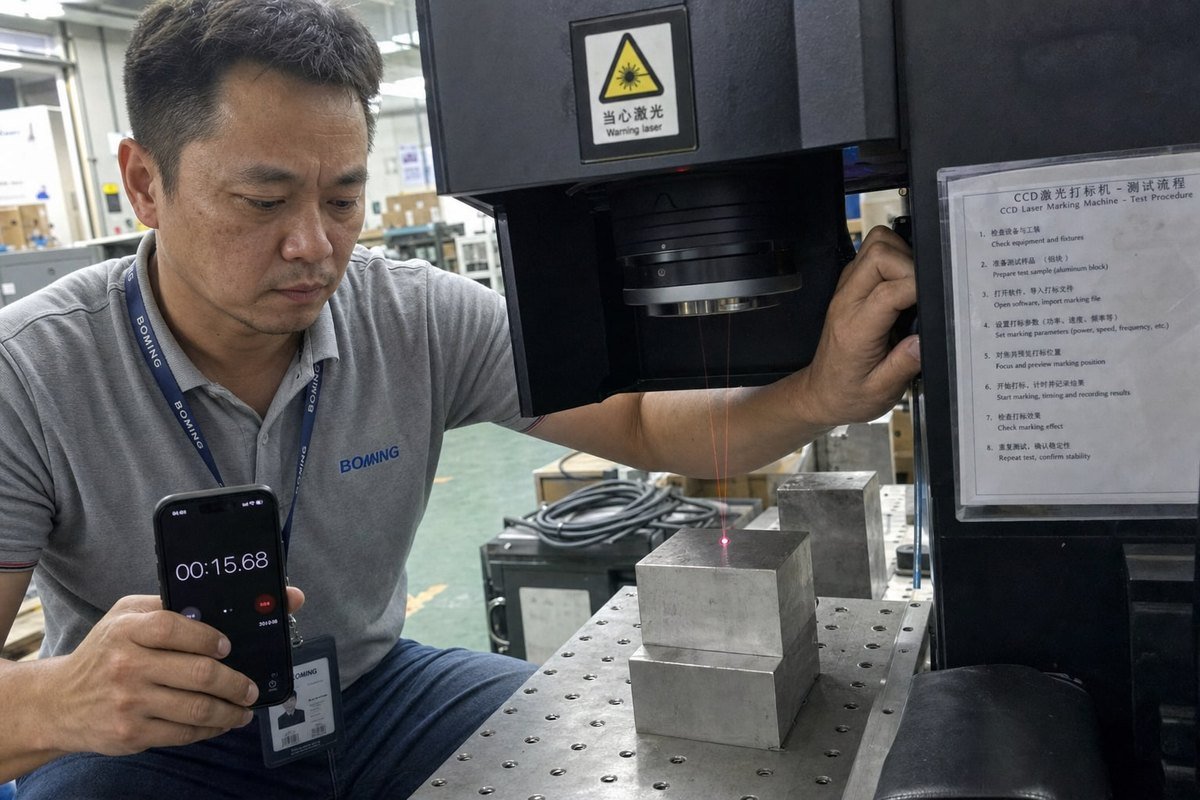

- Run focal length calibration using the software's focus wizard. Confirm the Z-axis zero point matches a physical measurement with calipers.
- Perform the material focus ladder test. Mark a series of lines at incremental Z heights. The thinnest, cleanest line reveals the true focal point. Compare it against what the sensor reports.
- Place a stepped block with two known heights under the head. Trigger auto-focus on each level. Time the settling latency from trigger to lock.
- Check the dual red light convergence. After each cycle, the two pointers must meet in a single sharp dot on the surface.
- Repeat the whole cycle five times per height. Sharpness and line width should not vary.
What the F-Theta Lens Adds to This
Remember that the F-theta field lens 3 has a limited depth of focus. Auto-focus must bring the surface inside that window every time. If marks are sharp in the center but soft at the field edges, the issue may be optical alignment verification, not the focus sensor itself.
A pass means every mark on every level looks identical. A fail means blurry edges, wider lines, or shallow contrast on one height.
Which Sample Materials Should I Use to Evaluate Anti-Shake and Focus Precision?
There is a trade-off I weigh every time I prepare test samples for a client demo: forgiving materials make the machine look good, while unforgiving materials tell the truth.

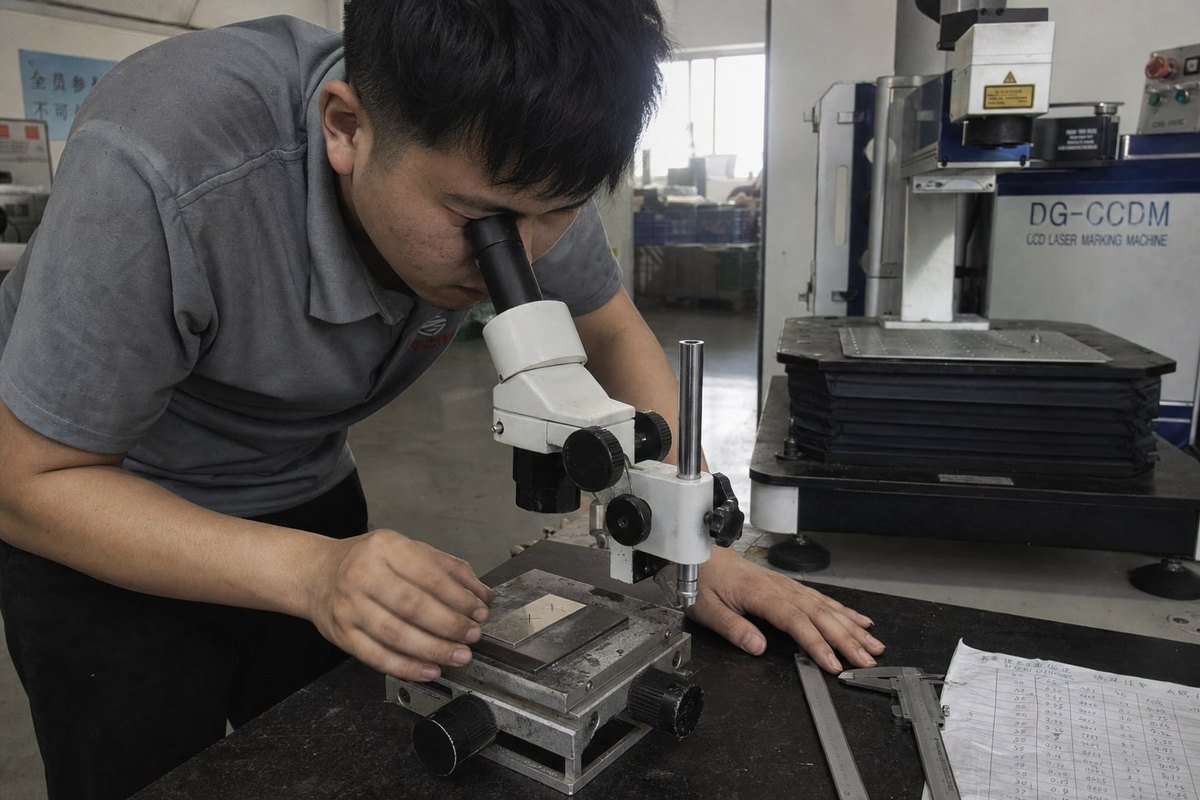

Use anodized aluminum for fine-detail repeatability, stainless steel for focus sensitivity, stepped ABS plastic for height-change response, and curved or irregular parts for vision recognition. High-contrast, low-tolerance materials expose anti-shake and focus errors that soft materials hide.
Material choice is not a minor detail. It decides whether your test can even detect a fault. In our factory, we keep a fixed sample kit for acceptance tests, and I recommend buyers request the same kit or bring their own production parts.
Recommended Sample Kit
| Material | What It Tests | Why It Works |
|---|---|---|
| Anodized aluminum 4 | Marking repeatability, fine lines | High contrast makes micron-level offsets visible |
| Stainless steel 5 | Focus precision | Color-change marks shift dramatically when out of focus |
| Stepped ABS plastic | Auto-focus response | Two-height block forces real Z-axis correction |
| PCB or small electronic parts | Image recognition accuracy | Small features stress the vision algorithm |
| Curved or irregular metal parts | Combined anti-shake plus focus | Simulates real production variation |
How to Use Each Sample
On anodized aluminum, run the double-cross shake test. The dark contrast makes even a slight offset obvious. On stainless steel, mark identical patterns at several placements. Stainless is unforgiving; a small focal error changes the mark color from crisp black to weak gray.
For plastics, watch for melting or burring, which appears fast when focus drifts. For PCB samples, test template recognition stability by rotating the board at various angles inside the field of view. The software should lock onto the fiducial features without coordinate drift.
One more tip from our export experience: always test with your actual production parts too. A machine tuned beautifully on flat aluminum may still struggle with your specific glossy or textured surface. Camera exposure, gain, and contrast may need adjustment per material, and that tuning session is part of a fair evaluation.
What Warning Signs Indicate My CCD Laser Marking Machine Has Faulty Auto-Focus or Anti-Shake Performance?
A buyer from Vietnam once sent me photos of marks that wandered a millimeter between batches. His previous supplier blamed the operator. The real cause was a loose galvanometer mount that ten minutes of inspection would have found.
Warning signs include drifting mark positions between batches, inconsistent line thickness across one part, blurry edges after height changes, red pointers that no longer converge, recognition hunting in the software, and marks that shift after rapid production cycles.
Catching these signs early saves scrapped parts and downtime. The key skill is knowing which symptom points to which subsystem, because a failed verification does not automatically mean the laser source is weak.
Symptom-to-Cause Reference
| Warning Sign | Likely Subsystem | First Check |
|---|---|---|
| Marks drift after fast cycles | Mechanics / motion | Belt tension, couplings, mounting bolts |
| Blurry marks after height change | Auto-focus | Focal length calibration, Z-axis motor control |
| Random position jumps | Electrical | Grounding, cable routing, signal interference |
| Recognition keeps hunting | Vision | Lighting, exposure and gain, calibration card pixel size |
| Soft edges only at field corners | Optics | F-theta field lens cleanliness and alignment |
| Marks vary by time of day | Environment | Ambient sunlight, flickering lights near the camera |
How to Isolate the Root Cause
Work from mechanics outward. First, rerun the shake test with the vision system disabled. If repeatability fails, the problem is mechanical, so tighten and dampen before touching software. Second, rerun with vision enabled but at fixed height. If positions drift now, recheck camera calibration and image recognition accuracy in your EzCad software 6 settings. Third, vary only the height. If sharpness collapses, the fault sits in the auto-focus chain.
Also watch for slowly developing symptoms. Optical contamination builds gradually, so line width creeps wider over weeks. We advise our customers to log a monthly reference mark on the same sample material. Comparing this month's mark to last month's mark turns vague suspicion into hard evidence, and it gives you documentation if you ever need warranty support.
Conclusion
Anti-shake and auto-focus are testable, not takeable on faith. Run the shake test, focus ladder, and stepped samples before you buy, and write acceptance criteria into your purchase contract.
