A spec sheet once promised ±0.01 mm accuracy; the delivered unit drifted past that. On our Dongguan line, verifying a CCD laser marking machine supplier’s specs is survival, not paranoia.

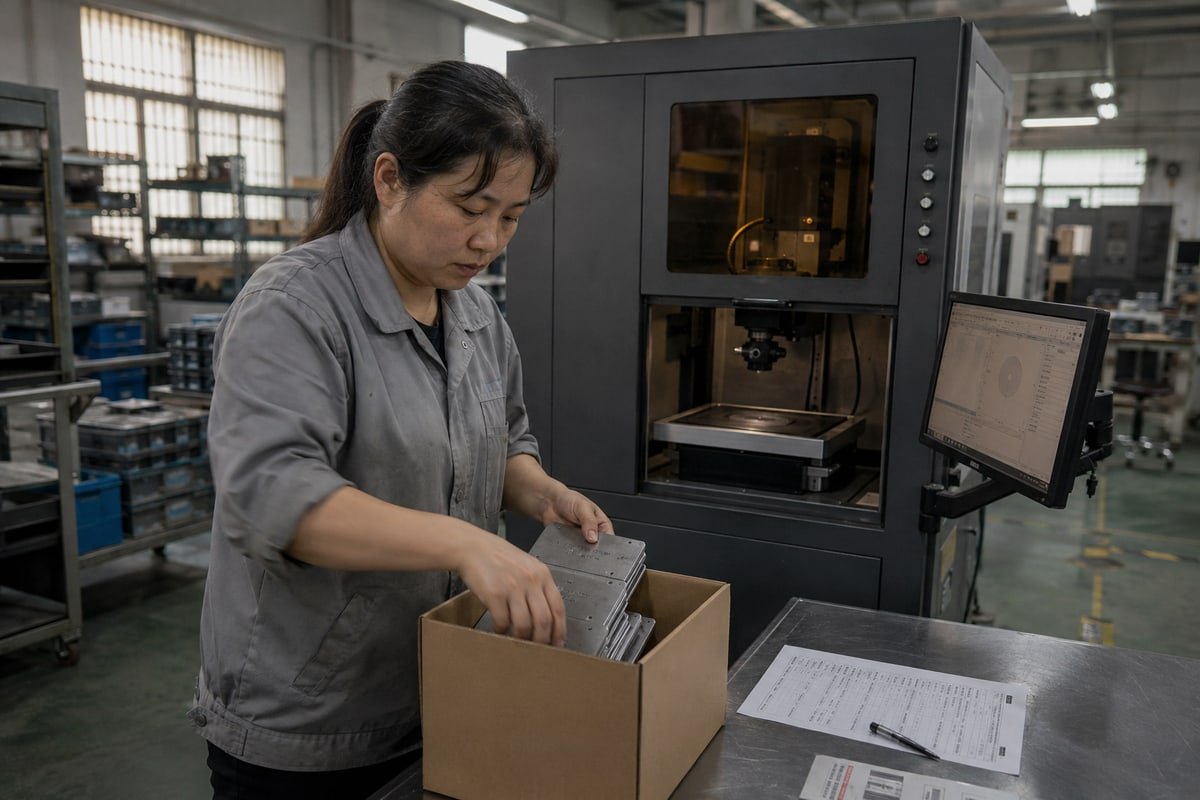

Verify a CCD laser marking machine supplier’s specs by sending sample parts to an accredited third-party lab, testing positioning accuracy and repeatability against the technical data sheet, checking laser and camera serial numbers, reviewing past reports for the same model, and writing results into the contract.
That answer packs five steps into one sentence. Each step deserves its own explanation. Below, I walk through the labs, the comparisons, the documents, and the live tests, in the order a careful buyer should tackle them.
What third-party labs can I trust to test CCD laser marking accuracy claims?
A buyer from Italy asked me last spring which lab he should trust before wiring his deposit. My honest answer surprised him: the lab's accreditation matters more than its name.

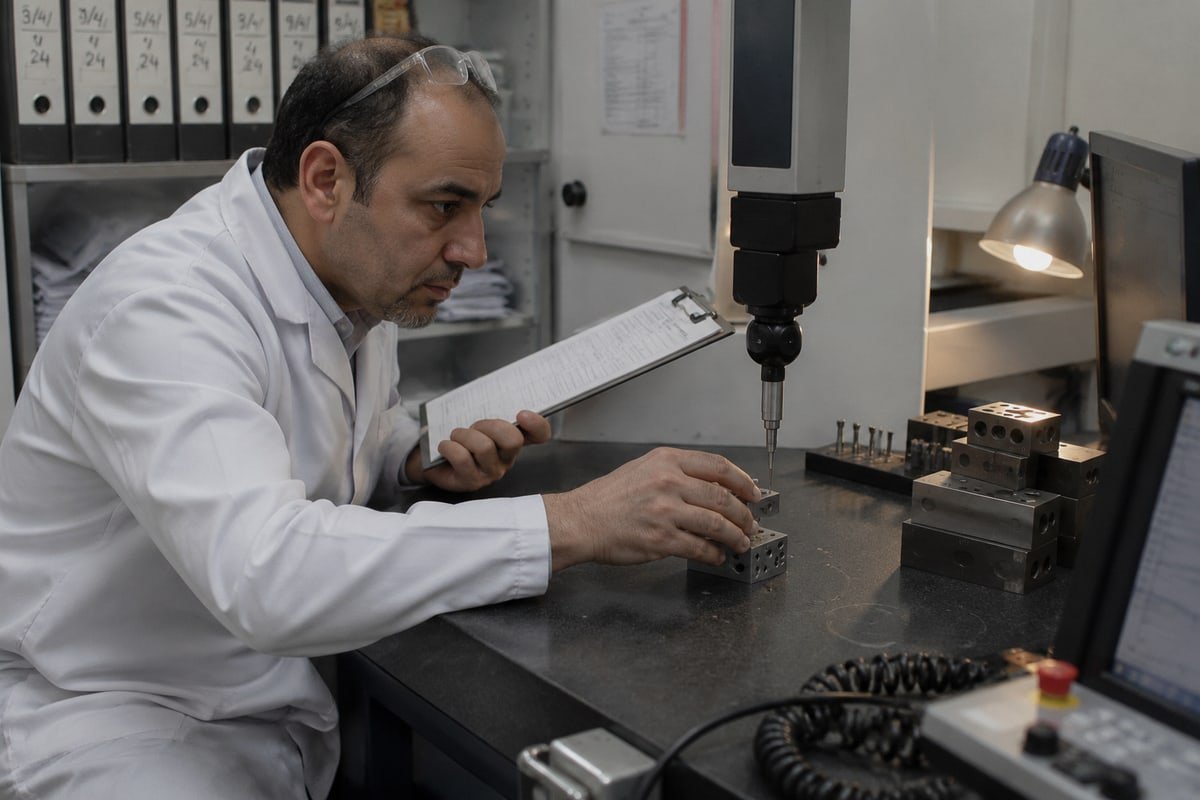

Trust labs holding ISO/IEC 17025 accreditation for dimensional metrology, such as SGS, TÜV, Intertek, or national metrology institutes. For laser safety, use bodies accredited to test IEC 60825-1. Always confirm the lab's accreditation scope covers positioning accuracy and optical measurement.
Not every famous lab can test every claim. A lab that excels at electrical safety may have no equipment for micron-level dimensional work. So the first filter is simple. Ask the lab for its accreditation scope document. Then check that the scope lists the exact measurement type you need. For CCD accuracy claims, that means calibrated vision blocks and 2D measurement systems capable of resolving the supplier's micron-level precision figures. A metrology inspection report from a lab without that equipment is just expensive paper.
Match the Lab to the Claim
Different claims need different labs. I break it down like this for my own customers before they book anything.
| Claim to Verify | Lab Type | What to Confirm First |
|---|---|---|
| Positioning accuracy (±0.01–±0.1 mm) | ISO/IEC 17025 dimensional metrology lab | Calibrated vision blocks, 2D measurement capability |
| Laser class and safety | Body accredited for IEC 60825-1 / EN 60825-1 | Scope covers laser radiation measurement |
| CE, FDA/CDRH, FCC compliance | Notified body or NRTL for the destination region | Approval valid for your specific market |
| Long-term stability | Lab with environmental and vibration chambers | High-temperature and humidity test capacity |
Questions That Expose a Weak Lab
Before paying, I suggest three direct questions. Can you measure repeatability, not just single-shot accuracy? Do you calibrate your reference standards traceably? Will the report state test conditions, standards used, and pass/fail criteria? A confident lab answers all three fast. A weak lab talks about turnaround time instead. Also remember that vision system calibration on the machine itself is separate from the lab's own calibration. Both must be documented, or the numbers cannot be compared honestly.
How do I compare my supplier's specs sheet against independent test results?
During an outgoing inspection last year, our QC team caught a subcontracted lens that did not match the build sheet. That catch changed how I read every spec comparison since.
Compare line by line: match the model and serial numbers on the report to your quote, then check measured positioning accuracy, repeatability, marking speed, and capture time against the technical data sheet. Flag any spec tested under conditions different from your production environment.
Brochure figures are best-case numbers. Vendors measure them under ideal settings, with perfect samples, and with the fastest lens in the catalog. Independent results almost always land lower. That gap is normal. The question is how big the gap is, and whether the supplier disclosed the test conditions. My rule: a spec without stated conditions is a marketing line, not a specification.
Read the Numbers in Context
Here is how common claims stack up against what a third party should actually measure.
| Spec on the Data Sheet | Typical Claim | What Independent Testing Should Confirm |
|---|---|---|
| Positioning accuracy | ±0.01 mm to ±0.1 mm | Measured accuracy on calibrated blocks, plus repeatability over many cycles |
| Capture/positioning time | Around 200 ms | Real latency including image recognition software processing |
| Marking speed | ≤7000 mm/s | Marking speed validation with your material and your marking files |
| Wavelength and power | 1064 nm, 20W–100W options | External power meter reading matching the ordered configuration |
| Marking field | 80×80 mm up to 175×175 mm | Accuracy at the field edges, not just the center |
Repeatability and precision matter more than a single lucky measurement. A machine that hits ±0.02 mm once but scatters to ±0.08 mm over a shift will ruin a production batch.
Verify the Hardware Behind the Numbers
In my own verification checklist 1, I always cross-check the laser source and camera against their original manufacturer serial numbers. I contact the laser brand and the camera brand 2 directly and confirm the serial numbers are genuine and match the claimed model. A spec comparison is worthless if the delivered machine carries a lower-grade source than the one that was tested.

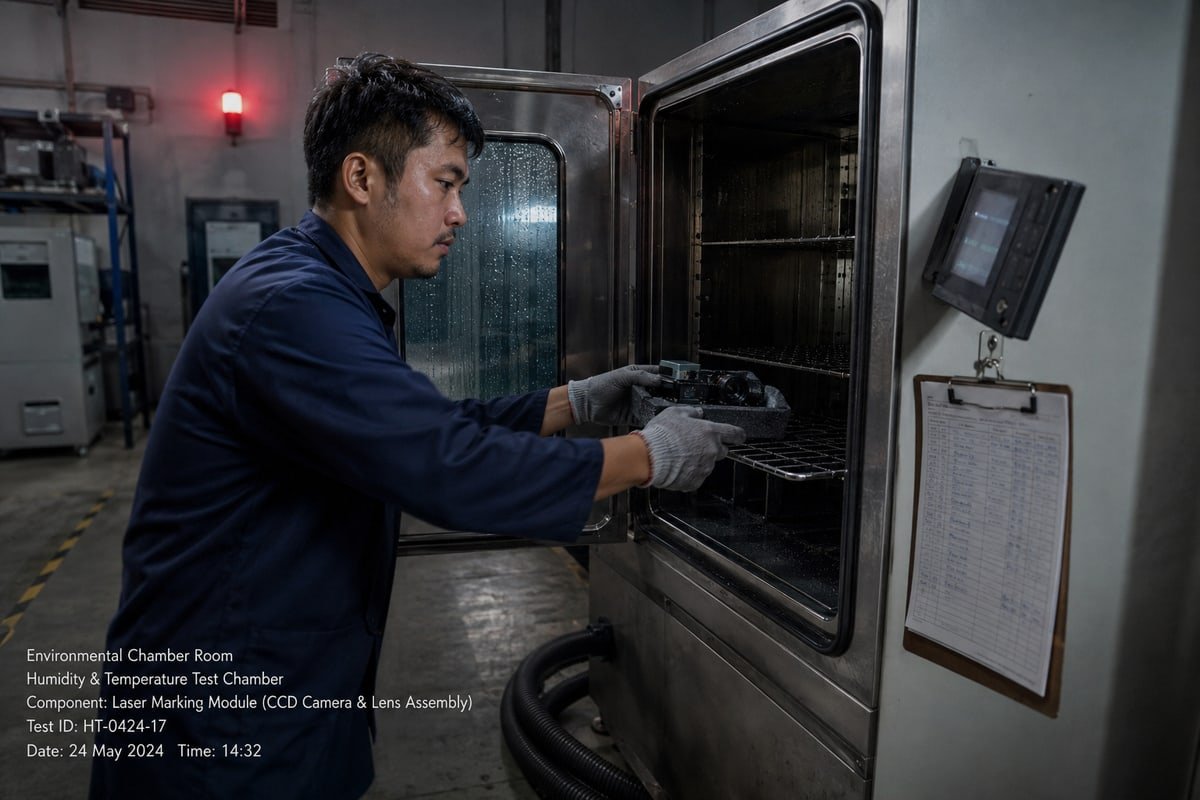

What documents should I request before paying for third-party verification?
One lesson cost me a delayed shipment early in my export career: I paid a lab before collecting the supplier's paperwork, and the test stalled for three weeks.
Request the technical data sheet, product manual, circuit diagrams, BOM, laser path diagram, laser head specifications, safety labels, QA process flowcharts, and any past third-party test reports for the same model. Complete paperwork lets the lab quote accurately and test faster.
Labs cannot test what they cannot understand. For EN 60825-1 laser safety certification, the required document package is substantial: manuals, schematics, PCB layout, BOM, laser path diagrams, labels, QA flowcharts, and stress-test records. If your supplier cannot produce these files quickly, that itself is a test result. At our factory, we keep this package ready for every export model, because buyers in the UK, Germany, and the USA ask for it before anything else.
The Full Request List
| Document | Why It Matters | Red Flag If Missing |
|---|---|---|
| Technical data sheet | Baseline for every performance comparison | Supplier relies on brochure claims only |
| Circuit diagrams and PCB layout | Required for safety compliance testing | Machine may be assembled from untraceable parts |
| BOM with laser head specs | Confirms the exact source, lens, and camera | Component substitution is likely |
| Laser path diagram | Needed for laser class determination | Enclosure safety claims are unverifiable |
| QA process flowcharts | Shows the quality assurance protocol behind production | No repeatable build process exists |
| Past third-party reports, same model | Proves the model has survived independent scrutiny before | You are the first real test case |
That last row comes straight from my own practice. Before any new verification, I pull every historical third-party report for the same model and read them side by side. Consistent past results tell me the design is stable. I also ask for ISO 9001 documentation, but I treat ISO certification standards 3 as evidence of process discipline, not machine performance. A certified factory can still ship a bad unit. The documents narrow the risk; only a metrology inspection report on your actual configuration closes it.

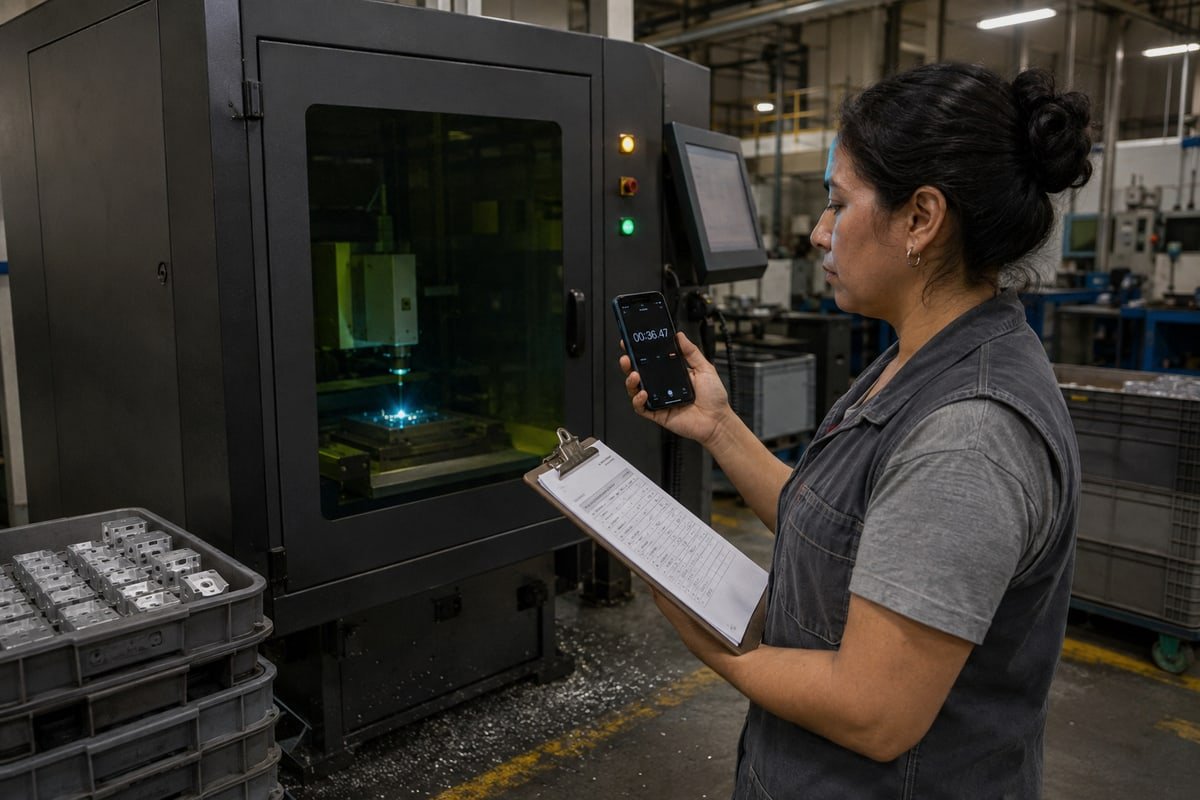

Can I request a live sample test to confirm CCD positioning precision myself?
Every month I weigh the same trade-off with overseas buyers: fly to Dongguan for a witnessed test, or run it live over video. Both work if the protocol is strict.
Yes. Ask for a live factory acceptance test on your own sample parts. Watch the CCD system locate randomly placed pieces, mark at rated speed, and repeat the cycle many times. Measure the marks afterward and write the results into your purchase contract.
Our engineers run witnessed acceptance tests for buyers from Italy to Saudi Arabia, and the strongest tests always follow the same disciplined sequence. Supplier-chosen demo parts prove nothing. Your parts, placed randomly, prove almost everything. Here is the process I recommend.
- Send your real samples first. Include your worst parts: irregular shapes, small sizes, reflective metals, low-contrast plastics. High-reflectivity and low-contrast substrates expose the vision system's true dynamic range.
- Agree on acceptance criteria in writing. Define the accuracy target, the repeatability tolerance, and the pass/fail rule before the camera turns on. This is a factory acceptance test, not a demo.
- Randomize part placement. The CCD must find each part at a different position and rotation. Fixed jigs hide weak vision system calibration.
- Run long repeatability cycles. Dozens of cycles minimum. Track every capture time; advertised figures around 200 ms should hold under load, including image recognition software latency.
- Stress the environment. Change the ambient lighting to simulate factory floor lux swings. If the schedule allows, run a 24-hour power stability check with an external power meter and watch for thermal drift in laser-to-camera alignment as components heat up.
- Measure the marks independently. Verify mark position, depth, and legibility at the rated maximum speed, not a comfortable slower setting.
- Write the results into the contract. In my own deals, I insist that the verified test results become contract terms, with clear compensation clauses if the delivered machine underperforms. Tie the final payment to passing this verification.
A supplier who welcomes this process is telling you something. A supplier who resists it is telling you something too.
Conclusion
Spec sheets promise; independent tests 4 prove. Verify accuracy on real samples, check serial numbers, review documents, run a factory acceptance test, and lock results into your contract before paying.
