CE-LVD compliance for a CCD laser marking machine is easy to claim and hard to prove. On our Dongguan production line, we have seen buyers burned by fake certificates. One missed check can block your shipment at EU customs, void your insurance, or worse, put an operator at risk of electric shock. The good news: verification follows a clear, repeatable workflow that anyone can run.
To verify CE-LVD compliance for a CCD laser marking machine’s electrical system, check the nameplate CE marking, grounding, and emergency stop; request electrical wiring diagrams, the risk assessment, the original LVD test report, and the EU Declaration of Conformity; and confirm the machine follows the EN 60204-1 standard.
That is the short answer. Below, I break each step into practical actions you can take before you pay a deposit or accept delivery.
What documents should I request from the supplier to confirm CE-LVD certification is genuine?
A buyer from Italy once sent me a competitor's "CE certificate" and asked if it was real. It was a one-page PDF with no test data behind it. That moment shaped how we prepare export files at our factory.
Request five documents: the EU Declaration of Conformity citing directive 2014/35/EU, the original LVD test report, complete electrical wiring diagrams, the machinery risk assessment document, and the technical construction file index. A genuine supplier can provide all five within days, not weeks.
Here is the key point most buyers miss. CE-LVD compliance is not a single certificate you can frame on a wall. Under the Low Voltage Directive 1, it is a self-assessed conformity process backed by evidence. The legal responsibility sits with the manufacturer, not with a lab. So a lone certificate proves very little. The evidence trail proves everything.
The five-document verification list
When we prepare a CCD laser marking machine for export to Germany, Italy, or Sweden, we build the file in this order:
| Document | What it proves | Red flag if missing |
|---|---|---|
| EC Declaration of Conformity | The manufacturer legally declares conformity and cites 2014/35/EU | No directive number, no signature, no model number |
| Original LVD test report | Actual electrical safety tests were performed | Only a "certificate" with no test data attached |
| Electrical wiring diagrams | The delivered machine matches the assessed design | Diagrams that do not match the shipped configuration |
| Machinery risk assessment | Electrical hazards were identified and controlled | Generic template with no machine-specific hazards |
| Technical construction file 2 index | A full dossier exists and is retained | Supplier refuses or delays for weeks |
Match the paperwork to the actual machine
Check three details on every document. First, the model number must match your exact machine variant, including the CCD vision option. Evidence written for a prototype or a generic platform does not cover your delivered unit. Second, the Declaration of Conformity must name the manufacturer and an authorized signatory. Third, the standards list should include the EN 60204-1 standard for machine electrical equipment.
One more legal detail worth knowing: manufacturers must retain the technical documentation for 10 years after placing the equipment on the EU market. If your supplier cannot commit to that, walk away.
How can I check if the electrical components inside my laser marking machine meet LVD safety standards?
During a factory acceptance test last year, an engineer from a UK customer opened our control cabinet before he even looked at the marking sample. Smart move. The inside of the cabinet tells the truth faster than any brochure.

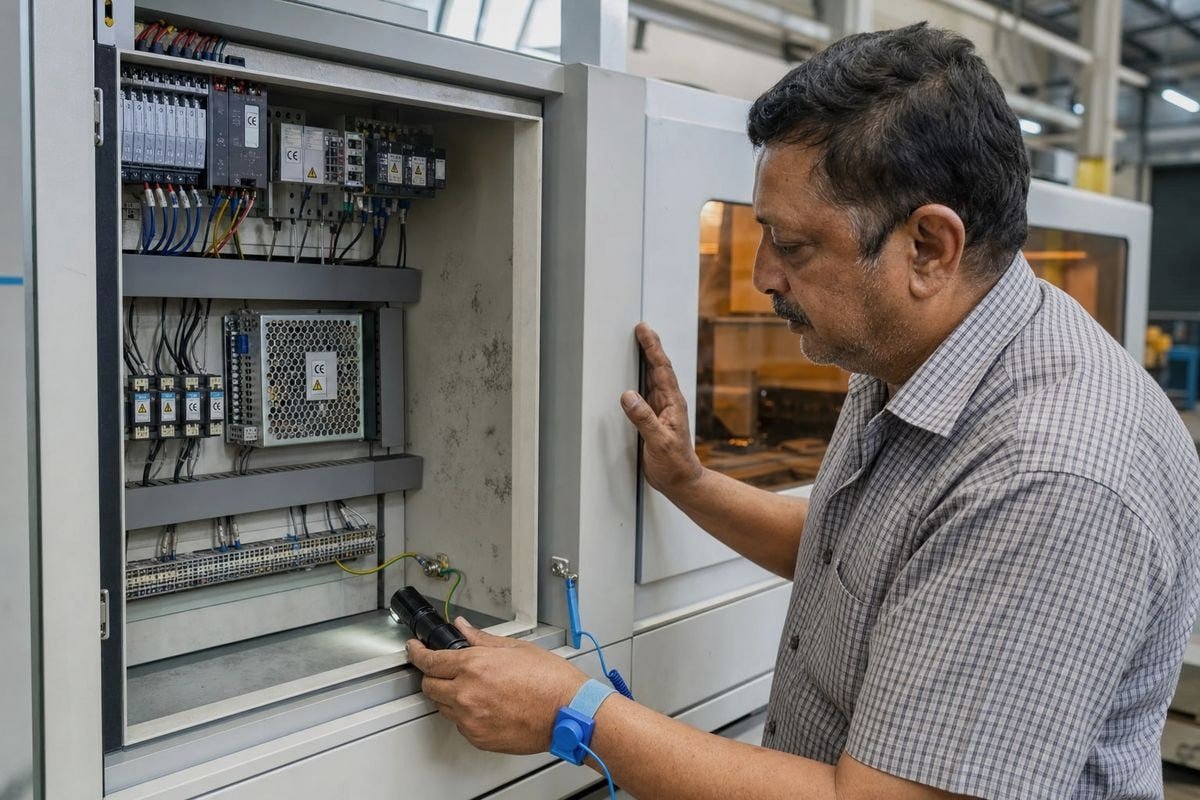

Open the control cabinet and inspect the protective bonding circuit, grounding points, wire segregation, overcurrent protection, and component labels. Verify that power supplies and interlock relays carry individual CE markings, and confirm all components are rated for the machine's total current load.
The Low Voltage Directive covers electrical equipment operating between 50–1000V AC or 75–1500V DC. A typical CCD laser marking machine runs on 220V single-phase or 380V three-phase input, so it sits squarely inside LVD scope. But the scope of your check is wider than the laser source. It covers the whole electrical architecture: the incoming power interface, wiring, control circuits, safety interlocks, the emergency stop chain, enclosures, grounding, power supplies, and the CCD vision electronics.
Start with the nameplate and the basics

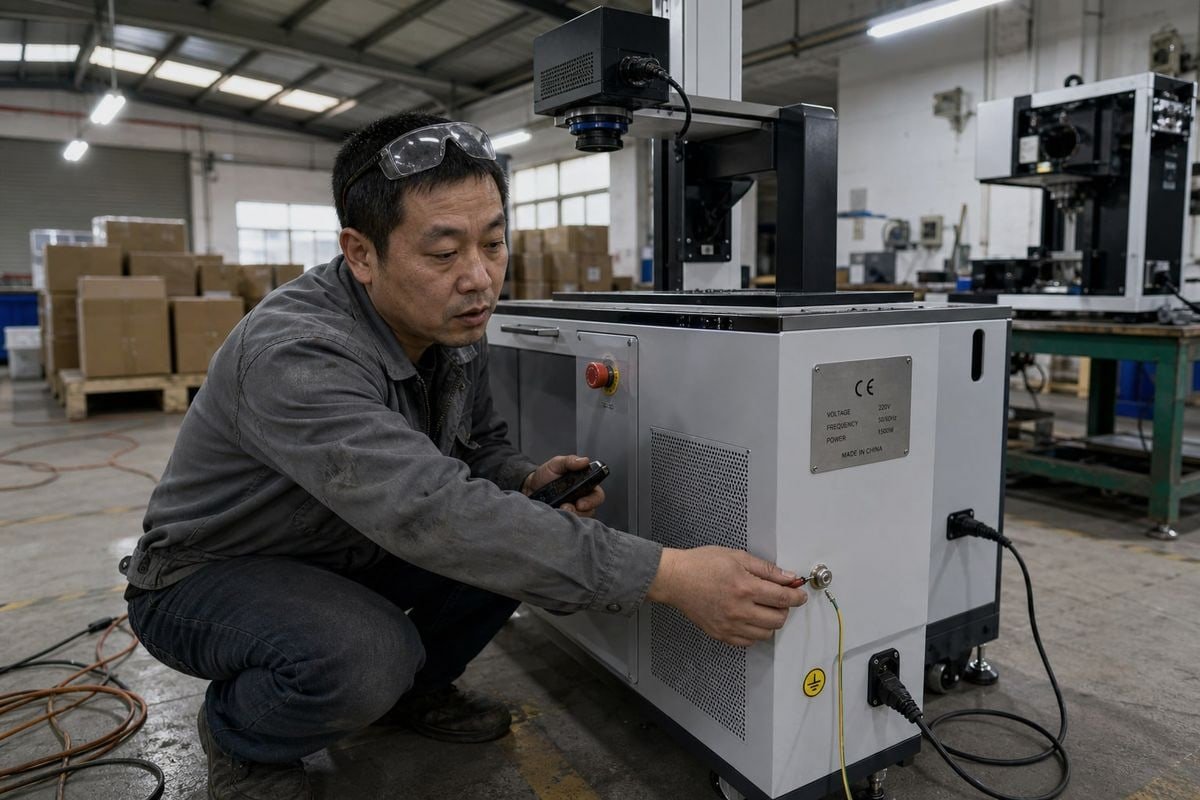

My own three-point quick check, which I run on every machine before it ships: verify the CE marking 4 on the nameplate, test the grounding connection, and press the emergency stop while the machine runs. If any of these three fails, nothing else matters.
Component-level checks that matter
Critical components deserve individual attention. Every power supply, contactor, and interlock relay inside the cabinet should carry its own CE marking. Beware of "CE-style" lookalike marks on cheap sub-components from unverified suppliers. This is a real problem with third-party vision modules. Run a certificate authenticity audit on the CCD camera and its controller. Ask for the sub-component LVD declarations, and check that the issuing body actually exists.
Two CCD-specific issues deserve extra care. First, high-frequency noise from the CCD vision processing unit must be electrically isolated so it does not interfere with safety-critical grounding paths or push leakage current past acceptable thresholds. Second, check heat. CCD electronics packed into a compact enclosure dissipate real heat, and localized hot spots can degrade cable insulation over time. On our automated lines, we route vision cables separately from power cables and use shielded, grounded conduits for exactly this reason.
Also confirm the wiring inside the cabinet matches the electrical wiring diagrams in the technical file. A machine can pass every bench test and still be noncompliant if the shipped wiring differs from the assessed schematic.
Which specific tests should I ask my supplier to perform for CE-LVD compliance verification?
There is a trade-off we weigh on every export order: testing takes time, and buyers want fast delivery. We still refuse to skip the electrical safety tests, because a failed grounding continuity test found in Dongguan costs an hour; the same fault found in a customer's workshop costs a reputation.
Ask the supplier to perform and document five tests: grounding continuity test on the protective bonding circuit, insulation resistance testing, dielectric strength test, residual voltage protection check, and functional testing of the emergency stop and safety interlock circuits, all per the EN 60204-1 standard.
Each test maps to a real hazard, not just a checkbox. Here is how the tests connect to what can actually go wrong on a CCD laser marking machine:
| Test | Method | Typical acceptance criterion | Hazard it prevents |
|---|---|---|---|
| Grounding continuity test | Low-resistance measurement across the protective bonding circuit | Very low resistance from any exposed conductive part to the earth terminal | Electric shock from touchable metal parts |
| Insulation resistance testing | Megohmmeter test between live circuits and earth | High resistance value per EN 60204-1 | Leakage current, fire, gradual insulation failure |
| Dielectric strength test | Hi-pot voltage applied between live parts and earth | No breakdown or flashover during the test | Insulation collapse under voltage stress |
| Residual voltage check | Measure voltage decay after power-off | Voltage drops to a safe level within the required time | Shock from stored energy in capacitors |
| E-stop and interlock functional test | Trigger every safety device in real operating modes | Laser and motion stop reliably every time | Unintended laser emission, uncontrolled motion |
Test the machine as a system, not on a bench
A CCD machine adds a layer most suppliers ignore. The software-based laser triggers driven by the vision system must be secondary to the hardware safety circuits. In plain terms: the CCD software must never be able to override the hardwired emergency stop or the Safe Torque Off circuit. Ask your supplier to demonstrate this. Have them trigger a marking cycle through the vision system, then hit the e-stop mid-cycle. The laser must stop through hardware, regardless of what the software commands.
I also recommend asking for thermal imaging during verification. A thermal camera scan of the running cabinet reveals whether heat from the CCD electronics or power supplies is stressing insulation inside the compact enclosure. It takes ten minutes and catches faults that no static test can find.
Finally, demand records. Every test result belongs in the technical construction file with the date, instrument used, measured value, and pass/fail judgment. Verification means inspection, measurement, and functional testing together — never paperwork alone.
Can I trust a CE marking on my CCD laser marking machine without third-party lab verification?
A purchasing manager in Turkey once told me he only trusted machines with a "TÜV CE certificate." I had to explain something that surprises many buyers: for LVD, no third-party approval is legally required at all — which cuts both ways.
A CE marking alone is not sufficient proof. Because LVD conformity is self-declared under 2014/35/EU, no notified body is mandatory, so the mark is only as trustworthy as the technical file behind it. Verify the evidence trail, or commission an independent audit for high-value orders.
This is the point where honest suppliers and label-printers part ways. Anyone can affix a CE mark. The mark only carries legal weight when the manufacturer has completed the conformity assessment, compiled the technical file, and signed the EC Declaration of Conformity first. So your job as a buyer is to test the story behind the mark.
A practical trust framework
Here is the decision framework I share with our own customers:
| Situation | Trust level | What to do |
|---|---|---|
| Supplier provides full document set matching your machine variant | Reasonable | Cross-check details, verify test dates and signatory |
| Supplier provides only a certificate, no test report or diagrams | Low | Demand the full file; treat delay as a warning |
| Documents reference a different model or a "product family" | Low | Require evidence for your exact delivered configuration |
| High-value or safety-critical installation | N/A | Commission voluntary third-party testing or a pre-shipment audit |
How to spot the common failure points
Market-surveillance authorities in the EU find the same gaps repeatedly: incomplete technical documentation, a missing machinery risk assessment, unclear standard applicability, inadequate bonding or grounding, poor cable segregation, unverified emergency stop circuits, and a mismatch between the assessed design and the shipped machine. Any one of these can make a CE-marked machine legally noncompliant.
Two more traps deserve mention. First, LVD is not the whole CE picture for machinery. A CCD laser marking machine usually needs assessment under the EMC directive 5 as well, and the Declaration of Conformity should cite the LVD alongside the Machinery Directive. If the DoC lists only one directive, question it. Second, harmonised standards give a presumption of conformity, but only when the manufacturer actually applied them and documented it. Listing EN 60204-1 on paper while ignoring its clauses in the cabinet is a compliance failure waiting to be discovered.
For orders above a certain value, voluntary third-party verification is cheap insurance. It is not legally required, but it converts trust into measurement.
Conclusion
Fake certificates cost buyers real money and real safety. Verify the nameplate, grounding, and e-stop; demand the wiring diagrams, risk assessment, LVD test report, and DoC; confirm EN 60204-1. Evidence beats labels — every time.
