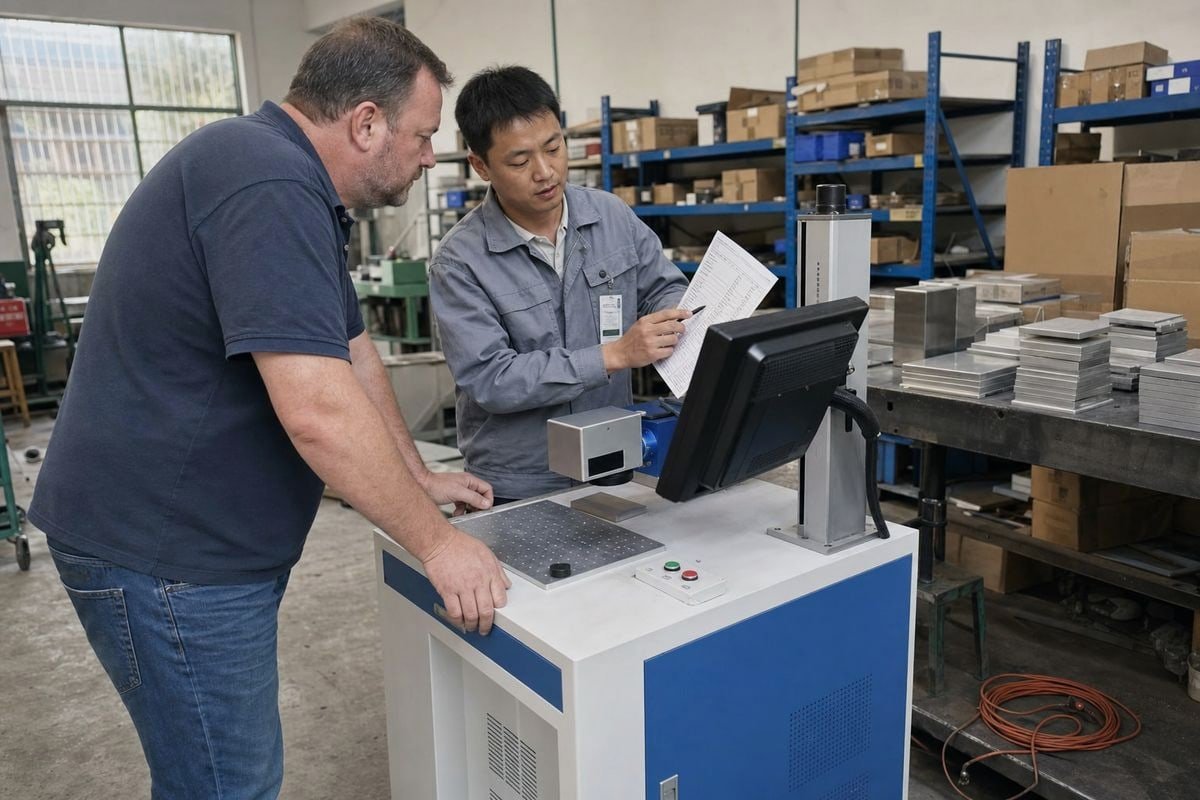

Buyers ask me about CCD laser marking machine 1 anti-shake and auto-focus almost weekly. Many were burned before — they paid for “CCD” and received a basic camera with no real compensation.
To check if a CCD laser marking machine has anti-shake and auto-focus, review the spec sheet for those exact parameters, inspect the control software for focus and stabilization settings, test workpieces of different thicknesses, shake the part during marking, and confirm results through a written sample acceptance test.
That is the short answer. Below, I break down each check step by step, so you can verify these features before you pay a deposit.
What Signs Tell Me the CCD System Has Reliable Anti-Shake Compensation?
Last year, a buyer from Italy sent us a video of a competitor's machine drifting off-target on his conveyor. The vendor had promised "anti-shake." The camera was real. The compensation was not.

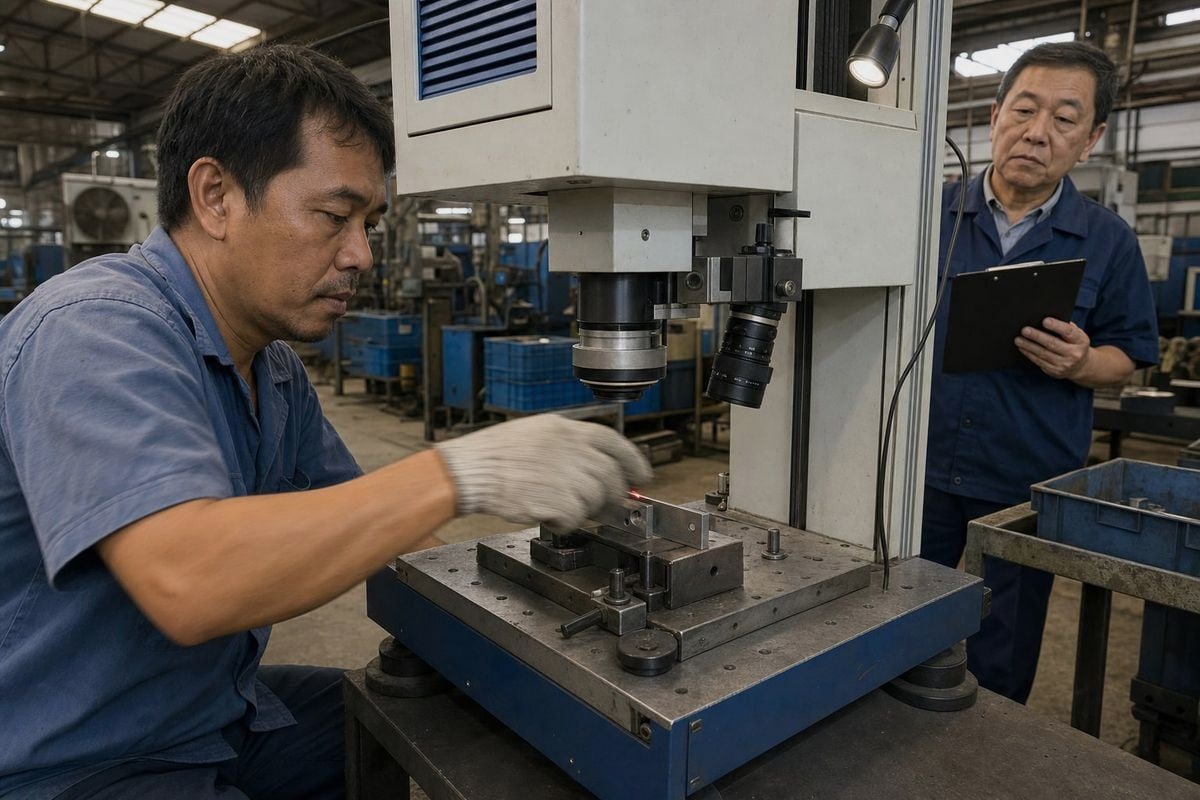

Reliable anti-shake shows up as visual positioning that corrects X, Y, and rotation offsets automatically, mark-on-the-fly support for moving parts, a high frame-rate industrial camera, and marks that stay accurate when you deliberately nudge the workpiece or run the conveyor.
Here is something important that many suppliers will not tell you. "CCD" only means the machine has a camera. It does not automatically mean anti-shake. A true visual positioning system 2 captures an image, recognizes the part, and corrects the marking path before the laser fires. That is compensation, not just observation.
Hardware Signs to Look For
Check the camera first. A serious system uses an industrial camera resolution 3 of 5MP or higher, mounted coaxially or at a fixed angle near the galvo scanner head. Our engineers in Dongguan always pair the camera with short exposure settings. Ultra-short shutter speeds and frame rates of 60fps or more prevent motion blur on moving lines. Some advanced systems also add an image stabilization algorithm on the software side, which digitally locks onto a moving target.
Also look at the machine base. Dampening pads or vibration isolation mounts 4 filter out floor and motor resonance. That is mechanical anti-shake, and it matters in busy workshops.
Software Signs to Look For
Open the machine vision software during the demo. Look for these functions:
| Software Feature | What It Indicates |
|---|---|
| Template matching | The camera recognizes and tracks the part shape |
| X/Y/theta correction | The system fixes position and rotation errors |
| Mark-on-the-fly mode | The machine marks moving parts on a conveyor |
| Exposure and gain controls | The camera can freeze fast motion without blur |
| Motion compensation settings | The software actively adjusts for jitter |
The simplest test comes from our own checklist: gently shake the workpiece or run the conveyor, then watch the marking position. If the red-light preview box follows the part in real time, the visual positioning system is active. If the mark drifts, the "anti-shake" claim is just marketing.
One honest caveat. Most systems do not cancel vibration continuously. They compensate for position error at the moment the image is captured. For static marking, that is usually enough. For high-speed conveyors, you need true mark-on-the-fly tracking.
How Do I Test the Auto-Focus Function Before Placing My Order?

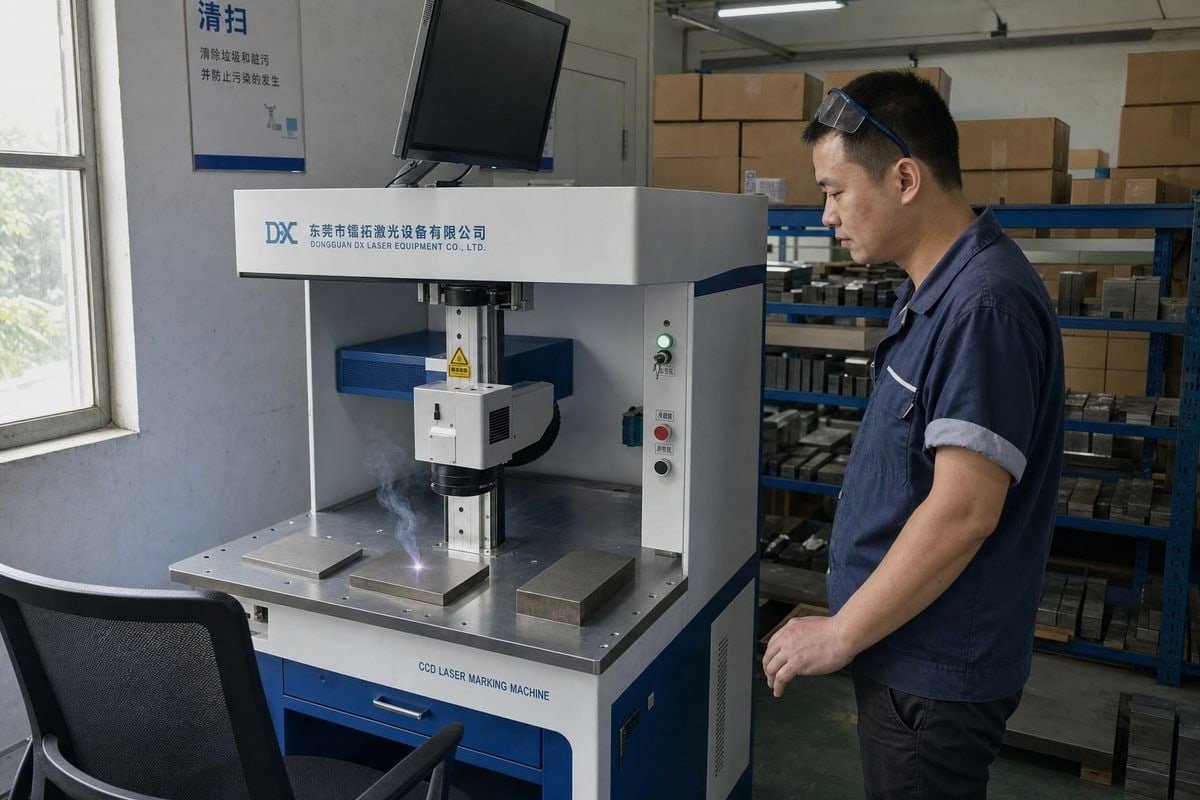

During factory acceptance tests at our Dongguan plant, we run one demonstration that never fails to convince buyers: we stack plates of three different thicknesses and mark all of them without touching the height adjustment.
Test auto-focus by marking workpieces of different thicknesses in sequence without manual adjustment. A true auto-focus machine triggers its motorized Z-axis or dynamic focus system automatically, and every mark stays equally sharp. Blurry marks on taller parts mean fixed focus.
Auto-focus sounds simple, but implementations vary widely. Some machines have a laser displacement sensor 5 that measures part height in real time. Others use an ultrasonic sensor. The cheapest "auto-focus" is actually a one-key preset that moves the column to a stored position — useful, but not adaptive.
The Three-Thickness Test
This is the test I recommend to every buyer, and it comes straight from our own acceptance procedure:
- Prepare three sample parts with clearly different heights — for example, 2mm, 10mm, and 25mm.
- Place the first part and let the machine mark it. Do not touch any settings.
- Swap in the second part. Watch the column. A real auto-focus system will move the motorized Z-axis 6 on its own until the focal length matches the preset value.
- Repeat with the third part.
- Compare all three marks under magnification. Sharpness and depth should be consistent.
If the operator reaches for a manual focus ruler between parts, the machine does not have auto-focus. It is that simple.
Testing Dynamic Focus on Uneven Surfaces
For sloped or curved parts, ask for one more test. Place a tilted object under the laser and mark across the slope in a single pass. A dynamic focus system with a 3D galvanometer 7 will adjust focus continuously across the height change. A standard 2D system will show sharp marking at one end and fading at the other. If your products have curved surfaces — like some of the auto parts and hardware tools our customers mark — this test matters more than any spec sheet number.
Also run a red light preview while lightly tapping the table. The focal point should stay sharp and the marking sound should stay consistent under minor vibration. That combined check covers both focus stability and mechanical rigidity in one step.
Which Technical Specs Should I Ask My Supplier to Confirm These Features?
A purchasing manager from Turkey once emailed me a competitor's quotation and asked, "Stella, is this machine really what they say?" The one-page quote listed "CCD included" — and nothing else. That is exactly the problem.
Ask your supplier to confirm in writing: visual positioning accuracy and repeatability, camera resolution and mounting type, distance sensor model, motorized Z-axis travel range, allowable height tolerance for auto-focus, focus repeatability, and whether the software supports X/Y/theta correction and mark-on-the-fly.
The first rule from our own experience: check the spec sheet before anything else. If a feature is not printed in the specification document, treat it as absent. Verbal promises disappear after the deposit is paid.
The Spec Checklist to Send Your Supplier
Copy this table into your inquiry email and ask the supplier to fill in every row:
| Specification | What to Ask For | Red Flag Answer |
|---|---|---|
| Positioning accuracy | Exact number, e.g., ±0.02mm | "Very high precision" with no figure |
| Repeatability | Written tolerance under stated conditions | No repeatability data at all |
| Camera resolution | 5MP–20MP industrial camera, model listed | "HD camera" with no model |
| Camera mounting | Coaxial or side-mount, clearly stated | Not specified |
| Focus mechanism | Laser displacement sensor + motorized Z-axis | "One-key focus" only |
| Auto-focus range | Allowable height tolerance in mm | "Fits all heights" |
| Software functions | Template matching, X/Y/theta correction, focal length calibration | Screenshots refused |
| Motion marking | Mark-on-the-fly supported yes/no | Vague "supports conveyor" |
Why the Numbers Need Context
Be careful with the ±0.02mm figures that appear in many brochures. That number is real for some visual positioning systems, but it depends on calibration quality, lens choice, part surface, and mechanical stability. When our solution design engineers quote marking precision, we always state the test conditions. Ask your supplier to do the same. Also request the camera placement type in writing. A coaxial camera sees through the galvo scanner head and generally gives better recognition on small parts, while a side-mount camera covers a larger field but needs more careful distortion correction and focal length calibration.
Finally — and this comes directly from our contract practice — write every confirmed feature into the purchase contract. Spec sheets persuade; contracts protect.
Can I Verify Anti-Shake and Auto-Focus Performance Through a Sample Test?
There is a trade-off I always explain to buyers: a video demo is fast, but a sample test on your own parts is proof. We ship sample marks to customers in the UK, Germany, and the USA before most orders, precisely because trust in overseas suppliers is a real pain point.

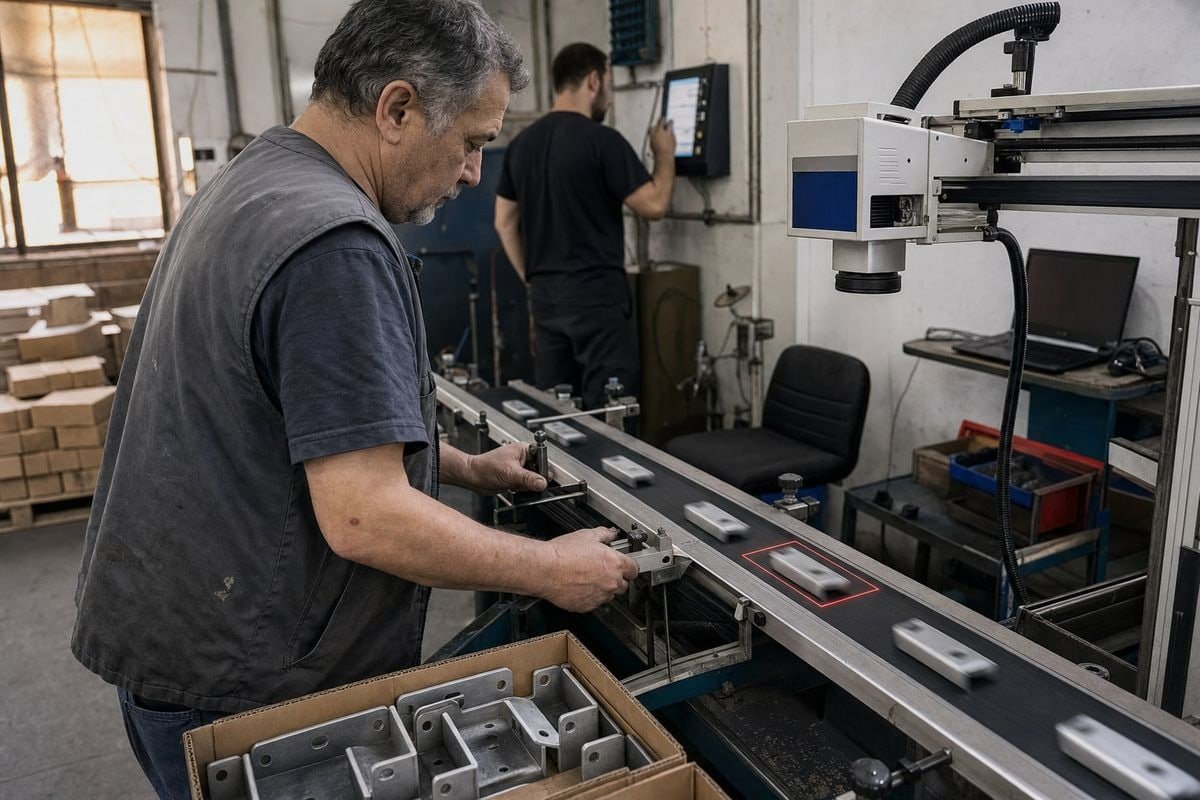

Yes. Send your actual parts to the supplier for a live sample test. Require marks on different thicknesses, marks on deliberately misplaced and moving parts, close-up video of the software workflow, and a contract clause stating that on-site sample acceptance determines final approval.
A sample test turns marketing claims into evidence. Here is how to structure one so it actually verifies both features rather than just producing a pretty logo.
Structure the Sample Test Around Both Features
| Test Item | What It Verifies | Pass Criteria |
|---|---|---|
| Parts placed at random positions and angles | Visual positioning compensation | Mark lands correctly every time |
| Part nudged during red-light preview | Active tracking / anti-shake | Preview box follows the part |
| Conveyor running at production speed | Mark-on-the-fly capability | No position drift across a batch |
| Three or more part thicknesses in sequence | Auto-focus and Z-axis response | Equal sharpness, no manual adjustment |
| Sloped or curved sample | Dynamic focus tracking | Consistent depth across the surface |
| Repeated batch of 50+ identical parts | Repeatability | Position variation within quoted tolerance |
Demand the Right Evidence Format
Ask for unedited video showing the full screen of the machine vision software: image capture, part recognition, alignment correction, Z-axis movement, and the finished mark — all in one continuous take. Edited clips can hide manual intervention between shots. When we record acceptance videos for our export customers, we film the software interface and the workpiece in the same frame for exactly this reason.
Then close the loop legally. Our standard practice, which I recommend regardless of which supplier you choose, is simple: write the anti-shake and auto-focus functions explicitly into the contract, and state that on-site trial marking of your samples is the acceptance standard. If the machine passes the sample test at the factory and again at your facility, you have verified the features twice — once before shipment and once before final payment. That structure also protects you against the delivery and authenticity risks that worry so many international buyers.
Conclusion
Do not ask "Does it have CCD?" Ask "Can it compensate and stay in focus?" Check the specs, test the software, mark varied thicknesses, shake the part, and seal it in the contract.
