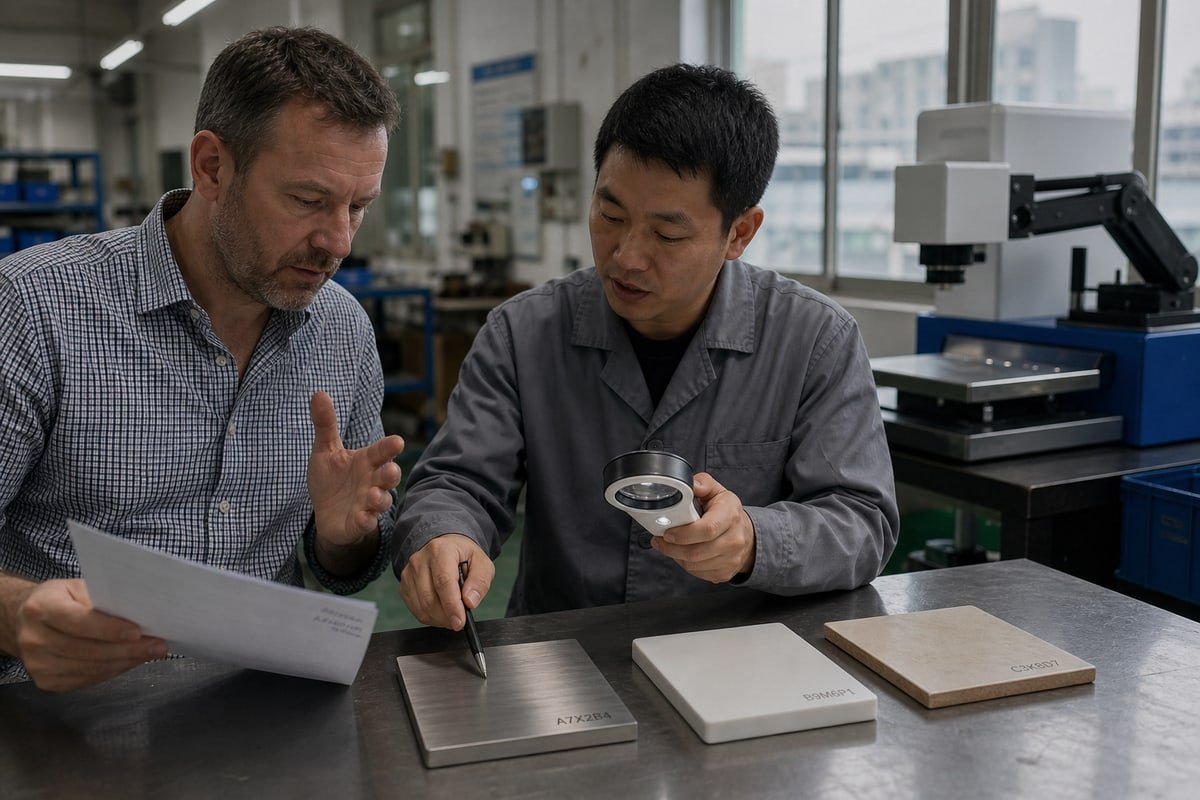

Evaluating CCD laser marking results from overseas suppliers is risky. At our Dongguan factory, we have seen buyers approve photos, receive machines, and then discover marks that fail their internal QA.

German buyers should evaluate CCD laser marking results using DIN-based abrasion and solvent tests, physical samples on metal, plastic, and ceramic, character-size and edge-tolerance checks, aging soak tests, and a supplier-provided inspection report — never photos or visual judgment alone.

That short answer covers the framework. Now let me walk you through each part in detail, based on how we actually run these evaluations for our German customers before any order ships.

What quality standards should I use to judge CCD laser marking results on different materials?

A purchasing manager from Stuttgart once told me his golden rule: "If the standard is not written down, the mark does not exist." Our engineers now build every sample report around that idea.

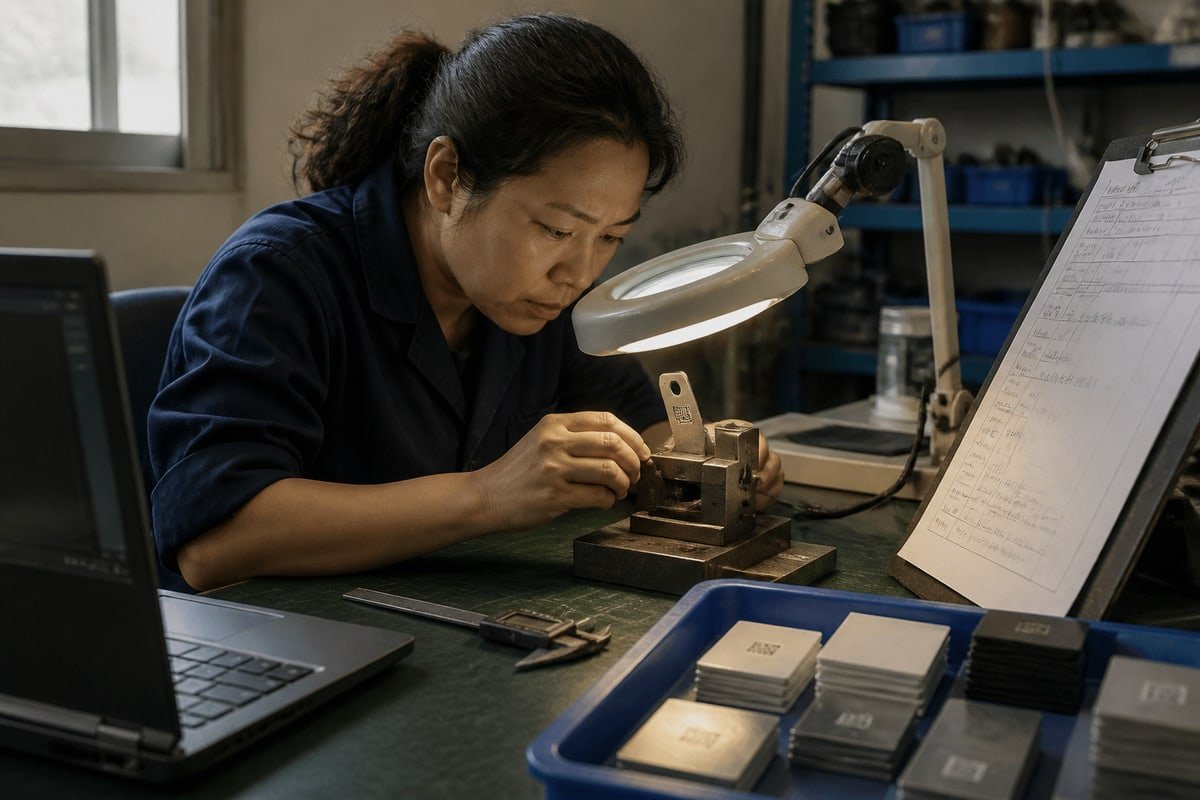

Judge CCD laser marking results against ISO/IEC 15415 for code grading, VDI/VDE 2632 for machine vision inspection, and DIN abrasion and solvent standards for durability. Add measurable criteria: contrast ratio, edge sharpness, positioning accuracy, and material-specific defect limits.

The first thing I explain to buyers is the difference between the mark and the inspection layer. The CCD system does not create the mark. It locates parts, aligns the laser, and verifies the result afterward. So you actually need two sets of standards: one for the mark itself, and one for the machine vision inspection that checks it.

Standards for the mark itself

For any serialized mark or Data Matrix code, ISO/IEC 15415 ¹ is the baseline. It grades printed 2D codes on contrast, modulation, and damage. A code that looks fine to your eye can still grade poorly and fail scanners on your customer's line. That is why Data Matrix code verification with a calibrated scanner matters as much as appearance. ISO/IEC 16022 defines the Data Matrix symbology ² itself, so both standards belong in your acceptance criteria.

For durability, we follow the personal rule we apply on every German order: run abrasion and solvent resistance tests according to DIN standards. German automotive and medical buyers expect this, and it removes arguments later.

Standards for the inspection layer

Germany has its own machine vision quality framework ³: VDI/VDE 2632. It defines how automated optical inspection systems should be specified, tested, and accepted. If your supplier's visual positioning system cannot be described in VDI/VDE 2632 terms, ask why.

Define pass/fail limits for contrast, code grade, depth, and defect rate in writing before you order. Do not accept "it looks fine" as a criterion.

How can I test marking precision and durability before finalizing my order from China?

Before we ship any CCD laser marking machine to Germany, our team runs a fixed pre-shipment routine. It grew out of one painful lesson: a plastic sample that passed visually but faded after six months in a workshop.

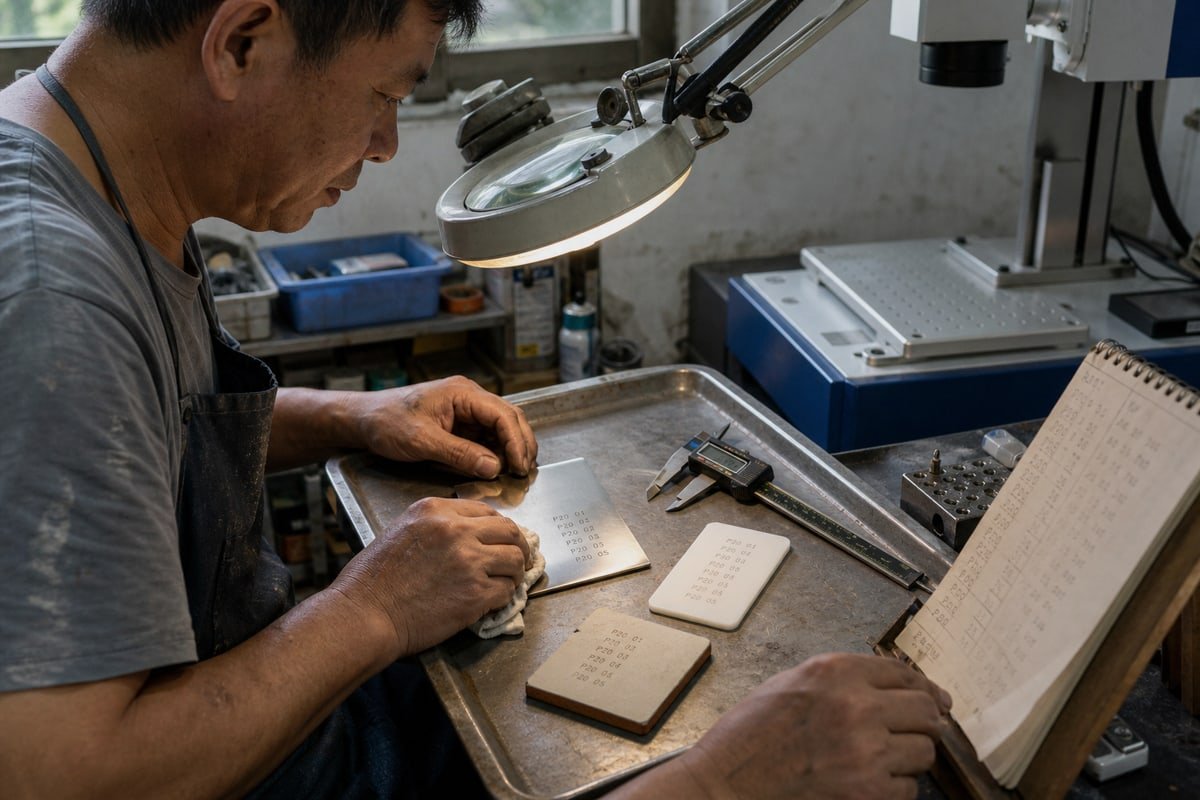

Test precision by measuring character dimensions and edge tolerances under magnification on physical samples of your exact materials. Test durability with DIN-based rub, solvent, and aging soak tests. Require the supplier to ship sample plates plus a written inspection report before payment.

Here is the exact workflow I recommend, and the one we follow at our factory for every German order. It turns a vague "does it work?" question into a documented, repeatable process.

The five-step pre-order test protocol

1. Send your real production materials. Not similar materials — your exact stainless steel grade, your ABS resin, your glazed ceramic. Surface finish quality changes marking behavior dramatically. Anodized aluminum and raw aluminum behave like different metals.
2. Request a parameter matrix, not one setting. We mark test grids at varied power, speed, and frequency. One universal parameter set never works equally across metal, plastic, and ceramic, whatever any vendor claims.
3. Verify precision. Measure character height, line width, and edge contour under a microscope. Check them against agreed tolerances. Our engineers document positioning accuracy of the CCD visual positioning system by marking repeated batches and measuring placement deviation.

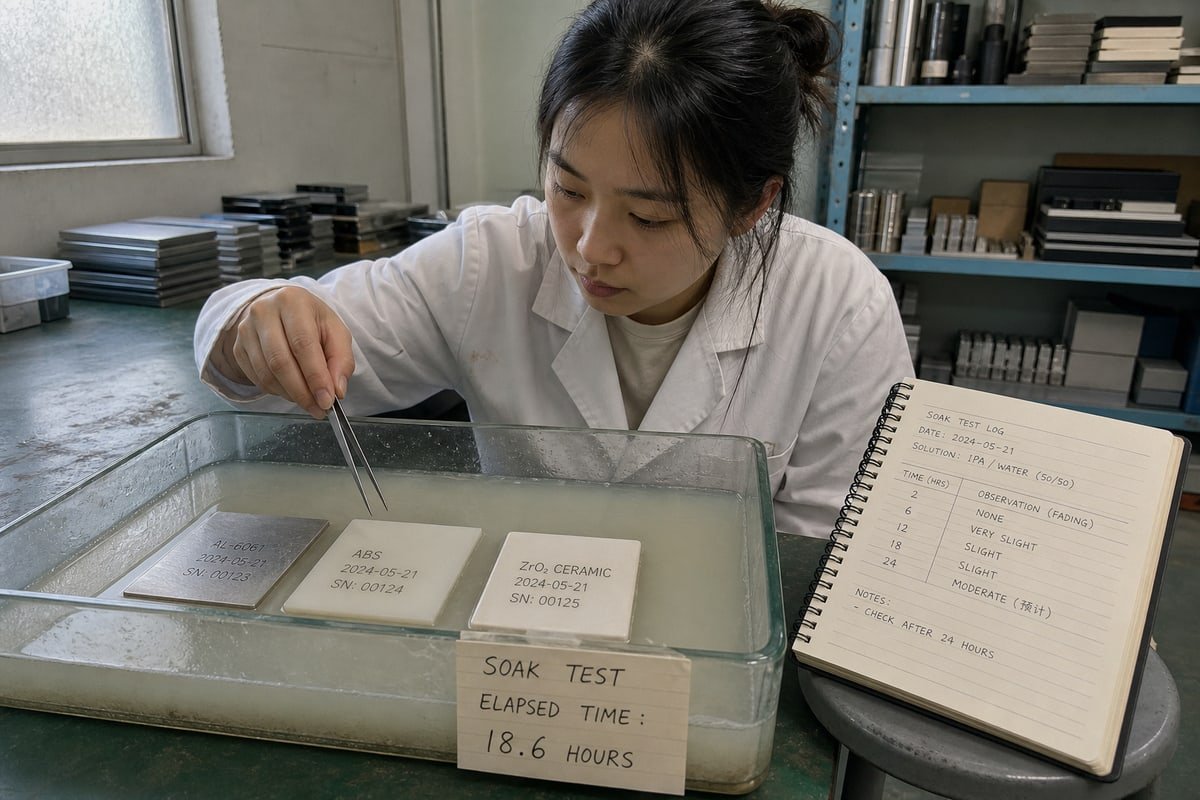

4. Run durability tests. DIN-based abrasion and solvent resistance tests come first. Then an aging soak test: we immerse marked samples and confirm the mark does not fade or lift over the long term. This catches the "looks fine today, gone in a year" failure mode.
5. Keep retained samples and demand a report. We mark metal, plastic, and ceramic samples separately, keep one set at the factory, and ship a matching set with a full inspection report to the buyer. Both sides then hold identical physical evidence.

Some buyers push back and say experienced eyes are enough. I disagree, respectfully. Naked-eye checks cannot prove repeatability across a 50,000-piece run, and they leave nothing to show an auditor. Quantitative testing costs a week up front and saves months of disputes later.

Which certifications matter most to German buyers when evaluating a CCD laser marking machine?

The trade-off I weigh most often on German quotations is documentation depth versus lead time. Preparing a full compliance package takes longer, but in our export experience to Germany, orders without it simply stall.

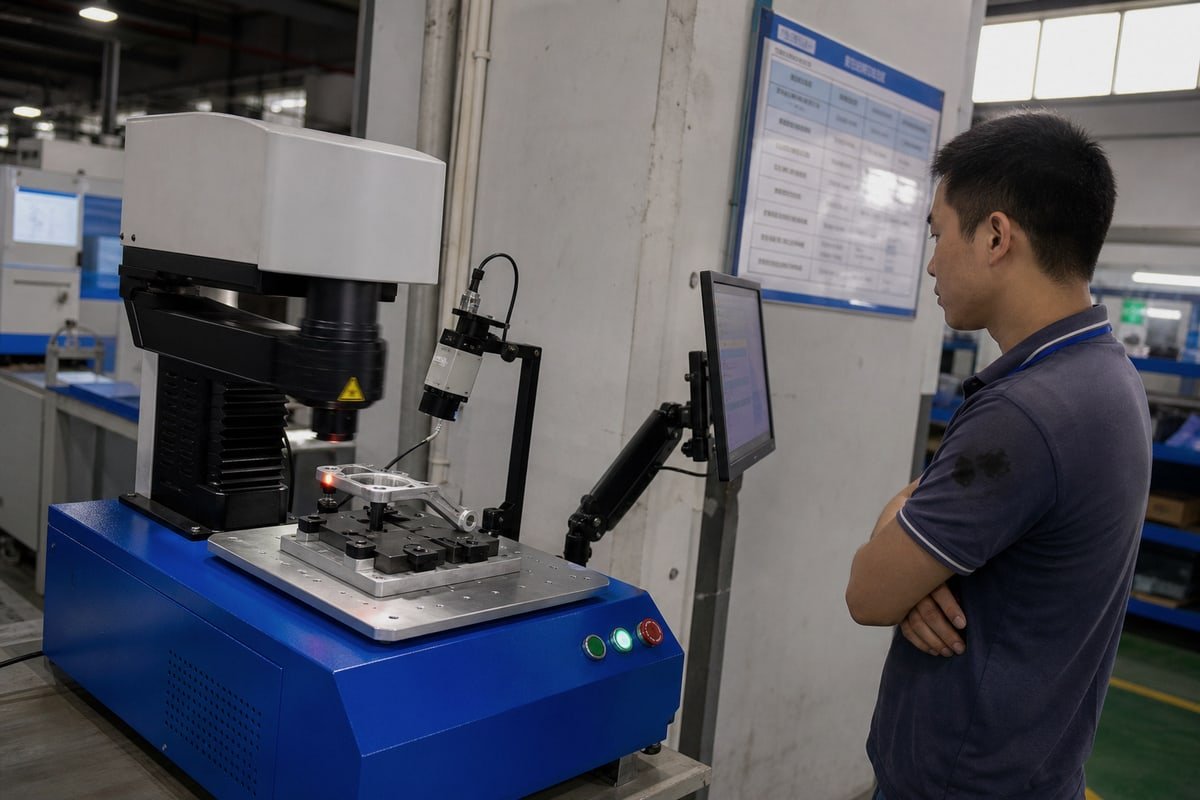

German buyers should prioritize CE marking, ISO/IEC 15415 code-grading capability, VDI/VDE 2632 conformity for the vision system, GS1 and UDI traceability support, OPC UA connectivity for Industry 4.0 integration, and BSI-aligned data security for logged inspection data.

Certifications for a CCD laser marking machine fall into three groups, and German buyers weight them differently depending on their industry. Let me break them down the way our solution engineers present them during technical calls.

Machine safety and market access

CE marking is non-negotiable for the EU. It covers the machinery directive, low-voltage requirements, and electromagnetic compatibility. Laser safety classification also matters: German workplaces require proper enclosure class documentation. Ask for the actual technical file, not just a logo on a brochure.

Traceability and application compliance

If your parts feed automotive, medical, or electronics supply chains, the mark carries legal weight. Medical device buyers need UDI-compliant marks under the EU MDR. Packaging and logistics buyers need GS1-compliant codes. The machine itself is not "MDR certified" — but it must reliably produce marks that pass ISO/IEC 15415 grading so your parts meet those traceability requirements. That distinction confuses many first-time buyers.

Industry 4.0 and data integrity

This group is growing fastest. German plants increasingly require OPC UA ⁴ interoperability so the marking station talks to MES and ERP systems using standardized protocols. And because the CCD system logs inspection images and results, BSI-aligned data security and integrity practices matter for the digital audit trail.

What common defects should I watch for when comparing marking samples on metal, plastic, and ceramic?

Last year a German engineer sent back our first ceramic samples with microscope photos attached. He had found edge chipping we missed at low magnification. That exchange upgraded our entire sample inspection process.

Watch for burrs, spatter, and inconsistent oxidation color on metal; melting, foaming, warping, and gloss change on plastic; microcracks, chipping, and weak contrast on ceramic. Inspect all samples under magnification and controlled lighting, and check the heat-affected zone on every material.

Each material fails in its own way, because the laser interacts with each substrate differently. Metal marks come from annealing, engraving, or color change. Plastics mark through carbonization or controlled foaming. Ceramics respond with surface modification that can stress the brittle structure. So you need three separate defect checklists, not one.

Material-by-material defect guide

The hidden trade-off: contrast versus damage

Here is an objection I hear often: "Just give me the highest-contrast mark." I push back on this, because the process that maximizes contrast often increases thermal stress. On stainless steel, aggressive parameters create a darker mark but a larger heat-affected zone, which can reduce corrosion resistance. On ceramic, the strongest visual mark may hide microcracks that only show under magnification. The best-looking sample is not always the safest one for your part.

Speed creates a similar trade-off. Faster cycles cut production cost, but some materials need slower or multiple passes for a durable result. For total cost of ownership, a slightly slower, verified mark usually beats a fast mark that fails inspection.

How to inspect samples properly

Use contrast ratio measurement or image analysis rather than eyeballing. Check samples under the same lighting your production line uses. Use a microscope for burrs, microcracks, and edge damage. Then let the machine vision inspection layer confirm geometry and placement, since automated optical inspection catches positional drift that humans miss across batches. Finally, compare against the retained sample set from your supplier — this is exactly why we ship matching sample plates with every inspection report.

Conclusion

Evaluate CCD laser marking results with DIN durability tests, physical samples on all three materials, measured tolerances, aging soak tests, and a documented inspection report — never trust photos alone.
