A buyer once asked me if our CCD laser marking machine could talk to his Siemens PLC. He had bought a marker before that could not, and it stalled his entire line for weeks. That painful lesson is exactly why our engineering team in Dongguan designs every system with integration in mind from day one.

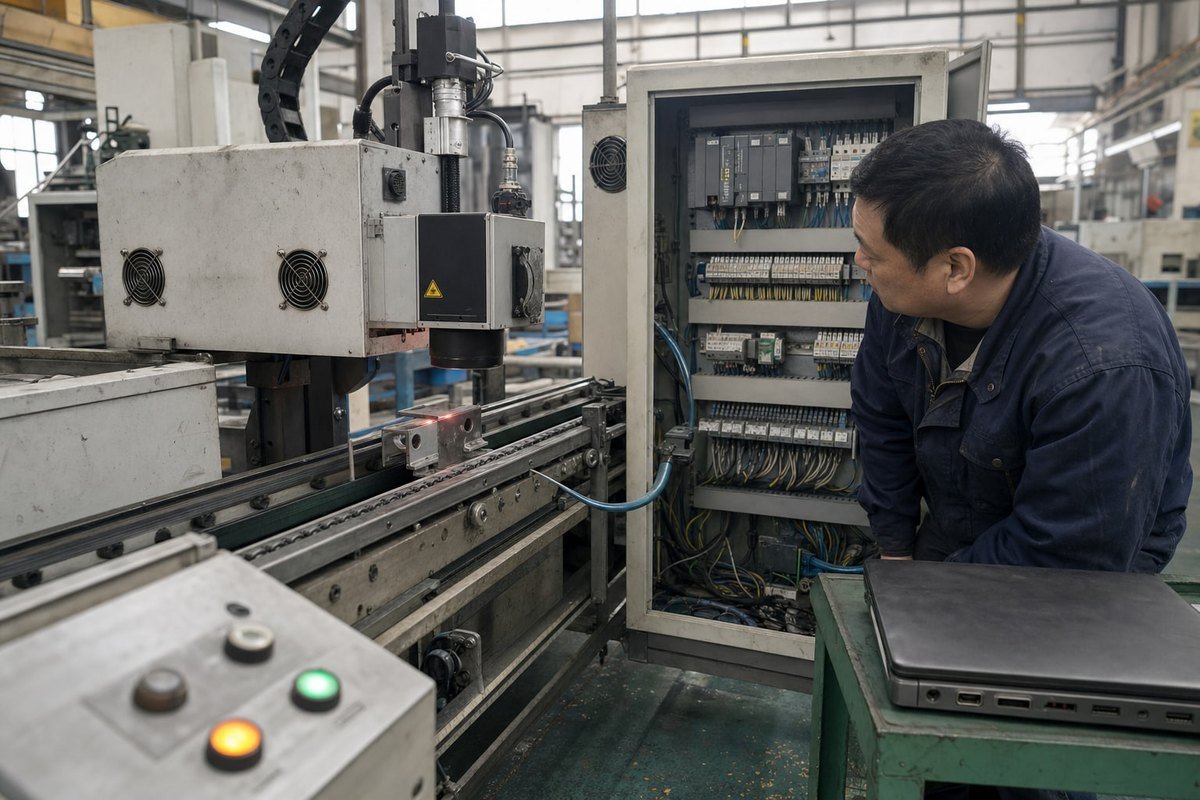

Yes, a CCD laser marking machine can integrate with PLC and SCADA systems. Integration happens through the laser controller using discrete I/O handshaking, industrial Ethernet protocols like Modbus TCP/IP or PROFINET, and network ports that send status, alarms, and traceability data to SCADA layers.
The real question is not whether integration is possible. It is how deep the integration goes, and what your machine must support to make it work. Let me walk you through each layer, from communication protocols to real-time data exchange.
What Communication Protocols Does My CCD Laser Marking Machine Support for PLC Integration?
During a recent commissioning project for an auto parts customer in Turkey, our solution design engineers spent two full days just mapping handshake signals. Protocol choice decided everything about that timeline.

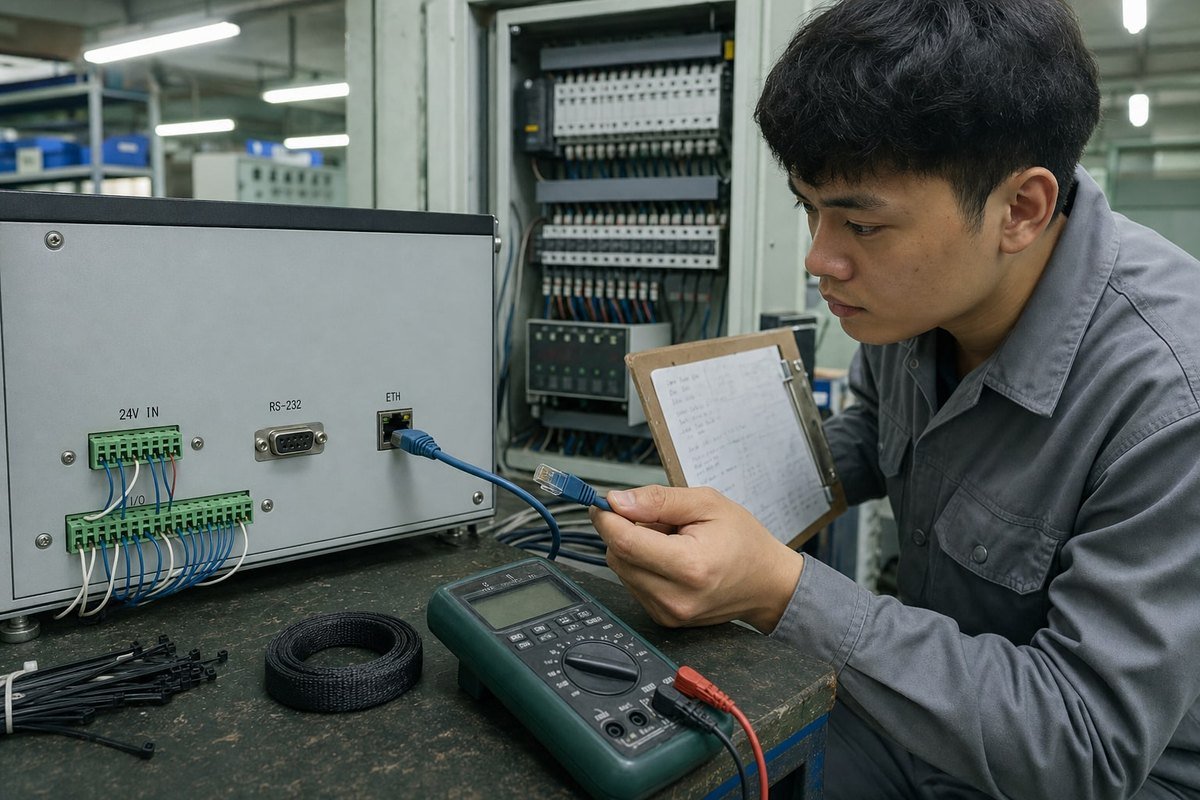

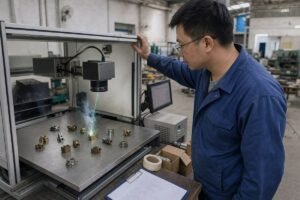

A CCD laser marking machine typically supports discrete 24V digital I/O for basic handshaking, plus industrial communication protocols such as Modbus TCP/IP, PROFINET, EtherNet/IP, and RS-232 serial. The laser usually operates as a slave device, receiving commands from the PLC master.
Protocols exist on a spectrum, from simple to sophisticated. The right choice depends on your line speed, your data needs, and the PLC brand already installed in your factory. Here is how the common options compare.
Comparing the Main Protocol Options
| Protocol | Type | Best For | Typical Response |
|---|---|---|---|
| Discrete 24V I/O | Hardwired signals | Start/stop, ready, fault | Milliseconds |
| RS-232 / RS-485 | Serial | Legacy equipment, simple text data | 10–100 ms |
| Modbus TCP/IP 1 | Industrial Ethernet | Recipe selection, registers, status words | 1–10 ms |
| PROFINET | Industrial Ethernet | Siemens PLC environments | 1–10 ms |
| EtherNet/IP | Industrial Ethernet | Allen-Bradley PLC environments | 1–10 ms |
| OPC UA 2 | Platform-independent | SCADA, MES, cloud connectivity | Varies by load |
Discrete I/O is the workhorse. Signals like part present, mark start, laser busy, mark complete, and fault cover most basic automation needs. Almost every industrial laser controller exposes these signals. If your line only needs the PLC to say "mark now" and hear back "done," discrete I/O is enough.
Industrial Ethernet unlocks more. With Modbus TCP/IP or PROFINET, the PLC can select job templates by ID, push variable text like serial numbers, and read detailed status registers. This matters for high-mix production, where the line switches between products without operator input.
One caveat I always share with buyers: not every marker is protocol-ready out of the box. Some laser control boards need an external-command mode enabled laser control systems 3, or custom ladder logic on the PLC side. Before you buy, confirm the exact communication interface in writing. Ask the supplier which protocols are native, which need an add-on module, and which require SDK and API integration work on a connected PC. We list this on our quotation sheets precisely because vague answers here cause the most disputes later.
How Do I Connect My CCD Laser Marking Machine to an Existing SCADA System?
One trade-off we weigh constantly in our Dongguan workshop is where the SCADA connection should live: on the marking PC, on the PLC, or on both. Each path changes the wiring, the software, and the risk.

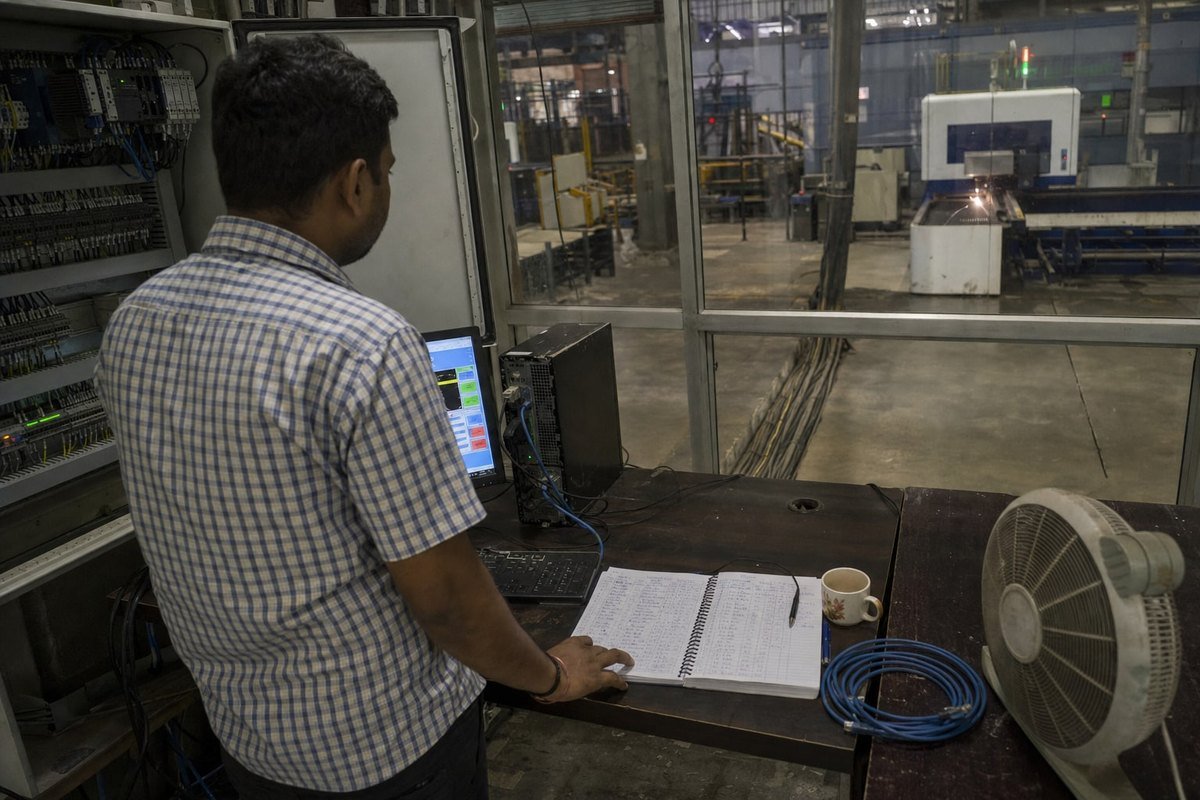

Connect the CCD laser marking machine to SCADA through its network port, using OPC UA, Modbus TCP/IP, or a database link. SCADA collects machine status, alarms, job counts, and traceability data, while actual marking execution stays local or under PLC control.
SCADA sits one level above the marking machine. It does not fire the laser. It watches, logs, and alerts. Understanding this division of labor prevents most integration mistakes I see in the field.
The Three Common Connection Architectures
- Via the PLC. The laser talks to the PLC, and the PLC talks to SCADA. This is the most robust path. The PLC already handles alarms and interlocks, so SCADA simply reads its tags. No extra software runs on the marking PC.
- Direct network connection. The marking software exposes data through OPC UA, Modbus TCP/IP registers, or a TCP socket. SCADA polls the machine directly. This gives richer data, like exact job names and vision offsets, but depends on the marking software's capabilities.
- Database or file exchange. The marking PC writes results to a shared database or log file, and SCADA imports them. This is common for traceability and serialization records, where a few seconds of delay is acceptable.
What Data Should SCADA Collect?
| Data Category | Examples | Business Value |
|---|---|---|
| Machine status | Running, idle, fault, laser ready | Uptime tracking, OEE |
| Production counts | Parts marked, pass/fail totals | Output reporting |
| Traceability | Serial numbers, timestamps, batch IDs | Recalls, audits, compliance |
| Alarms | Lens error, vision fail, laser overtemp | Fast maintenance response |
| Quality | CCD verification results 4 | Reject analysis |
In our experience exporting to markets like Germany and the USA, buyers increasingly ask for Industry 4.0 connectivity 5 as a hard requirement, not a nice-to-have. Modern plants also push toward MQTT-based publishing, where the marker broadcasts its state to the whole plant ecosystem. If your SCADA roadmap includes cloud dashboards, ask whether the marking software supports OPC UA. It saves you from writing custom PLC drivers later, and it keeps the HMI control interface on the machine independent from the plant-level monitoring layer.
Can I Achieve Real-Time Data Exchange Between My CCD Laser Marking Machine and Automation Line?
A Vietnamese electronics customer once pushed us hard on cycle time. His conveyor never stopped, and every part landed in a slightly different position. That project taught our team what real-time truly demands.

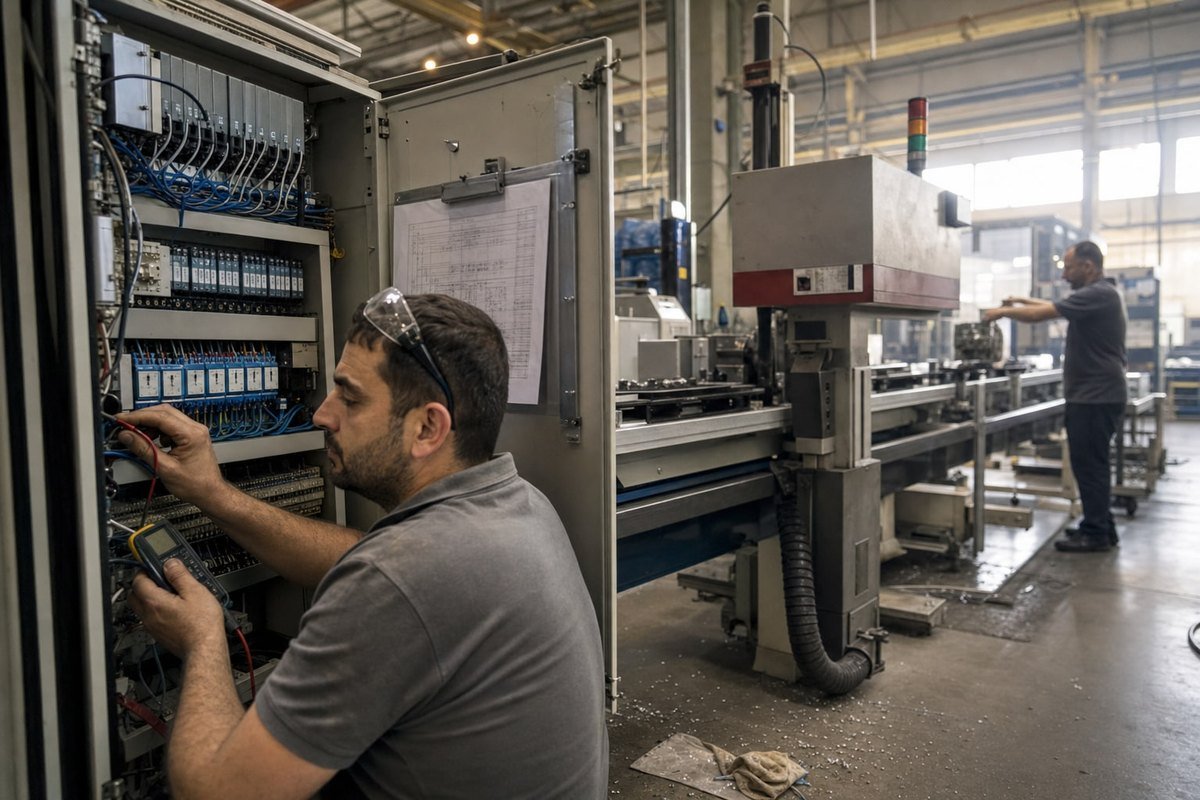

Yes, real-time data exchange is achievable. Industrial Ethernet handshakes complete in roughly 1–10 milliseconds, the CCD camera transmits coordinate offsets to the laser controller for vision-guided alignment, and encoder feedback synchronizes mark-on-the-fly operation with moving conveyors.
Real-time means different things at different layers. Let me break the timing chain into its actual parts, because this is where buyers most often overestimate or underestimate what they need.
The Real-Time Chain, Step by Step
First, the sensor or PLC detects a part. Second, the CCD camera captures an image and calculates the position offset. This is the machine vision inspection 6 step, and it usually takes tens to a few hundred milliseconds depending on resolution and lighting. Third, the controller applies the offset and fires the laser. Fourth, the machine reports mark complete back to the PLC.
The camera step is the slowest link. That is why our engineers tune lighting, exposure, and template matching carefully during commissioning. A poorly lit part can double the vision cycle time. For very high-speed lines, some newer systems process pattern recognition at the edge, inside the vision module itself, which avoids network latency entirely.
Static Marking vs. Mark-on-the-Fly
Static marking stops the part, marks it, then releases it. It is simpler and more precise. Mark-on-the-fly uses an encoder on the conveyor. The controller reads encoder pulses in real time and shifts the marking field to follow the moving part. This needs tight coordination between the PLC, the encoder, and the laser controller, but it eliminates stop-start cycles and lifts throughput significantly.
Real-time data acquisition also flows upward. Each marked serial number, its timestamp, and its CCD verification result can stream to the PLC or a database within the same cycle. Closed-loop verification takes this further: the camera inspects the mark right after execution and sends a pass/fail bit to the PLC, which then diverts rejects automatically. When we design automated production line integration for battery or PCB customers, this reject-handling loop is usually the feature that pays for itself fastest.
What Technical Support Do I Need When Integrating My CCD Laser Marking Machine into My Factory Network?
The hardest support ticket I remember involved software, not hardware. A customer upgraded his factory PCs, and his old marking software refused to run. Since then, our pre-sales checklist has grown much longer.

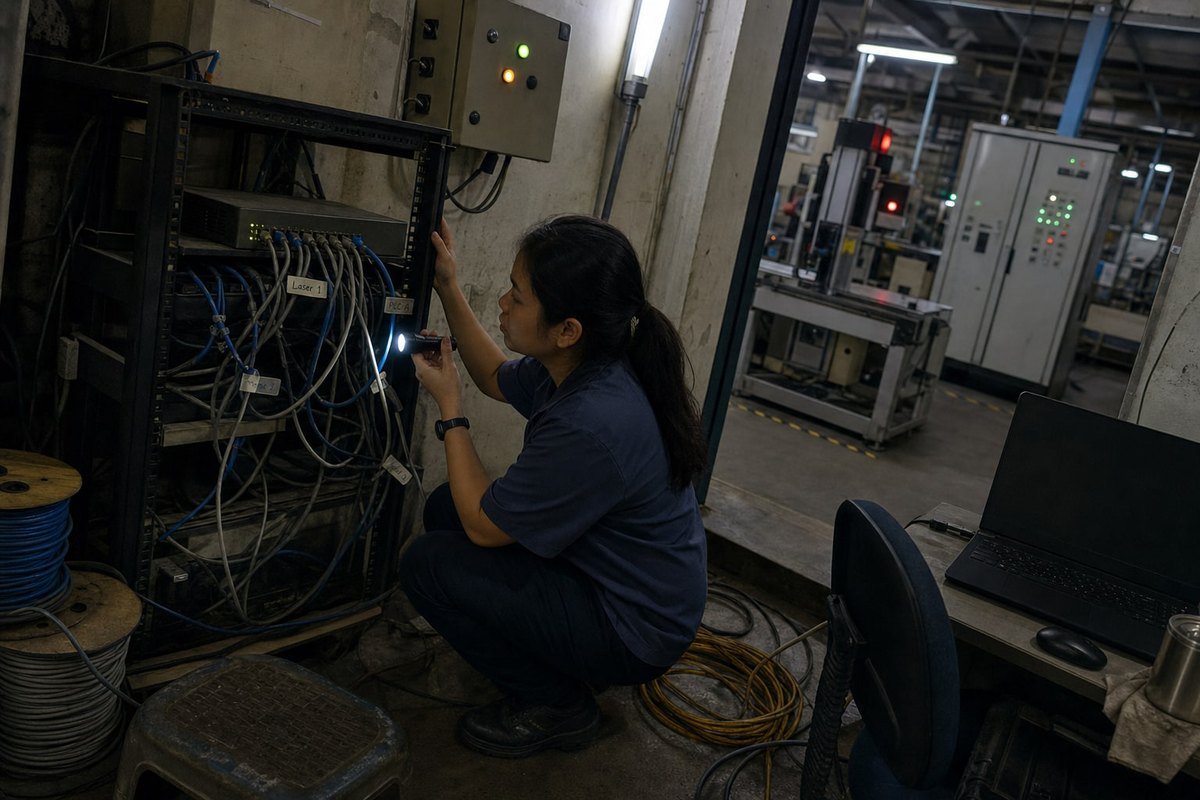

You need supplier support covering software compatibility with your operating system, DXF/DWG/CAD file import, CCD auto-positioning from CAD drawings, documented communication interfaces, complete installation packages, remote commissioning assistance, and SDK documentation if custom integration with MES or SCADA is planned.
Integration succeeds or fails on preparation. Over years of shipping systems to the UK, Italy, South Korea, and beyond, I have distilled our support requirements into a practical checklist. Verify every item before payment, not after delivery.
The Pre-Purchase Integration Checklist
| Checklist Item | Why It Matters | What to Ask For |
|---|---|---|
| DXF/DWG/CAD vector file import | Your existing drawings must load directly into the marking software | A screen recording showing your actual file imported |
| OS compatibility | Marking software must run on your current computer systems | Confirmed support for your Windows version |
| CCD loads CAD for auto-positioning | The vision system should locate workpieces automatically against the CAD outline | A demo video with a part similar to yours |
| Communication interface confirmation | I/O, Modbus TCP/IP, PROFINET, or serial must match your PLC | A signal list and protocol document in writing |
| Full installation package | You must be able to reinstall software after PC failure | The installer files, drivers, and license method |
Beyond the checklist, three support areas deserve attention.
Documentation. Demand the I/O wiring diagram, the register map for Ethernet communication 7, and the vision calibration procedure. Without these, your integrator works blind.
Remote commissioning. Good suppliers join video calls during PLC handshake testing. Our solution design engineers regularly debug ladder logic timing with customer teams over WhatsApp and remote desktop. Time zones matter less than responsiveness.
Custom development. If your MES needs to push serial numbers into the marker, ask whether the software offers a TCP command set or an SDK. SDK and API integration is where proprietary systems show their limits, so get sample code and protocol specs upfront. A supplier who provides the installation package, the manuals, and the interface documents without hesitation is a supplier who expects the integration to work.
Conclusion
A CCD laser marking machine does integrate with PLC and SCADA systems, through I/O, industrial Ethernet, and network data links. Verify protocols, software compatibility, and support before buying, and integration becomes routine.
